26.5 GHz to 40 GHz WR28 Standard Gain Horn Antennas

Check out our new RF calculators & conversion tools...

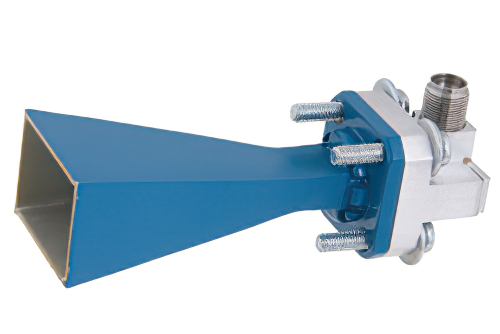

WR-28 Waveguide Standard Gain Horn Antenna Operating From 26.5 GHz to 40 GHz With a Nominal 15 dB Gain 2.92mm Female Input

Product ID: PE9850/2F-15
WR-28 Waveguide Standard Gain Horn Antenna Operating From 26.5 GHz to 40 GHz With a Nominal 15 dB Gain 2.92mm Female Input

Image Views:  WR-28 Waveguide Standard Gain Horn Antenna Operating From 26.5 GHz to 40 GHz With a Nominal 15 dB Gain 2.92mm Female Input high resolution
Zoom


Click for:PE9850/2F-15 Datasheet
Available Quantity: 32
Pricing Table
QUANTITYPRICE
1-4$1,583.12
5-9$1,472.30
10-24$1,361.48
25-49$1,266.50
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-28
Gain Min15
Beam Width, 3dB V31.3
Beam Width, 3dB H32.1
Frequency, Min26.5 GHz
Frequency, Max40 GHz


WR-28 Standard Gain Horn Antenna Operating From 26.5 GHz to 40 GHz With a Nominal 15 dB Gain 2.92mm Female Input Connector

PE9850/2F-15 standard gain horn antenna (also known as a waveguide horn antenna) is part of our huge selection of waveguide antennas. Pasternack standard gain horn antenna is manufactured with a WR-28 input and a waveguide to coaxial transition adapter. Our WR-28 standard gain horn antenna has a waveguide to coax adapter transition with a 2.92mm connector input that is female gender.

WR-28 standard gain horn waveguide antenna with 2.92mm input has a minimum frequency of 26.5 GHz and a maximum frequency of 40 GHz. Pasternack PE9850/2F-15 WR-28 waveguide horn standard gain antenna is rated at a nominal 15 dB gain. Our 15 dB standard gain horn WR-28 waveguide antenna with 2.92mm adapter has a vertical beam width of 31.3 and horizontal of 32.1 degrees at 3 dB.

Pasternack is where to buy a WR-28 standard waveguide gain horn antenna with WR-28 input. This gain horn antenna is just one part of over 40,000 RF, microwave and millimeter wave guide components available and in-stock at our Irvine, CA United States warehouse. Our WR-28 standard waveguide horn antenna with 2.92mm female interface can ship worldwide the same day that it is purchased as with our other available RF parts.
