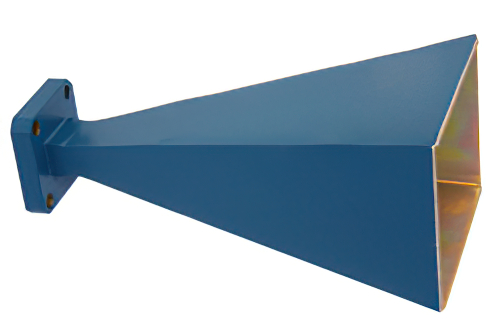

WR-34 Waveguide Standard Gain Horn Antenna Operating From 22 GHz to 33 GHz With a Nominal 20 dBi Gain With UG-1530/U Square Cover Flange
Product ID:
PE9851-20
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-34 |
| Gain Min | 20 |
| Flange Size | Square Cover |
| Frequency, Min | 22 GHz |
| Frequency, Max | 33 GHz |
| Beam Width V | 17.4 |
| Beam Width H | 17 |
Description
WR-34 Standard Gain Horn Antenna Operating From 22 GHz to 33 GHz With a Nominal 20 dB Gain With Square Cover Flange
PE9851-20 WR-34 standard gain horn antenna is also known as a waveguide horn. This WR-34 standard gain horn antenna has a 20 dB nominal gain and a square cover flange. Our 20 dB WR-34 horn antenna has a minimum frequency of 22 GHz and a maximum frequency of 33 GHz.
WR-34 standard gain horn waveguide antenna PE9851-20 has a vertical beam width of 17.4 and horizontal of 17 degrees at 3 dB. This WR-34 standard gain horn antenna with 20 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-34 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
