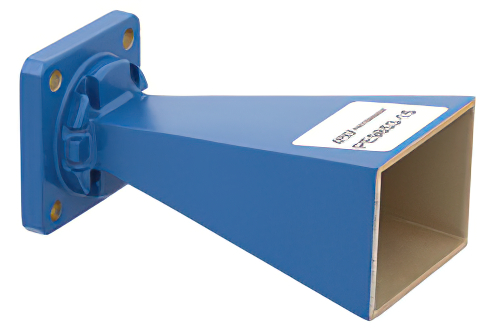

WR-51 Waveguide Standard Gain Horn Antenna Operating From 15 GHz to 22 GHz With a Nominal 15 dBi Gain With Square Cover Flange
Product ID:
PE9853-15
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-51 |
| Gain Min | 15 |
| Flange Size | Square Cover |
| Frequency, Min | 15 GHz |
| Frequency, Max | 22 GHz |
| Beam Width V | 31.8 |
| Beam Width H | 32 |
Description
WR-51 Standard Gain Horn Antenna Operating From 15 GHz to 22 GHz With a Nominal 15 dB Gain With Square Cover Flange
PE9853-15 WR-51 standard gain horn antenna is also known as a waveguide horn. This WR-51 standard gain horn antenna has a 15 dB nominal gain and a square cover flange. Our 15 dB WR-51 horn antenna has a minimum frequency of 15 GHz and a maximum frequency of 22 GHz.
WR-51 standard gain horn waveguide antenna PE9853-15 has a vertical beam width of 31.8 and horizontal of 32 degrees at 3 dB. This WR-51 standard gain horn antenna with 15 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-51 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
