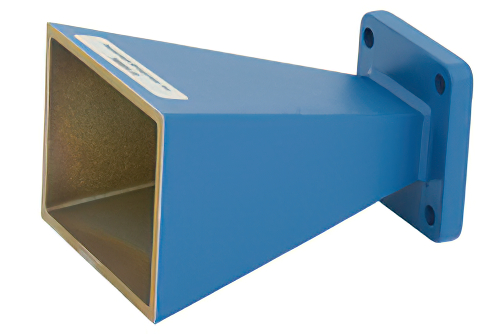

WR-62 Waveguide Standard Gain Horn Antenna Operating From 12.4 GHz to 18 GHz With a Nominal 15 dBi Gain With Square Cover Flange
Product ID:
PE9854-15
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-62 |
| Gain Min | 15 |
| Flange Size | Square Cover |
| Frequency, Min | 12.4 GHz |
| Frequency, Max | 18 GHz |
| Beam Width V | 31.2 |
| Beam Width H | 30.1 |
Description
WR-62 Standard Gain Horn Antenna Operating From 12.4 GHz to 18 GHz With a Nominal 15 dB Gain With Square Cover Flange
PE9854-15 WR-62 standard gain horn antenna is also known as a waveguide horn. This WR-62 standard gain horn antenna has a 15 dB nominal gain and a square cover flange. Our 15 dB WR-62 horn antenna has a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz.
WR-62 standard gain horn waveguide antenna PE9854-15 has a vertical beam width of 31.2 and horizontal of 30.1 degrees at 3 dB. This WR-62 standard gain horn antenna with 15 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-62 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
