WR-75 Waveguide Standard Gain Horn Antenna Operating from 10 GHz to 15 GHz with a Nominal 10 dBi Gain with Square Cover Flange
Product ID:
PE9855-10
Key Specifications
| Key Specifications (Click on Data Sheet Above for Additional Details). |
| Waveguide Size | WR-75 |
| Gain Min | 10 |
| Flange Size | Square Cover |
| Frequency, Min | 10 GHz |
| Frequency, Max | 15 GHz |
| Beam Width V | 49.2 |
| Beam Width H | 50.2 |
Description
WR-75 Standard Gain Horn Antenna Operating From 10 GHz to 15 GHz With a Nominal 10 dB Gain With Square Cover Flange

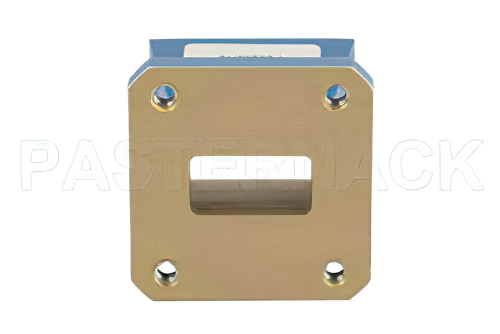

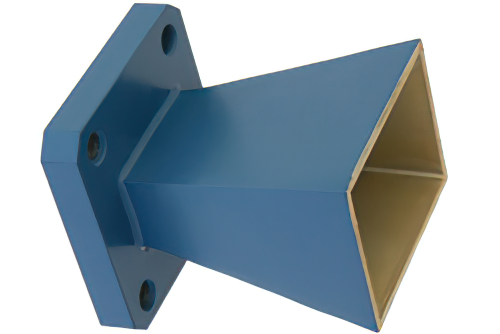

PE9855-10 WR-75 standard gain horn antenna is also known as a waveguide horn. This WR-75 standard gain horn antenna has a 10 dB nominal gain and a square cover flange. Our 10 dB WR-75 horn antenna has a minimum frequency of 10 GHz and a maximum frequency of 15 GHz.
WR-75 standard gain horn waveguide antenna PE9855-10 has a vertical beam width of 49.2 and horizontal of 50.2 degrees at 3 dB. This WR-75 standard gain horn antenna with 10 dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-75 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
