RF Angled PCB Connectors

RF Angled PCB Connectors

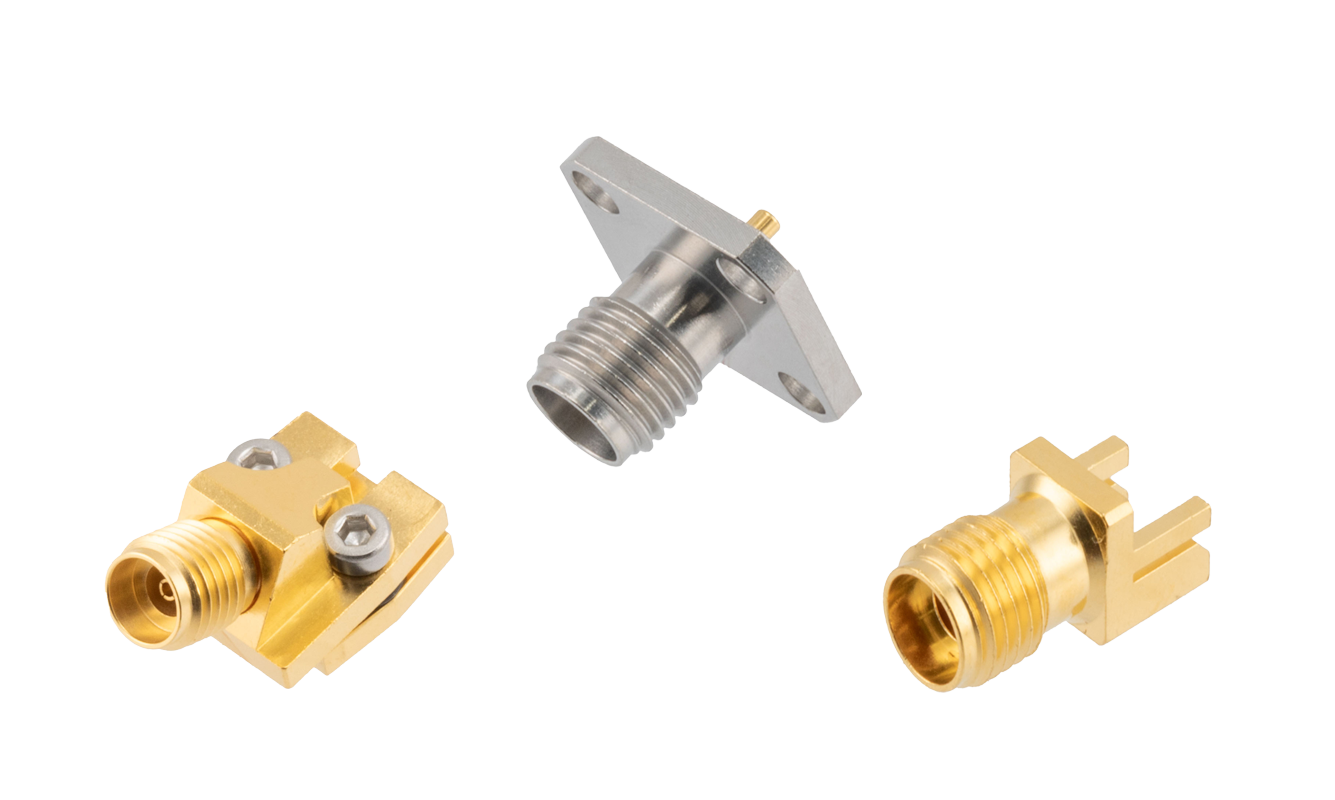

Pasternack’s RF angled PCB connectors offer a versatile solution for RF applications, available in 1.85mm, 2.4mm, and 2.92mm series. Designed to expand your PCB and panel connector options, these connectors are perfect for use in military defense, test and measurement, and other high-frequency environments.

Optimized Signal Access for Space-Constrained Designs

Availability

Pasternack’s RF angled PCB connectors are in-stock and ready to ship with no minimum order quantities.

Streamlined Prototyping

The angled design of these connectors simplifies prototyping by providing easy access to RF signals.

Efficient Signal Tapping

These connectors improve the efficiency of testing and diagnostics in complex RF environments.

RF Angled PCB Connectors Features

Industry-Standard Compliance

Compatible with industry-standard interfaces, ensuring seamless integration with existing RF systems and applications.

Compact Form Factor

These connectors are ideal for space-constrained designs where every millimeter counts.

High-Frequency Performance

Supports a wide frequency range from DC to 67 GHz, providing reliable performance for high-frequency applications.

Robust Construction for Durability

Built with durable materials to withstand the demands of military and industrial environments.

Featured RF Angled PCB Connectors

2.92mm Female PCB Mount with Tab Contact 40GHz VSWR1.2, 0.0197 Inches End Launch PCB Connector

Shop Now

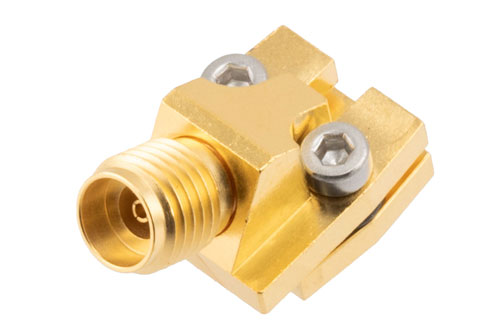

2.92mm Female Connector 30 Degree Angle Solderless PCB Mount 2 Hole 40GHz VSWR 1.25, Through Hole

Shop Now

2.92mm Female 4 hole SQ 0.5 Inches with Round Contact 40GHz VSWR1.2, 0.050 Inches Diameter Pin and 0.118 Inches Pin Length

Shop Now

2.4mm Female PCB Mount with Round Contact 50GHz VSWR1.25, 0.210 Inches Hole Space with 0.059 Inches Hole Diameter, Through Hole

Shop Now
