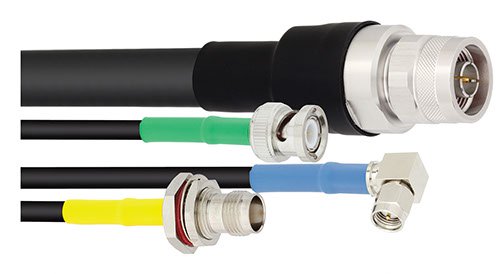

Our cable assemblies in 50 Ohm can be ordered using 1.0/2.3, 1.0mm, 1.85mm, 1.85mm NMD, 10-32, 2.2-5, 2.4mm, 2.4mm NMD, 2.92mm, 2.92mm NMD, 3.5mm, 3.5mm NMD, 4.1/9.5 mini DIN, 4.3-10, 7/16 DIN, BMA, BNC, Banana, C, D-Subminiature, double Banana, FAKRA, FME, GR874, HMCX32 1.2, HN, LC, MC-Card, MCX, MHV, MMBX, MMCX, mini SMP, mini UHF, N, NEX10, NMO Mount, QMA, QN, SC, SHV, SMA, SMB, SMC, SMP, SSMA, SSMB, SSMC, straight cut lead, TNC, trimmed lead, UHF, UMCX, UMCX 2.1, UMCX 2.5, unterminated lead, and WMCX 1.6 connector types. 75 Ohm RF cable assemblies from Pasternack can be made with these 1.0/2.3, BNC, C, F, HD-BNC, HN, MCX, MHV, Mini SMB, N, RCA, SC, SHV, SMA, SMB, SMC, straight cut lead, TNC, and UHF connector series. Our radio frequency cables come with male, female, receptacle, jack or plug connector genders with reverse thread and reverse polarity. These RF cable assemblies contain straight, and right-angle connectors with one, two, three, or six shields.
There are plenum, precision, low loss, and low PIM cable assemblies available. These radio frequency cables have a minimum bend radius that varies from 0.05 to 4.5 inches for the one time and from 0.05 to 6 inches for the repeated. Low loss test, skew matched pair, test, and VNA coaxial cable assemblies are offered from Pasternack. We also provide 12G SDI and 6G SDI cable designs and enhanced and standard reliability grade assemblies. RF specs for these coaxial cables can be found on their specifications datasheet PDF’s.
These coax and twinax radio frequency cable assemblies feature corrugated/hand formable, flexible, formable, and semi-rigid coax flex types. Our RF cables can include bulkhead, 2-hole and 4-hole flange mount method. Our cable assemblies have push-on, quick lock, smooth bore, snap-on, limited detent, QD and slide-on cable connection methods. These RF coaxial cable assemblies are covered with jacket materials made of copper, ETFE, FEP, FRPE, LSZH, PE, PET, PTFE, PVC, TPX, TPE, PVC LSZH, passivated stainless steel, and polyurethane.
Pasternack has one of the largest in-stock selection of coaxial cable assemblies for international and domestic orders. We offer the most comprehensive and extensive range of RF and microwave components on the market. Cable assemblies are 100% continuity checked, and complete RF testing is provided. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect RF cable assemblies for your requirements.
