New Waveguide Mixers, Detectors and Couplers
We offer an innovative series of in-stock, waveguide mixers, detectors and couplers for a variety of applications, including 5G, 6G, test and measurement, research and development, electronic warfare and more!
Availability
In-stock and ready to ship same-day with no minimum order quantities
Quality and Performance
ISO 9001:2015 certified facility
Rugged Designs
Built with the highest quality materials to stand up to years of use
Features

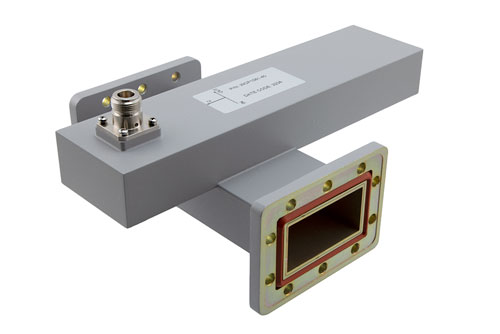

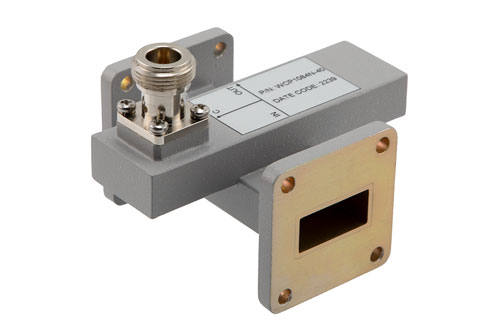

Couplers
- Coupling values from 20 to 50dB
- Waveguide sizes from WR-28 to WR-229
- Integrated connectorized designs with SMA, N-type and 2.92mm female connectors
Mixers
- LO-RF isolation is 28 dB typical
- Low conversion loss ranges from 8 dB to 12 dB with +13 dBm LO drive
- Cover broadband frequencies ranging from 26.5 to 110 GHz

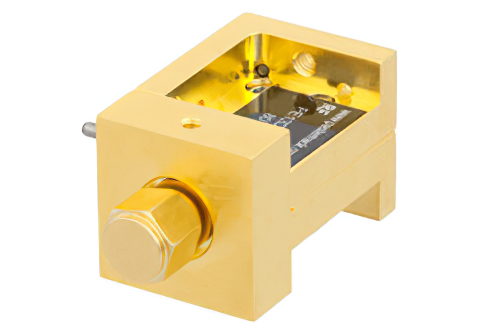

Detectors
- High levels of video sensitivity that range from 750 mV/mW to 1500 mV/mW.
- Wide dynamic range from -55 dBm to +10 dBm with maximum input power of +17 dBm.
- Models cover 26.5 GHz to 110 GHz.
Featured Waveguide Mixers, Detectors and Couplers
