BNC Male 75 Ohm to TNC Male 75 Ohm Cable Assemblies

Check out our new RF calculators & conversion tools...

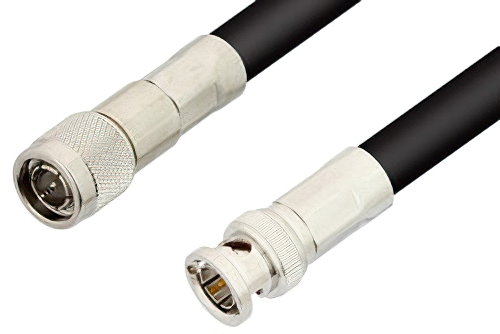

75 Ohm TNC Male to 75 Ohm BNC Male Cable Using 75 Ohm RG11 Coax, RoHS

Product ID: PE35354LF
75 Ohm TNC Male to 75 Ohm BNC Male Cable Using 75 Ohm RG11 Coax, RoHS

Image Views:  75 Ohm TNC Male to 75 Ohm BNC Male Cable Using 75 Ohm RG11 Coax, RoHS high resolution
Zoom


Click for:PE35354LF Datasheet
Click for:PE35354LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1TNC
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 175
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 275
RF Cable Part NumberRG11A/U
RF Cable TypeRG11
RF Cable Impedance75


75 Ohm TNC Male to 75 Ohm BNC Male Cable Using 75 Ohm RG11 Coax, RoHS

PE35354LF is a TNC male to BNC male cable using RG11 coax. This Pasternack TNC male to BNC male cable assembly uses a 75 Ohm TNC for connector 1 and a 75 Ohm BNC for connector 2.

Our male TNC to male BNC cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE35354LF TNC male to BNC male cable assembly is constructed with RG11 coax.
