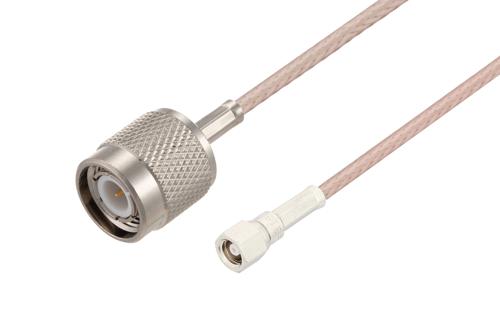

Radio frequency assembly TNC male to SMC plug cable using RG316 coax from Pasternack is part of one of the largest selections of same-day ship coaxial cables for RF, microwave and millimeter wave interconnect solutions. Pasternack coaxial cable assembly products are used in applications requiring high quality, such as laboratory RF test and measurement, rugged and designed for defense/military, telecom antenna tower component jumper connection, production environments, general use, etc. The TNC male to SMC plug cable using RG316 coax, like our other Pasternack coaxial cable assemblies, will ship the same day, and any custom TNC to SMC cable assembly orders will ship the same business day as well.
Pasternack RF coax cable assembly is built with a TNC cable connection on one end and a SMC cable connection on the other. Our TNC to SMC cable assembly has a male gender on end 1 and a plug on end 2. PE37393 can also be known as a TNC plug to SMC male cable assembly and will be shipped the same day as it is purchased. This flexible RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable's inner conducting material and PTFE dielectric type.
Our PE37393 RF cable has a FEP jacket of 0.098-inch diameter. This radio frequency cable assembly can withstand temperatures ranging from -55 to 165 degrees C. The flexible RF cable has a between series connection. Our TNC male to SMC plug cable has a maximum VSWR of 1.4:1.
TNC plug to SMC male cable assembly PE37393 is built with RG316 which is a flexible coax type. The Pasternack flexible TNC cable assembly is manufactured with TNC to SMC cable connectors, has a 50 Ohm impedance, and is single shielded. One connector features the crimp/crimp attachment method and a brass body with nickel plating, while the other has the crimp/solder attachment method and a brass body with nickel plating. Additional dimensions, specifications and CAD drawings for this RF cable are available on our downloadable PDF datasheet. PE37393 can also be used in the other direction and will be a SMC plug to TNC male cable assembly if the opposite connectivity is required.
TNC plug to SMC male cable assembly is just one of more than one million in-stock RF products available. Pasternack is where to buy a high quality TNC to SMC cable assembly for quick shipment worldwide. Variations of TNC and SMC cable assemblies can also be built and will ship on the same day as well, search this website or contact us for assistance. High quality custom RF cable assembly products for microwave and millimeter wave radio transmitter receiver, antenna jumper, component interconnection and more for RF test & measurement labs, rugged and MIL-STD designed military/defense, aerospace, telecom, phase stable, phase and delay matching, outdoor and harsh environment and other radio frequency applications can be manufactured. For further information on similar products, our expert technical support and trained sales team can get you the ideal TNC to SMC RF cable assembly as per your requirements.
