High Power Transfer Electromechanical Relay Switches (>75 Watts)

Check out our new RF calculators & conversion tools...

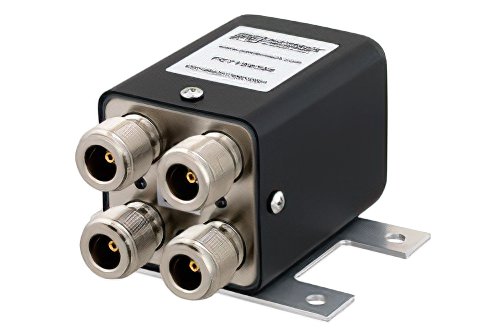

Transfer Electromechanical Relay Failsafe Switch, DC to 12 GHz, up to 430W, 28V, N

Product ID: PE71S6385
Transfer Electromechanical Relay Failsafe Switch, DC to 12 GHz, up to 430W, 28V, N


Image Views:  Transfer Electromechanical Relay Failsafe Switch, DC to 12 GHz, up to 430W, 28V, N high resolution
Zoomalternate image
View 2


Click for:PE71S6385 Datasheet
Click for:PE71S6385 RoHS Cert
Click for:PE71S6385 REACH Cert
Available Quantity: 5
Pricing Table
QUANTITYPRICE
1-4$989.78
5-9$940.29
10-24$890.80
25+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector SeriesN
Connector GenderFemale
Switch DesignTransfer
Minimum FrequencyDC
Maximum Frequency12 GHz
Impedance50 Ohm
Maximum Input Power200 Watts
Maximum VSWR1.7:1
Maximum Insertion Loss0.7 dB
Minimum Isolation60 dB


Transfer Electromechanical Relay Failsafe Switch, DC to 12 GHz, up to 430W, 28V, N

PE71S6385 electromechanical RF relay switch from Pasternack is a Transfer design. Our Transfer electromechanical RF switch uses type N connectors at 50 Ohm. This type N RF relay Transfer switch has a maximum frequency of 12 GHz and maximum power of 200 Watts. The Pasternack radio frequency Transfer type N electro-mechanical relay switch is rated at a control voltage of 28 Volts, indicator voltage and switching speed of 20ms.

N type Transfer electro mechanical RF relay switch features with an isolation minimum of 60 dB. Transfer electromechanical relay radio frequency switch PE71S6385 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Transfer type N coaxial RF relay electromechanical switch can ship worldwide the same day that it is bought as with our other available RF parts.
