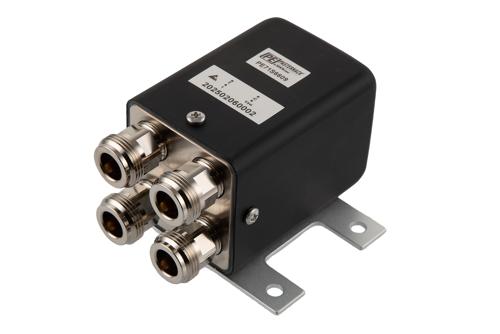

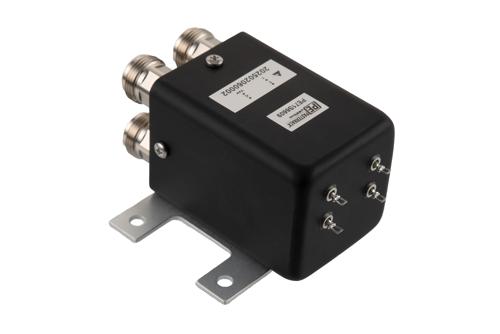

The PE71S6609 electromechanical RF relay switch from Pasternack is available in a transfer switch design with a latching actuator. This RF relay transfer switch with a N female connector has a maximum frequency of 18 GHz. The maximum switching speed of this radio frequency transfer electromechanical switch is 20msec.
Pasternack’s PE71S6609 relay switch comes with a maximum VSWR of 1.8:1 and a maximum insertion loss of 0.8 dB. This electromechanical RF relay switch is available in 2.52-inch length, 1.75-inch height and 3.12-inch width. This transfer switch is suitable for aerospace & defense, test & measurement, microwave radio systems, military commercial communication systems, research & development, SATCOM, wireless communications, enterprise and IoT applications.
Our radio frequency electromechanical relay switch from Pasternack can operate at temperatures ranging from -25 to 65 deg C. This PE71S6609 transfer electromechanical RF relay latching switch features self cut off, TTL logic and diodes. This latching RF switch with a N female connector has a minimum isolation of 60 dB. Additional dimensions and specifications for this electromechanical relay switch are on our downloadable PDF datasheet above. Our PE71S6609 RF switch has a maximum actuating set current of 250 mA.
Transfer electromechanical relay radio frequency latching switch PE71S6609 is part of our RF, microwave, and millimeter wave components available from Pasternack. Our transfer coaxial RF electromechanical relay switch can ship worldwide the same business day that it is bought, as with our other available RF parts. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the ideal RF latching switches for your requirements.
