UHF to BNC Adapters Standard Polarity

Check out our new RF calculators & conversion tools...

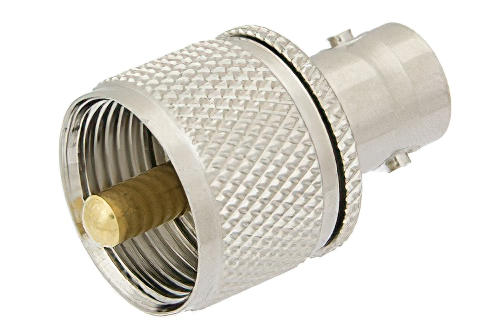

UHF Male to BNC Female Adapter

Product ID: PE9004
UHF Male to BNC Female Adapter

Image Views:  UHF Male to BNC Female Adapter high resolution
Zoom


Click for:PE9004 Datasheet
Click for:PE9004 RoHS Cert
Click for:PE9004 REACH Cert
DISCONTINUED PRODUCT
Replaced By: PE91328

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1UHF
Connector Gender 1Male
Connector Polarity 1Standard
Connector Impedance 150 Ohm
Connector Series 2BNC
Connector Gender 2Female
Connector Polarity 2Standard
Connector Impedance 250 Ohm
Adapter Body StyleStraight
Connector Mount Method 1None
Connector Body Material 1Brass
Connector Body Plating 1Nickel
Connector Mount Method 2None
Connector Body Material 2Brass
Connector Body Plating 2Nickel


UHF Male to BNC Female Adapter

UHF adapter PE9004 is one of over 40,000 available RF, microwave and millimeter wave components from Pasternack. Our UHF to BNC adapter is a between series coaxial adapter design. This 50 Ohm UHF adapter is precision manufactured to RF components industry specifications.

UHF male to BNC female adapter is one of the many RF components that ship same day as they are ordered. PE9004 male UHF to female BNC adapter has a straight body. This Pasternack straight UHF coax adapter is a in-line RF adapter.

Our male UHF to female BNC adapter PE9004 is shipped from Pasternack's ISO 9001:2008 facility the same day as purchased. This UHF to BNC radio frequency adapter is part of over 40,000 RF, microwave and millimeter wave products that ship the same day worldwide, including custom cable assemblies.
