UHF Male to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

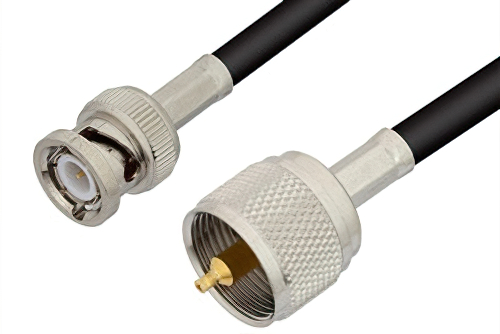

UHF Male to BNC Male Cable Using RG58 Coax

Product ID: PE3057
UHF Male to BNC Male Cable Using RG58 Coax

Image Views:  UHF Male to BNC Male Cable Using RG58 Coax high resolution
Zoom


Click for:PE3057 Datasheet
Click for:PE3057 Sample Test Procedure
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1UHF
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG58C/U
RF Cable TypeRG58
RF Cable Impedance50


UHF Male to BNC Male Cable Using RG58 Coax

PE3057 is a UHF male to BNC male cable using RG58 coax. This Pasternack UHF male to BNC male cable assembly uses a 50 Ohm UHF for connector 1 and a 50 Ohm BNC for connector 2.

Our male UHF to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3057 UHF male to BNC male cable assembly is constructed with RG58 coax.
