WR-34 Waveguide Horns

Check out our new RF calculators & conversion tools...

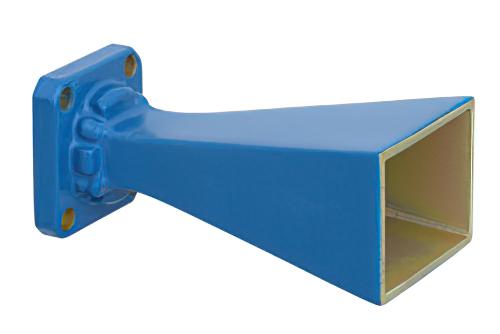

WR-34 Waveguide Standard Gain Horn Antenna Operating From 22 GHz to 33 GHz With a Nominal 15 dBi Gain With UG-1530/U Square Cover Flange

Product ID: PE9851A-15
WR-34 Waveguide Standard Gain Horn Antenna Operating From 22 GHz to 33 GHz With a Nominal 15 dBi Gain With UG-1530/U Square Cover Flange


Image Views:  WR-34 Waveguide Standard Gain Horn Antenna Operating From 22 GHz to 33 GHz With a Nominal 15 dBi Gain With UG-1530/U Square Cover Flange high resolution
Zoomalternate image
View 2


Click for:PE9851A-15 Datasheet
Click for:PE9851A-15 REACH Cert
Available Quantity: 34
Pricing Table
QUANTITYPRICE
1-4$870.25
5-9$809.33
10-24$748.42
25-49$696.20
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-34
Frequency, Min22 GHz
Frequency, Max33 GHz
Beam Width V40.8
Beam Width H23.1


WR-34 Waveguide Standard Gain Horn Antenna Operating From 22 GHz to 33 GHz With a Nominal 15 dBi Gain With UG-1530/U Square Cover Flange

PE9851A-15 WR-34 standard gain horn antenna is also known as a waveguide horn. This WR-34 standard gain horn antenna has a dB nominal gain and a square cover flange. Our dB WR-34 horn antenna has a minimum frequency of 22 GHz and a maximum frequency of 33 GHz.

WR34 standard gain horn waveguide antenna PE9851A-15 has a vertical beam width of 40.8 and horizontal of 23.1 degrees at 3 dB. This WR34 standard gain horn antenna with dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-34 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
