WR-62 Waveguide Bends

Check out our new RF calculators & conversion tools...

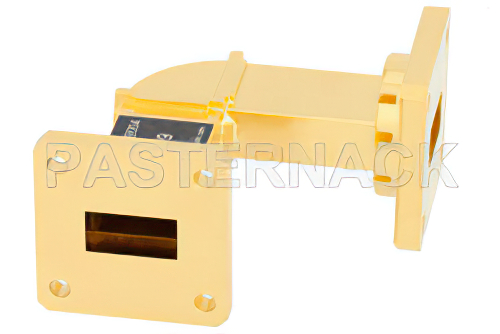

WR-62 Instrumentation Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz

Product ID: PE-W62B004
WR-62 Instrumentation Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz


Image Views:  WR-62 Instrumentation Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz high resolution
Zoomalternate image
View 2


Click for:PE-W62B004 Datasheet
Available Quantity: 5
Pricing Table
QUANTITYPRICE
1-1$390.23
2-4$374.62
5-9$359.01
10+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Type of BendH-Bend
Waveguide Size 1WR-62
Flange Size 1UG-419/U
Waveguide Size 2WR-62
Flange Size 2UG-419/U
Frequency, Min12.4 GHz
Frequency, Max18 GHz


WR-62 Instrumentation Grade Waveguide H-Bend with UG-419/U Flange Operating from 12.4 GHz to 18 GHz

PE-W62B004 is a WR-62 waveguide bend that is a H-Bend type with a UG-419/U flange. This WR-62 H-Bend waveguide with UG-419/U flange from Pasternack is instrumentation grade. Our WR-62 instrumentation grade waveguide bend has a minimum frequency of 12.4 GHz and a maximum frequency of 18 GHz.

WR62 waveguide bend PE-W62B004 is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This instrumentation grade WR-62 H-Bend waveguide with UG-419/U flange can ship worldwide the same day as it is purchased as with our other available RF parts.
