WR-75 Waveguide Horns

Check out our new RF calculators & conversion tools...

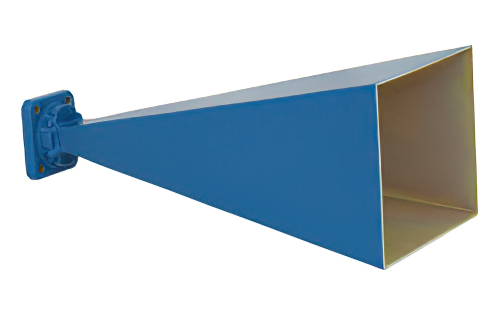

WR-75 Waveguide Standard Gain Horn Antenna Operating From 10 GHz to 15 GHz With a Nominal 20 dBi Gain With Square Cover Flange

Product ID: PE9855A-20
WR-75 Waveguide Standard Gain Horn Antenna Operating From 10 GHz to 15 GHz With a Nominal 20 dBi Gain With Square Cover Flange


Image Views:  WR-75 Waveguide Standard Gain Horn Antenna Operating From 10 GHz to 15 GHz With a Nominal 20 dBi Gain With Square Cover Flange high resolution
Zoomalternate image
View 2


Click for:PE9855A-20 Datasheet
Available Quantity: 11
Pricing Table
QUANTITYPRICE
1-4$799.07
5-9$743.14
10-24$687.20
25-49$639.26
50+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Waveguide SizeWR-75
Frequency, Min10 GHz
Frequency, Max15 GHz
Beam Width V17.2
Beam Width H16.3


WR-75 Waveguide Standard Gain Horn Antenna Operating From 10 GHz to 15 GHz With a Nominal 20 dBi Gain With Square Cover Flange

PE9855A-20 WR-75 standard gain horn antenna is also known as a waveguide horn. This WR-75 standard gain horn antenna has a dB nominal gain and a square cover flange. Our dB WR75 horn antenna has a minimum frequency of 10 GHz and a maximum frequency of 15 GHz.

WR-75 standard gain horn waveguide antenna PE9855A-20 has a vertical beam width of 17.2 and horizontal of 16.3 degrees at 3 dB. This WR-75 standard gain horn antenna with dB is part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our WR-75 waveguide horn antenna can ship worldwide the same day as it is purchased as with our other available RF parts.
