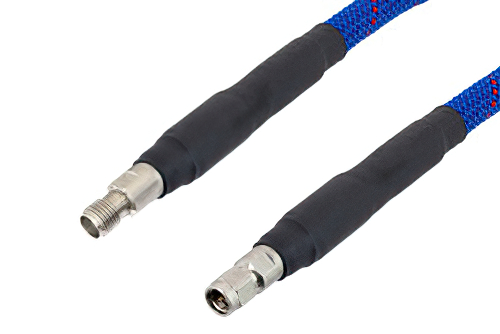

2.92mm Male to 2.92mm Female Test Cable Using VNA Test Cable Coax, RoHS

Product ID: PE321

Length

Standard Length

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

Product discontinued.

Replaced with PE3VNA2606.

* Lengths are rounded to the nearest quarter inch or centimeter. For precise lengths, please call 866-727-8376.

* All cable assembly length tolerance are as provided on the datasheet. If not provided, cable length tolerances are within the IPC standards (2022-24) as shown here.

View
Datasheet

Key Specifications

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1	2.92mm
Connector Gender 1	Male
Connector Polarity 1	Standard
Connector Angle 1	Straight
Connector Mount Method 1	None
Connector Impedance 1	50
Connector Series 2	2.92mm
Connector Gender 2	Female
Connector Polarity 2	Standard
Connector Angle 2	Straight
Connector Mount Method 2	None
Connector Impedance 2	50
RF Cable Part Number	PE-VNA
RF Cable Type	VNA Cable
RF Cable Impedance	50

Description

2.92mm Male to 2.92mm Female Test Cable Using VNA Test Cable Coax, RoHS

PE321 is a 2.92mm male to 2.92mm female cable using VNA Cable coax. This Pasternack 2.92mm male to 2.92mm female cable assembly uses a 50 Ohm 2.92mm for connector 1 and a 50 Ohm 2.92mm for connector 2.

Our male 2.92mm to female 2.92mm cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE321 2.92mm male to 2.92mm female cable assembly is constructed with VNA Cable coax and the maximum VSWR is 1.38:1.
