Type F Male 75 Ohm to Type F Male 75 Ohm Cable Assemblies

Check out our new RF calculators & conversion tools...

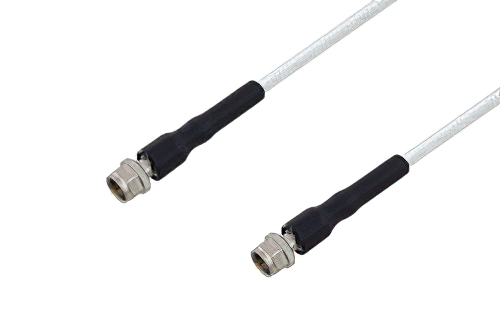

75 Ohm F Male to 75 Ohm F Male Low Frequency Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS

Product ID: PE3TC1202
75 Ohm F Male to 75 Ohm F Male Low Frequency Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS

Image Views:  75 Ohm F Male to 75 Ohm F Male Low Frequency Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS high resolution
Zoom


Click for:PE3TC1202 Datasheet
Click for:PE3TC1202 RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
24 in.36 in.48 in.72 in.100 cm.200 cm.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1F
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 175
Connector Series 2F
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 275
RF Cable Part NumberPE-SF200LL75
RF Cable TypePE-SF200LL75
RF Cable Impedance75


75 Ohm F Male to 75 Ohm F Male Low Frequency Cable Using 75 Ohm PE-SF200LL75 Coax, RoHS

PE3TC1202 is a type F male to type F male cable using PE-SF200LL75 coax. This Pasternack F type male to F type male cable assembly uses a 75 Ohm type F for connector 1 and a 75 Ohm type F for connector 2.

Our male F type to male F type cable assembly uses a flexible cable type that is 75 Ohm. Pasternack PE3TC1202 type F male to type F male cable assembly is constructed with PE-SF200LL75 coax and the maximum VSWR is 1.35:1.
