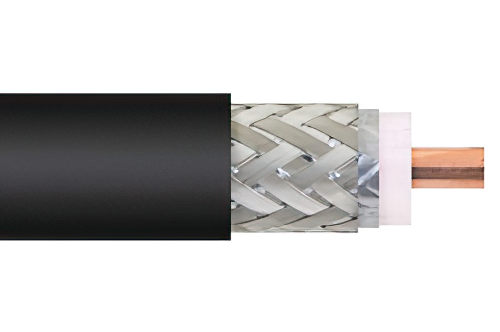

Flexible RG8 Type with Foam Dielectric Coax Cable Double Shielded with Black PVC Jacket

Product ID: PE-B400
Flexible RG8 Type with Foam Dielectric Coax Cable Double Shielded with Black PVC Jacket

Image Views:  Flexible RG8 Type with Foam Dielectric Coax Cable Double Shielded with Black PVC Jacket high resolution
Zoom


Click for:PE-B400 Datasheet
Available Feet: 13,221
Pricing Table
FEETPRICE
1-99$2.18
100-499$2.07
500-999$1.96
1000-2499$1.87
2500+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
Key Specifications (Click on Data Sheet Above for Additional Details).
Generic NameRG8 Type with Foam Dielectric
Flex TypeFlexible
Impedance50 Ohm
Dielectric TypePE (F)
Jacket Diameter0.403 in
Jacket MaterialPVC
No. of Shields2
Attenuation at 1 Ghz.6 dB
Power, Max at 1 Ghz.190 Watts
Frequency, Max4 GHz
Max Operating Temperature80 deg C
Center Conductor TypeSolid
Inner Conductor, Number of Strands1
Coax TypeCoax


Flexible RG8 Type with Foam Dielectric Coax Cable Double Shielded with Black PVC Jacket

PE-B400 part number from Pasternack is a RG8 Type with Foam Dielectric coax cable that is flexible. Pasternack PE-B400 flexible coax cable is 50 Ohm and has a PE (F) dielectric. Our PE-B400 coax is constructed with a 0.403 jacket made of PVC. PE-B400 coax has a shield count of 2 and the maximum frequency for this Pasternack cable is 4 GHz. PE-B400 coax cable has an attenuation at 1 GHz of 6 dB and a maximum power of 190 watts at 1 GHz.

Pasternack RG8 Type with Foam Dielectric coax cables are part of over 40,000 RF, microwave and millimeter wave components. PE-B400 cables and our other RF parts are available for same day shipping worldwide. Custom RF cable assemblies using PE-B400 or other coax can be built and shipped same day as well.
