GR874 Sexless to BNC Male Cable Assemblies

Check out our new RF calculators & conversion tools...

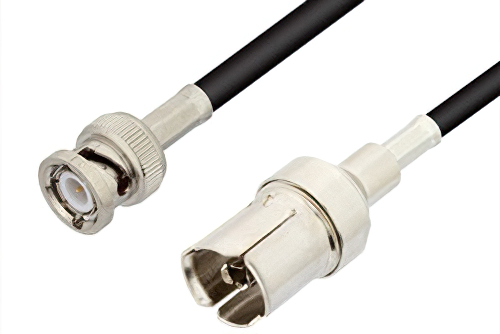

GR874 Sexless to BNC Male Cable Using RG223 Coax, RoHS

Product ID: PE3182LF
GR874 Sexless to BNC Male Cable Using RG223 Coax, RoHS

Image Views:  GR874 Sexless to BNC Male Cable Using RG223 Coax, RoHS high resolution
Zoom


Click for:PE3182LF Datasheet
Click for:PE3182LF RoHS Cert
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.72 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1GR874
Connector Gender 1Sexless
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2BNC
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG223/U
RF Cable TypeRG223
RF Cable Impedance50


GR874 Sexless to BNC Male Cable Using RG223 Coax, RoHS

PE3182LF is a GR874 sexless to BNC male cable using RG223 coax. This Pasternack GR874 sexless to BNC male cable assembly uses a 50 Ohm GR874 for connector 1 and a 50 Ohm BNC for connector 2.

Our sexless GR874 to male BNC cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3182LF GR874 sexless to BNC male cable assembly is constructed with RG223 coax.
