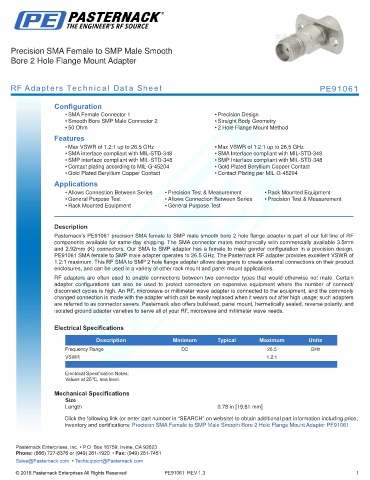

Precision SMA Female to SMP Male Smooth
Bore 2 Hole Flange Mount Adapter

RF Adapters Technical Data Sheet PE91061

Configuration
• SMA Female Connector 1 • Precision Design
• Smooth Bore SMP Male Connector 2 • Straight Body Geometry
• 50 Ohm • 2 Hole Flange Mount Method
Features
• Max VSWR of 1.2:1 up to 26.5 GHz • Max VSWR of 1.2:1 up to 26.5 GHz
• SMA interface compliant with MIL-STD-348 • SMA Interface compliant with MIL-STD-348
• SMP interface compliant with MIL-STD-348 • SMP Interface compliant with MIL-STD-348
• Contact plating according to MIL-G-45204 • Gold Plated Beryllium Copper Contact
• Gold Plated Beryllium Copper Contact • Contact Plating per MIL-G-45204
Applications
• Allows Connection Between Series • Precision Test & Measurement • Rack Mounted Equipment
• General Purpose Test • Allows Connection Between Series • Precision Test & Measurement
• Rack Mounted Equipment • General Purpose Test
.
Description
Pasternack’s PE91061 precision SMA female to SMP male smooth bore 2 hole flange adapter is part of our full line of RF
components available for same-day shipping. The SMA connector mates mechanically with commercially available 3.5mm
and 2.92mm (K) connectors. Our SMA to SMP adapter has a female to male gender configuration in a precision design.
PE91061 SMA female to SMP male adapter operates to 26.5 GHz. The Pasternack RF adapter provides excellent VSWR of
1.2:1 maximum. This RF SMA to SMP 2 hole flange adapter allows designers to create external connections on their product
enclosures, and can be used in a variety of other rack mount and panel mount applications.
RF adapters are often used to enable connections between two connector types that would otherwise not mate. Certain
adapter configurations can also be used to protect connectors on expensive equipment where the number of connect/
disconnect cycles is high. An RF, microwave or millimeter wave adapter is connected to the equipment, and the commonly
changed connection is made with the adapter which can be easily replaced when it wears out after high usage; such adapters
are referred to as connector savers. Pasternack also offers bulkhead, panel mount, hermetically sealed, reverse polarity, and
isolated ground adapter varieties to serve all of your RF, microwave and millimeter wave needs.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 26.5 GHz
VSWR 1.2:1
. .
Electrical Specification Notes:
Values at 25°C, sea level.
Mechanical Specifications
Size
Length 0.78 in [19.81 mm]

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Precision SMA Female to SMP Male Smooth Bore 2 Hole Flange Mount Adapter PE91061
-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE91061 REV 1.3 1
