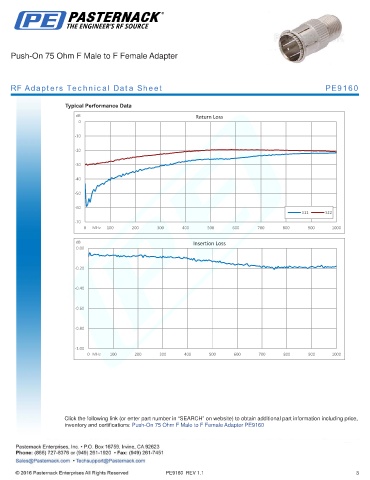

Push-On 75 Ohm F Male to F Female Adapter
RF Adapters Technical Data Sheet PE9160
Typical Performance Data
dB Return Loss
0
-10
-20
-30
-40
-50
-60
S11 S22
-70
0 MHz 100 200 300 400 500 600 700 800 900 1000
dB Insertion Loss
0.00
-0.20
-0.40
-0.60
-0.80
-1.00
0 MHz 100 200 300 400 500 600 700 800 900 1000
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Push-On 75 Ohm F Male to F Female Adapter PE9160
PE9160 REV 1.1 3
