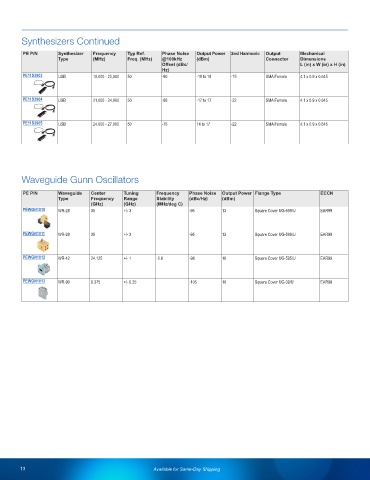

Page 14 - Oscillators Product Selection Guide
P. 14
Synthesizers Continued
PE P/N Synthesizer Frequency Typ Ref. Phase Noise Output Power 2nd Harmonic Output Mechanical
Type (MHz) Freq. (MHz) @100kHz (dBm) Connector Dimensions
Offset (dBc/ L (in) x W (in) x H (in)
Hz)
PE11S3903 USB 10,000 - 20,000 50 -80 -19 to 18 -15 SMA Female 4.1 x 0.9 x 0.645
PE11S3904 USB 21,000 - 24,000 50 -88 -17 to 17 -22 SMA Female 4.1 x 0.9 x 0.645
PE11S3905 USB 24,000 - 27,000 50 -75 14 to 17 -22 SMA Female 4.1 x 0.9 x 0.645
Waveguide Gunn Oscillators
PE P/N Waveguide Center Tuning Frequency Phase Noise Output Power Flange Type ECCN
Type Frequency Range Stability (dBc/Hz) (dBm)
(GHz) (GHz) (MHz/deg C)
PEWGN1010 WR-28 35 +/- 3 -95 13 Square Cover UG-599/U EAR99
PEWGN1011 WR-28 35 +/- 3 -95 13 Square Cover UG-599/U EAR99
PEWGN1012 WR-42 24.125 +/- 1 -0.8 -98 10 Square Cover UG-595/U EAR99
PEWGN1013 WR-90 9.375 +/- 0.25 -105 10 Square Cover UG-39/U EAR99
