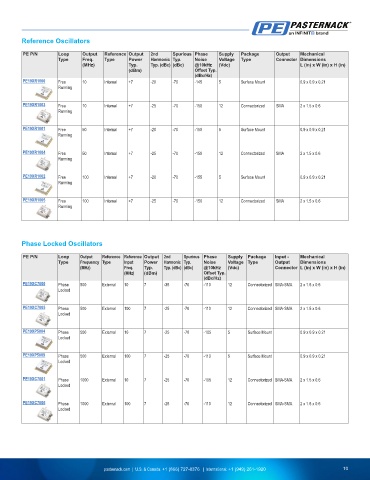

Page 11 - Oscillators Product Selection Guide

Reference Oscillators
PE P/N Loop Output Reference Output 2nd Spurious Phase Supply Package Output Mechanical
Type Freq. Type Power Harmonic Typ. Noise Voltage Type Connector Dimensions
(MHz) Typ. Typ. (dBc) (dBc) @10kHz (Vdc) L (in) x W (in) x H (in)
(dBm) Offset Typ.
(dBc/Hz)
PE19XR1000 Free 10 Internal +7 -20 -70 -145 5 Surface Mount 0.9 x 0.9 x 0.21
Running

PE19XR1003 Free 10 Internal +7 -25 -70 -150 12 Connectorized SMA 2 x 1.5 x 0.6
Running

PE19XR1001 Free 50 Internal +7 -20 -70 -150 5 Surface Mount 0.9 x 0.9 x 0.21
Running

PE19XR1004 Free 50 Internal +7 -25 -70 -150 12 Connectorized SMA 2 x 1.5 x 0.6
Running

PE19XR1002 Free 100 Internal +7 -20 -70 -155 5 Surface Mount 0.9 x 0.9 x 0.21
Running

PE19XR1005 Free 100 Internal +7 -25 -70 -150 12 Connectorized SMA 2 x 1.5 x 0.6
Running

Phase Locked Oscillators

PE P/N Loop Output Reference Reference Output 2nd Spurious Phase Supply Package Input - Mechanical
Type Frequency Type Input Power Harmonic Typ. Noise Voltage Type Output Dimensions
(MHz) Freq. Typ. Typ. (dBc) (dBc) @10kHz (Vdc) Connector L (in) x W (in) x H (in)
(MHz) (dBm) Offset Typ.
(dBc/Hz)
PE19XC7000 Phase 500 External 10 7 -35 -70 -110 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

PE19XC7005 Phase 500 External 100 7 -25 -70 -110 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

PE19XP5004 Phase 500 External 10 7 -25 -70 -105 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

PE19XP5009 Phase 500 External 100 7 -25 -70 -110 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

PE19XC7001 Phase 1000 External 10 7 -25 -70 -105 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

PE19XC7006 Phase 1000 External 100 7 -25 -70 -110 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

10
