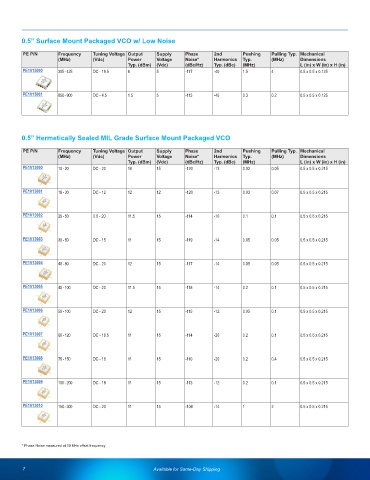

Page 8 - Oscillators Product Selection Guide
P. 8

0.5” Surface Mount Packaged VCO w/ Low Noise
         PE P/N     Frequency   Tuning Voltage  Output   Supply   Phase   2nd    Pushing   Pulling Typ.  Mechanical
                    (MHz)       (Vdc)      Power     Voltage   Noise*   Harmonics  Typ.    (MHz)    Dimensions
                                           Typ. (dBm)  (Vdc)  (dBc/Hz)  Typ. (dBc)  (MHz)           L (in) x W (in) x H (in)
         PE1V15000  305 - 425   DC - 19.5  8         5        -117      -40      1.5       4        0.5 x 0.5 x 0.125



         PE1V15001  850 - 900   DC - 4.5   1.5       5        -113      -45      0.3       0.2      0.5 x 0.5 x 0.125







        0.5” Hermetically Sealed MIL Grade Surface Mount Packaged VCO
         PE P/N     Frequency   Tuning Voltage  Output   Supply   Phase   2nd    Pushing   Pulling Typ.  Mechanical
                    (MHz)       (Vdc)      Power     Voltage   Noise*   Harmonics  Typ.    (MHz)    Dimensions
                                           Typ. (dBm)  (Vdc)  (dBc/Hz)  Typ. (dBc)  (MHz)           L (in) x W (in) x H (in)
         PE1V13000  10 - 20     DC - 20    10        15       -120      -11      0.02      0.05     0.5 x 0.5 x 0.215



         PE1V13001  18 - 30     DC - 12    12        12       -120      -13      0.03      0.07     0.5 x 0.5 x 0.215



         PE1V13002  25 - 50     0.5 - 20   11.5      15       -114      -10      0.1       0.1      0.5 x 0.5 x 0.215


         PE1V13003  30 - 60     DC - 15    11        15       -119      -14      0.05      0.05     0.5 x 0.5 x 0.215




         PE1V13004  40 - 80     DC - 20    12        15       -117      -14      0.05      0.05     0.5 x 0.5 x 0.215


         PE1V13005  40 - 100    DC - 20    11.5      15       -118      -14      0.2       0.1      0.5 x 0.5 x 0.215



         PE1V13006  50 - 100    DC - 20    12        15       -115      -12      0.05      0.1      0.5 x 0.5 x 0.215



         PE1V13007  60 - 120    DC - 18.5  11        15       -114      -20      0.2       0.1      0.5 x 0.5 x 0.215



         PE1V13008  75 - 150    DC - 18    11        15       -110      -20      0.2       0.4      0.5 x 0.5 x 0.215



         PE1V13009  100 - 200   DC - 18    11        15       -113      -12      0.2       0.1      0.5 x 0.5 x 0.215



         PE1V13010  150 - 300   DC - 20    11        15       -108      -14      1         2        0.5 x 0.5 x 0.215






        * Phase Noise measured at 10 KHz offset frequency
