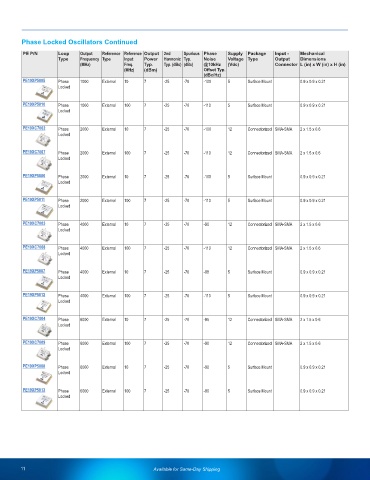

Page 12 - Oscillators Product Selection Guide

Phase Locked Oscillators Continued
PE P/N Loop Output Reference Reference Output 2nd Spurious Phase Supply Package Input - Mechanical
Type Frequency Type Input Power Harmonic Typ. Noise Voltage Type Output Dimensions
(MHz) Freq. Typ. Typ. (dBc) (dBc) @10kHz (Vdc) Connector L (in) x W (in) x H (in)
(MHz) (dBm) Offset Typ.
(dBc/Hz)
PE19XP5005 Phase 1000 External 10 7 -25 -70 -100 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

PE19XP5010 Phase 1000 External 100 7 -25 -70 -110 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

PE19XC7002 Phase 2000 External 10 7 -25 -70 -100 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

PE19XC7007 Phase 2000 External 100 7 -25 -70 -110 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

PE19XP5006 Phase 2000 External 10 7 -25 -70 -100 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

PE19XP5011 Phase 2000 External 100 7 -25 -70 -110 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

PE19XC7003 Phase 4000 External 10 7 -35 -70 -90 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

PE19XC7008 Phase 4000 External 100 7 -25 -70 -110 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

PE19XP5007 Phase 4000 External 10 7 -25 -70 -98 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

PE19XP5012 Phase 4000 External 100 7 -25 -70 -110 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

PE19XC7004 Phase 6000 External 10 7 -25 -70 -95 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

PE19XC7009 Phase 6000 External 100 7 -25 -70 -90 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked

PE19XP5008 Phase 6000 External 10 7 -25 -70 -90 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

PE19XP5013 Phase 6000 External 100 7 -25 -70 -90 5 Surface Mount 0.9 x 0.9 x 0.21
Locked

11 Available for Same-Day Shipping
