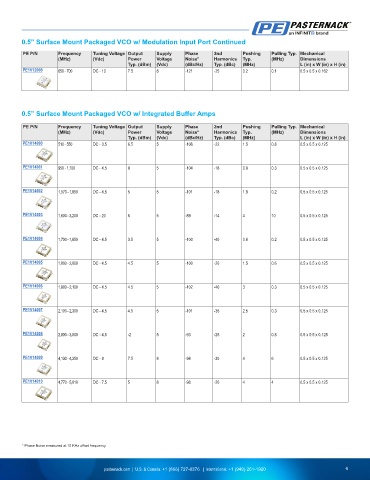

0.5” Surface Mount Packaged VCO w/ Modulation Input Port Continued
         PE P/N     Frequency   Tuning Voltage  Output   Supply   Phase   2nd    Pushing   Pulling Typ.  Mechanical
                    (MHz)       (Vdc)      Power     Voltage   Noise*   Harmonics  Typ.    (MHz)    Dimensions
                                           Typ. (dBm)  (Vdc)  (dBc/Hz)  Typ. (dBc)  (MHz)           L (in) x W (in) x H (in)
         PE1V12008  650 - 700   DC - 10    7.5       8        -121      -25      0.2       0.1      0.5 x 0.5 x 0.162






        0.5” Surface Mount Packaged VCO w/ Integrated Buffer Amps


         PE P/N     Frequency   Tuning Voltage  Output   Supply   Phase   2nd    Pushing   Pulling Typ.  Mechanical
                    (MHz)       (Vdc)      Power     Voltage   Noise*   Harmonics  Typ.    (MHz)    Dimensions
                                           Typ. (dBm)  (Vdc)  (dBc/Hz)  Typ. (dBc)  (MHz)           L (in) x W (in) x H (in)
         PE1V14000  510 - 550   DC - 3.5   6.5       5        -106      -22      1.5       0.8      0.5 x 0.5 x 0.125



         PE1V14001  950 - 1,100  DC - 4.5  9         5        -104      -18      0.8       0.3      0.5 x 0.5 x 0.125



         PE1V14002  1,570 - 1,850  DC - 4.5  5       5        -101      -18      1.8       0.2      0.5 x 0.5 x 0.125



         PE1V14003  1,600 - 3,200  DC - 20  6        5        -89       -14      4         10       0.5 x 0.5 x 0.125


         PE1V14004  1,700 - 1,850  DC - 4.5  3.5     5        -100      -40      0.8       0.2      0.5 x 0.5 x 0.125



         PE1V14005  1,800 - 2,000  DC - 4.5  4.5     5        -100      -20      1.5       0.6      0.5 x 0.5 x 0.125



         PE1V14006  1,900 - 2,100  DC - 4.5  4.5     5        -102      -40      3         0.3      0.5 x 0.5 x 0.125



         PE1V14007  2,100 - 2,300  DC - 4.5  4.5     5        -101      -35      2.5       0.3      0.5 x 0.5 x 0.125



         PE1V14008  2,800 - 3,000  DC - 4.5  -2      5        -93       -25      2         0.8      0.5 x 0.5 x 0.125



         PE1V14009  4,130 - 4,350  DC - 8  7.5       8        -98       -30      4         6        0.5 x 0.5 x 0.125



         PE1V14010  4,770 - 5,010  DC - 7.5  5       8        -98       -20      4         4        0.5 x 0.5 x 0.125











        * Phase Noise measured at 10 KHz offset frequency
