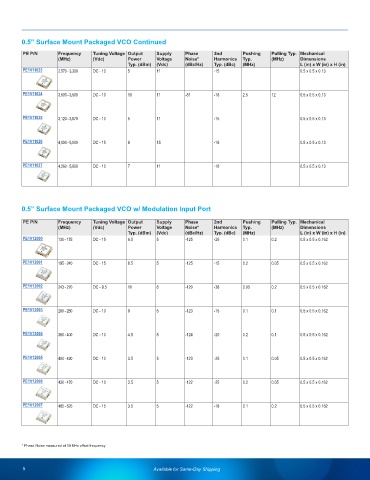

Page 6 - Oscillators Product Selection Guide
P. 6

0.5” Surface Mount Packaged VCO Continued
         PE P/N     Frequency   Tuning Voltage  Output   Supply   Phase   2nd    Pushing   Pulling Typ.  Mechanical
                    (MHz)       (Vdc)      Power     Voltage   Noise*   Harmonics  Typ.    (MHz)    Dimensions
                                           Typ. (dBm)  (Vdc)  (dBc/Hz)  Typ. (dBc)  (MHz)           L (in) x W (in) x H (in)
         PE1V11023  2,570 - 3,300  DC - 10  5        11                 -15                         0.5 x 0.5 x 0.13



         PE1V11024  3,000 - 3,500  DC - 10  10       11       -81       -16      2.5       12       0.5 x 0.5 x 0.13



         PE1V11025  3,120 - 3,870  DC - 10  5        11                 -15                         0.5 x 0.5 x 0.13


         PE1V11026  4,000 - 5,000  DC - 15  8        15                 -18                         0.5 x 0.5 x 0.13



         PE1V11027  4,260 - 5,000  DC - 10  7        11                 -18                         0.5 x 0.5 x 0.13







        0.5” Surface Mount Packaged VCO w/ Modulation Input Port

         PE P/N     Frequency   Tuning Voltage  Output   Supply   Phase   2nd    Pushing   Pulling Typ.  Mechanical
                    (MHz)       (Vdc)      Power     Voltage   Noise*   Harmonics  Typ.    (MHz)    Dimensions
                                           Typ. (dBm)  (Vdc)  (dBc/Hz)  Typ. (dBc)  (MHz)           L (in) x W (in) x H (in)
         PE1V12000  130 - 175   DC - 15    6.5       5        -125      -25      0.1       0.2      0.5 x 0.5 x 0.162



         PE1V12001  195 - 240   DC - 15    8.5       5        -125      -15      0.2       0.05     0.5 x 0.5 x 0.162



         PE1V12002  243 - 270   DC - 9.5   10        8        -120      -38      0.05      0.2      0.5 x 0.5 x 0.162



         PE1V12003  260 - 280   DC - 10    8         5        -123      -15      0.1       0.1      0.5 x 0.5 x 0.162



         PE1V12004  380 - 400   DC - 10    4.5       5        -124      -20      0.2       0.1      0.5 x 0.5 x 0.162



         PE1V12005  400 - 430   DC - 10    3.5       5        -123      -25      0.1       0.05     0.5 x 0.5 x 0.162



         PE1V12006  430 - 470   DC - 10    3.5       5        -122      -25      0.2       0.05     0.5 x 0.5 x 0.162



         PE1V12007  465 - 525   DC - 15    3.5       5        -122      -18      0.1       0.2      0.5 x 0.5 x 0.162






        * Phase Noise measured at 10 KHz offset frequency



         5                                          Available for Same-Day Shipping
