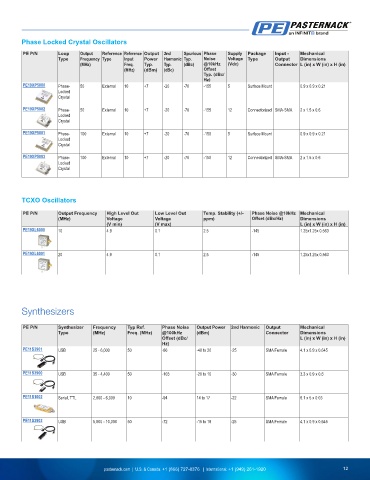

Page 13 - Oscillators Product Selection Guide

Phase Locked Crystal Oscillators
PE P/N Loop Output Reference Reference Output 2nd Spurious Phase Supply Package Input - Mechanical
Type Frequency Type Input Power Harmonic Typ. Noise Voltage Type Output Dimensions
(MHz) Freq. Typ. Typ. (dBc) @10kHz (Vdc) Connector L (in) x W (in) x H (in)
(MHz) (dBm) (dBc) Offset
Typ. (dBc/
Hz)
PE19XP5000 Phase- 50 External 10 +7 -20 -70 -155 5 Surface Mount 0.9 x 0.9 x 0.21
Locked
Crystal

PE19XP5002 Phase- 50 External 10 +7 -20 -70 -155 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked
Crystal

PE19XP5001 Phase- 100 External 10 +7 -20 -70 -150 5 Surface Mount 0.9 x 0.9 x 0.21
Locked
Crystal

PE19XP5003 Phase- 100 External 10 +7 -20 -70 -150 12 Connectorized SMA-SMA 2 x 1.5 x 0.6
Locked
Crystal

TCXO Oscillators

PE P/N Output Frequency High Level Out Low Level Out Temp. Stability (+/- Phase Noise @10kHz Mechanical
(MHz) Voltage Voltage ppm) Offset (dBc/Hz) Dimensions
(V min) (V max) L (in) x W (in) x H (in)
PE19XL6000 10 4.9 0.1 2.5 -145 1.25x1.25x 0.563

PE19XL6001 20 4.9 0.1 2.5 -145 1.25x1.25x 0.563

Synthesizers

PE P/N Synthesizer Frequency Typ Ref. Phase Noise Output Power 2nd Harmonic Output Mechanical
Type (MHz) Freq. (MHz) @100kHz (dBm) Connector Dimensions
Offset (dBc/ L (in) x W (in) x H (in)
Hz)
PE11S3901 USB 25 - 6,000 50 -86 -40 to 20 -25 SMA Female 4.1 x 0.9 x 0.645

PE11S3900 USB 35 - 4,400 50 -103 -20 to 10 -30 SMA Female 3.3 x 0.9 x 0.6

PE11S1002 Serial, TTL 2,000 - 6,000 10 -94 14 to 17 -22 SMA Female 6.1 x 5 x 0.03

PE11S3902 USB 5,000 - 10,000 50 -72 -15 to 18 -25 SMA Female 4.1 x 0.9 x 0.645
