  • Models Feature Wide Output Frequency Coverage from 8 GHz to 46 GHz
  • Active Multipliers Exhibit Output Power Levels up to +17 dBm typical
  • Active Frequency Multipliers Low Input Power Drive Range: 0 to +6 dBm
  • High Fundamental Isolation Levels up to 30 dB typical
  • High 3rd Harmonic Suppression Levels up to 30 dBc typical
  • Low Phase Noise down to -142 dBc/Hz Typical @ 100 KHz offset
  • Hermetically Sealed Compact Packages With Field Replaceable Connectors

Active frequency multipliers in stock
and ship same-day

Click on the links below for more details

Millimeter Wave x2 Active Frequency Multipliers




Part No.

Input
Frequency
(GHz)

Output
Frequency
(GHz)

Input Drive
Power
(dBm)

Output
Power
Typical (dBm)

SSB Phase
Noise
Typical
(@100 KHz)

Fundamental
Isolation
Typical (dB)

3rd
Harmonic
Suppression
Typical (dBc)

Max RF
Input Power
(dBm)

DC Bias
(Volts/mA)

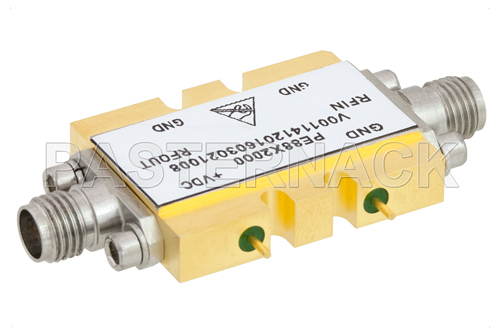

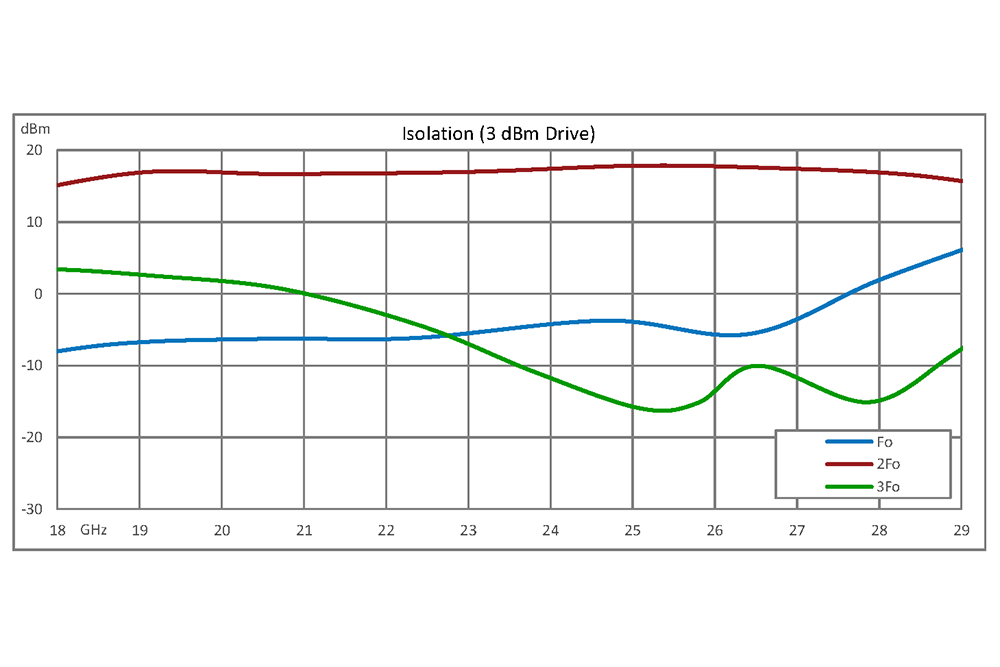

2x Frequency Multiplier Module, 18 GHz to 29 GHz Output Frequency, +11 dBm Output Power, Field Replaceable 2.92mm   PE88X2000

9 to 14.5

18 to 29

0 to +6

+16

-132

20

20

+13

+5 / 82

  • descr2x Frequency Multiplier Module, 18 GHz to 29 GHz Output Frequency, +11 dBm Output Power, Field Replaceable 2.92mm
  • descr2x Frequency Multiplier Module, 18 GHz to 29 GHz Output Frequency, +11 dBm Output Power, Field Replaceable 2.92mm
  • descr2x Frequency Multiplier Module, 18 GHz to 29 GHz Output Frequency, +11 dBm Output Power, Field Replaceable 2.92mm
  • descr2x Frequency Multiplier Module, 18 GHz to 29 GHz Output Frequency, +11 dBm Output Power, Field Replaceable 2.92mm

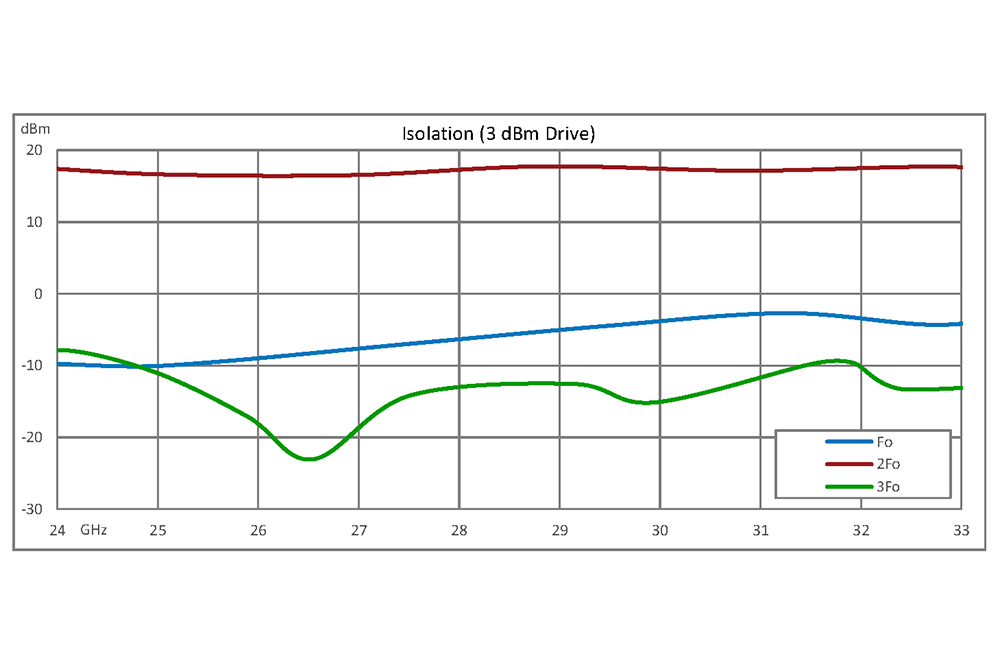

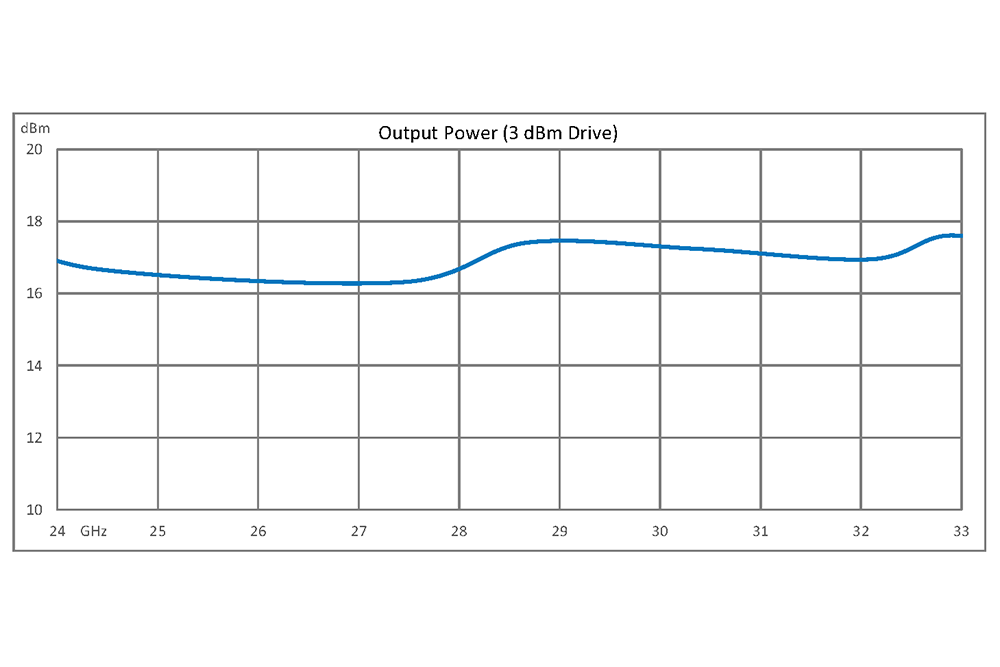

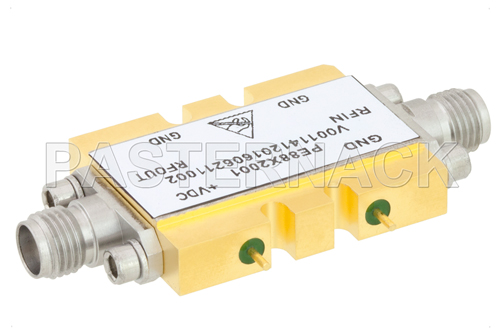

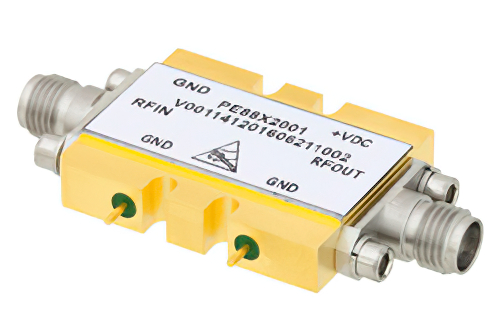

2x Frequency Multiplier Module, 24 GHz to 33 GHz Output Frequency, +14 dBm Output Power, Field Replaceable 2.92mm   PE88X2001

12 to 16.5

24 to 33

0 to +6

+17

-132

20

30

+13

+5 / 81

  • descr2x Frequency Multiplier Module, 24 GHz to 33 GHz Output Frequency, +14 dBm Output Power, Field Replaceable 2.92mm
  • descr2x Frequency Multiplier Module, 24 GHz to 33 GHz Output Frequency, +14 dBm Output Power, Field Replaceable 2.92mm
  • descr2x Frequency Multiplier Module, 24 GHz to 33 GHz Output Frequency, +14 dBm Output Power, Field Replaceable 2.92mm
  • descr2x Frequency Multiplier Module, 24 GHz to 33 GHz Output Frequency, +14 dBm Output Power, Field Replaceable 2.92mm

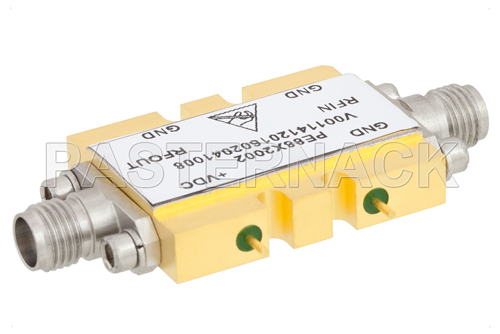

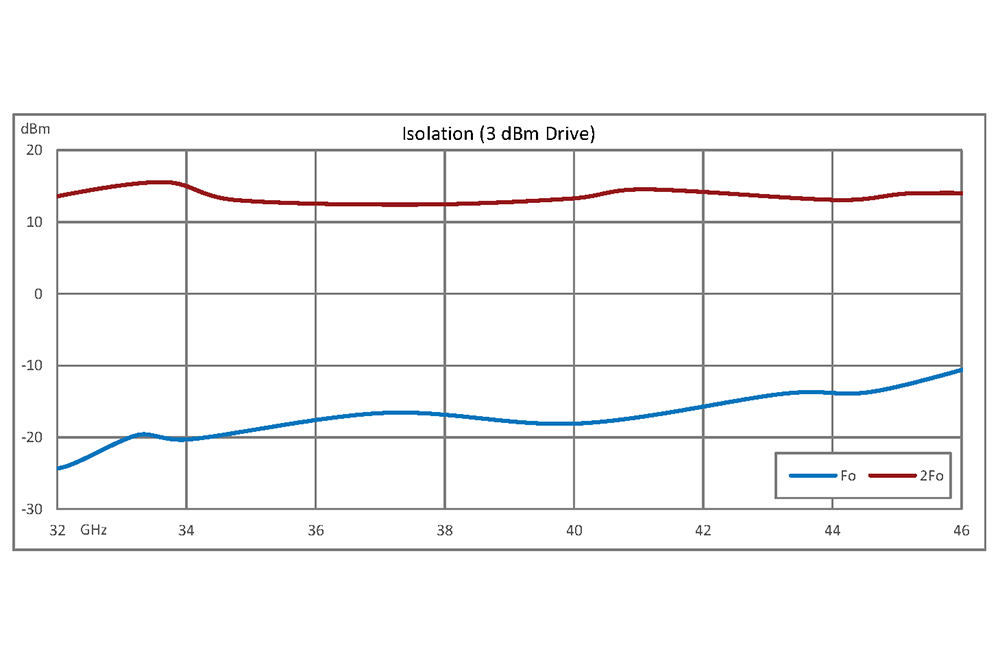

2x Frequency Multiplier Module, 32 GHz to 46 GHz Output Frequency, +8 dBm Output Power, Field Replaceable 2.92mm   PE88X2002

16 to 23

32 to 46

0 to +6

+13

-130

30

- - -

+13

+5 / 70

  • descr2x Frequency Multiplier Module, 32 GHz to 46 GHz Output Frequency, +8 dBm Output Power, Field Replaceable 2.92mm
  • descr2x Frequency Multiplier Module, 32 GHz to 46 GHz Output Frequency, +8 dBm Output Power, Field Replaceable 2.92mm
  • descr2x Frequency Multiplier Module, 32 GHz to 46 GHz Output Frequency, +8 dBm Output Power, Field Replaceable 2.92mm
  • descr2x Frequency Multiplier Module, 32 GHz to 46 GHz Output Frequency, +8 dBm Output Power, Field Replaceable 2.92mm

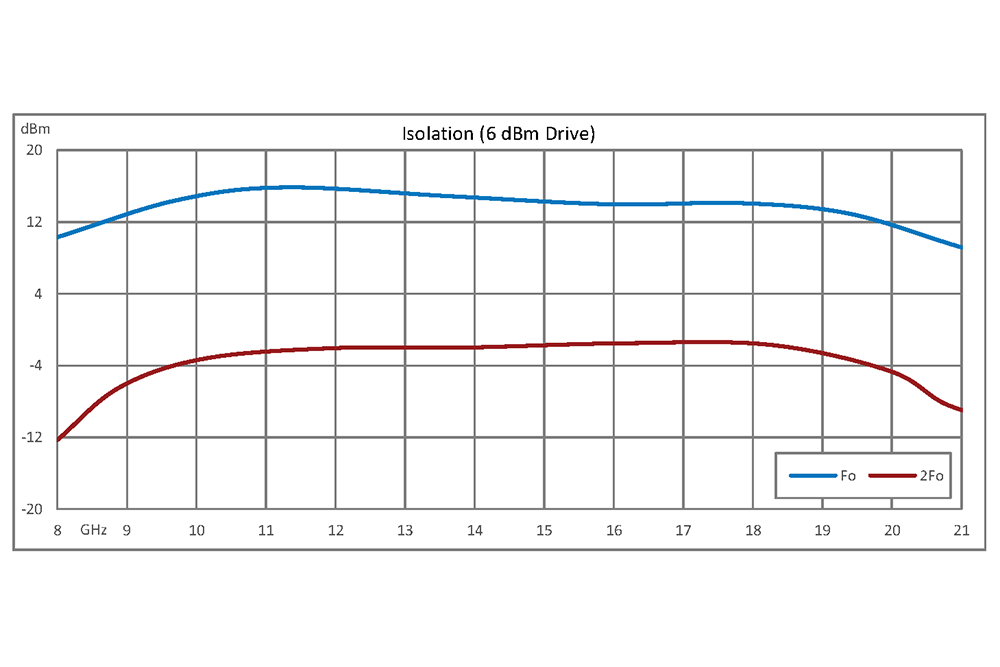

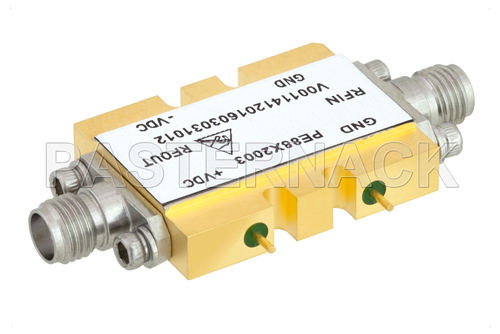

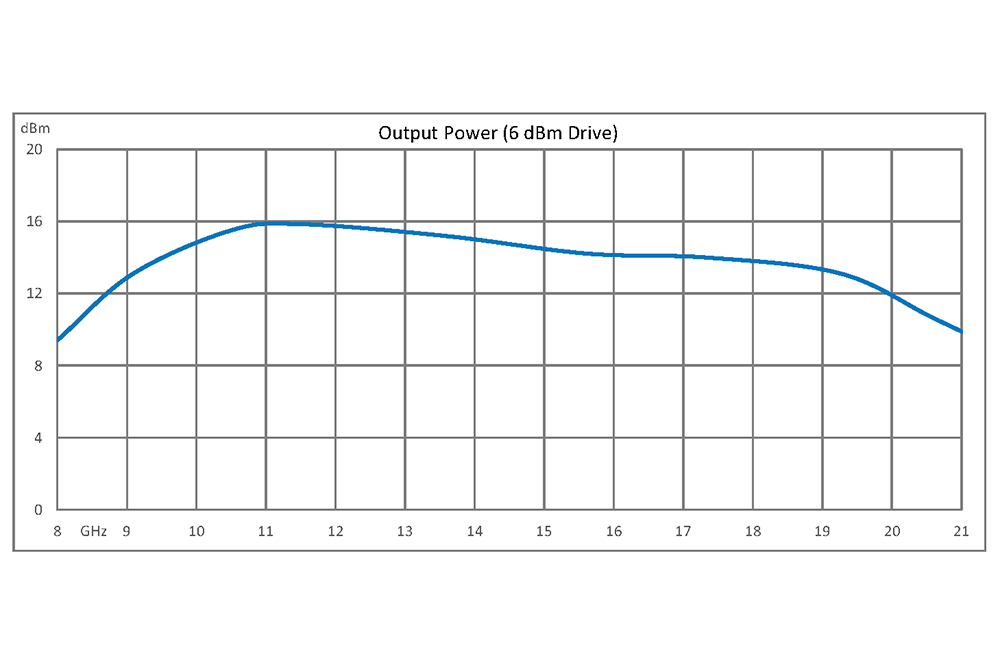

2x Frequency Multiplier Module, 8 GHz to 21 GHz Output Frequency, +10 dBm Output Power, Field Replaceable SMA   PE88X2003

4 to 10.5

8 to 21

0 to +6

+14

-142

16

- - -

+6

+5 / 102

  • descr2x Frequency Multiplier Module, 8 GHz to 21 GHz Output Frequency, +10 dBm Output Power, Field Replaceable SMA
  • descr2x Frequency Multiplier Module, 8 GHz to 21 GHz Output Frequency, +10 dBm Output Power, Field Replaceable SMA
  • descr2x Frequency Multiplier Module, 8 GHz to 21 GHz Output Frequency, +10 dBm Output Power, Field Replaceable SMA
  • descr2x Frequency Multiplier Module, 8 GHz to 21 GHz Output Frequency, +10 dBm Output Power, Field Replaceable SMA

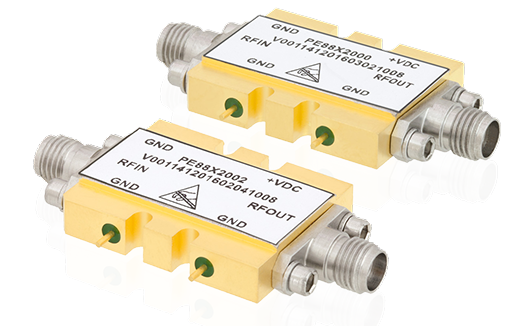

Active Frequency Multipliers with Output Frequency Coverage from 8 to 46 GHz

Pasternack’s PE88X series Active Frequency Multipliers simplify system designs by offering high output power levels and are important building block components used in local oscillator (LO) chains for radar, communication receivers and frequency sources to extend frequencies and achieve optimal performance.  They support multiple markets and applications including electronic warfare, electronic countermeasures, point-to-point radio, VSAT radio, test instrumentation and telecom infrastructure.

These active frequency (x2) multipliers double input frequencies ranging from 4 to 23 GHz up to desirable microwave and mm-wave output frequencies ranging from 8 GHz to 46 GHz. Additionally, these new designs use highly efficient GaAs PHEMT semiconductor technology with integrated amplifiers that produce high output power levels up to +17 dBm with excellent fundamental and harmonic suppression. This can eliminate the need for an external LO buffer amplifier stage and additional support circuitry.  Another key feature is low additive phase noise performance, as low as -142 dBc/Hz at 100 KHz offset.

The PE88X series frequency multipliers require a single +5V DC supply.  Input/output RF ports are matched for 50 ohms and are DC blocked. The compact drop-in package assemblies are hermetically sealed and support field replaceable 2.92mm connectors. All models are RoHS and Reach compliant and designed to meet MIL-STD environmental test conditions.
