GaN Input Protected Low Noise Amplifiers

  • GaN Semiconductor Technology
  • Broadband Frequencies ranging from 1 - 23 GHz
  • High RF input power handling up to 10 watts CW
  • High gain up to 44 dB typ
  • Low Noise Figure as low as 1.5 dB typ
  • Rugged Mil-Grade SMA Connectorized Packaging
All Available for Same-Day Shipping!
Part No. & Additional Views Frequency Band (GHz) Maximum Input Power (CW) (dBm) Small Signal Gain(dB) (Typ) Noise Figure (dB) (Typ) Output P1dB (dBm) (Typ) Saturated Output Power (Psat) (Typ) Output IP3(dBm) (Typ) DC Power(V/mA) (Typ) Connectors

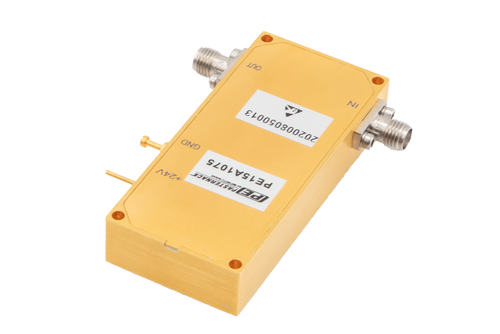

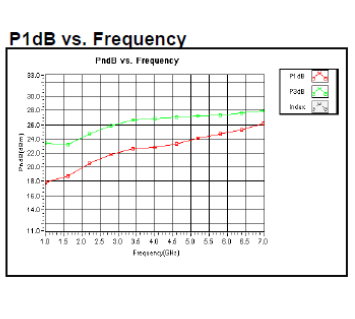

1.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 7 GHz with 42 dB Gain, 25 dBm Psat and SMA
descr 1.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 7 GHz with 42 dB Gain, 25 dBm Psat and SMA descr 1.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 7 GHz with 42 dB Gain, 25 dBm Psat and SMA
PE15A1075
descr 1.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 7 GHz with 42 dB Gain, 25 dBm Psat and SMA descr 1.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 7 GHz with 42 dB Gain, 25 dBm Psat and SMA
1 to 7 +30 42 1.5 +22 +25 +31 24/200 SMA

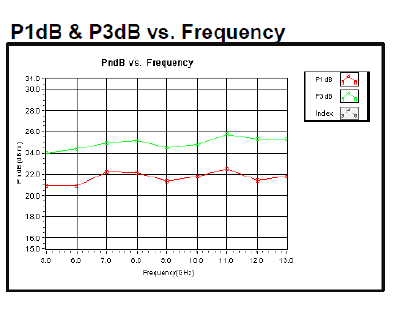

1.8 dB NF GaN Input Protected Low Noise Amplifier, Operating from 5 GHz to 13 GHz with 44 dB Gain, 25 dBm Psat and SMA
descr1.8 dB NF GaN Input Protected Low Noise Amplifier, Operating from 5 GHz to 13 GHz with 44 dB Gain, 25 dBm Psat and SMA descr1.8 dB NF GaN Input Protected Low Noise Amplifier, Operating from 5 GHz to 13 GHz with 44 dB Gain, 25 dBm Psat and SMA
PE15A1073
descr1.8 dB NF GaN Input Protected Low Noise Amplifier, Operating from 5 GHz to 13 GHz with 44 dB Gain, 25 dBm Psat and SMA descr1.8 dB NF GaN Input Protected Low Noise Amplifier, Operating from 5 GHz to 13 GHz with 44 dB Gain, 25 dBm Psat and SMA
5 to 13 +34 44 1.8 +22 +25 +31 24/160 SMA
3.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 23 GHz with 29 dB Gain, 23 dBm Psat and SMA
descr3.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 23 GHz with 29 dB Gain, 23 dBm Psat and SMA descr3.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 23 GHz with 29 dB Gain, 23 dBm Psat and SMA
PE15A1074
descr3.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 23 GHz with 29 dB Gain, 23 dBm Psat and SMA descr3.5 dB NF GaN Input Protected Low Noise Amplifier, Operating from 1 GHz to 23 GHz with 29 dB Gain, 23 dBm Psat and SMA
1 to 23 +40 29 3.5 +20 +23 +32 24/250 SMA

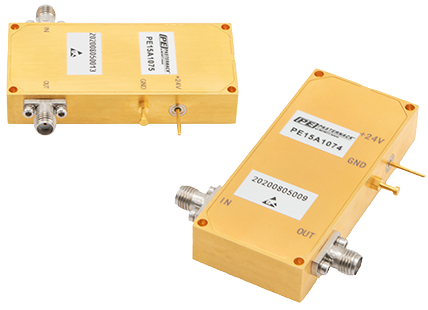

GaN Input Protected Low Noise Amplifiers from Pasternack

The new series of Gallium Nitride (GaN) input protected Low Noise Amplifiers from Pasternack (also known as LNA) is featured in our extensive in-stock RF amplifier selection. Our connectorized GaN low noise amplifiers use SMA connectors at 50 Ohm. The SMA GaN input protected amplifier has a minimum frequency of 1 GHz and a maximum frequency of 23 GHz. The significantly low noise figure of this radio frequency amplifier is as low as 1.5 dB with a typical gain of up to 44 dB.

GaN input protected LNA amplifiers are rated at 28 Volts DC maximum and 300 mA. Our GaN input protected low noise radio frequency LNA amplifiers are part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. This coaxial millimeter wave GaN input protected low noise amplifiers can ship worldwide the same day of the purchase as with our other available RF parts.
