Relays are in stock and ship same-day

  • Waveguide Electromechanical Relay Switch Models Cover C, X, Ku, K, Ka Frequency Bands up to 40 GHz
  • SPDT and Optional DPDT Waveguide Switch Configurations with Latching Self Cut-Off Actuators, TTL Logic, and Position Indicators with Manual Override
  • Electromechanical Waveguide Switch Incorporates Patented Motor Drive with Arc Suppression
  • Switch Designs Support WR-137, WR-112, WR-90, WR-75, WR-62, WR-42, and WR-28 Waveguide Sizes with O Rings for Pressurized Operation
  • Power Handling Capability up to 12 kW CW and 320 kW Peak
  • Environmentally Sealed Quick Connect DC Control Connector & Mate Included
  • Fully Weatherized Rugged Waveguide Relay Switch Package Designed for 100% Humidity Exposure and -40°C to +85°C Operating Temperature


Part No.
additional views

Frequency
(GHz)

Insertion Loss,
Typ (dB)

Isolation,
Typ (dB)

Max Input
CW Power
(Watts)

Max Input
Peak Power**
(KWatts)

Switching
Speed Typ
(ms)

Waveguide

/ Size

Control Voltage
(Volts)

DC Current
(mA)

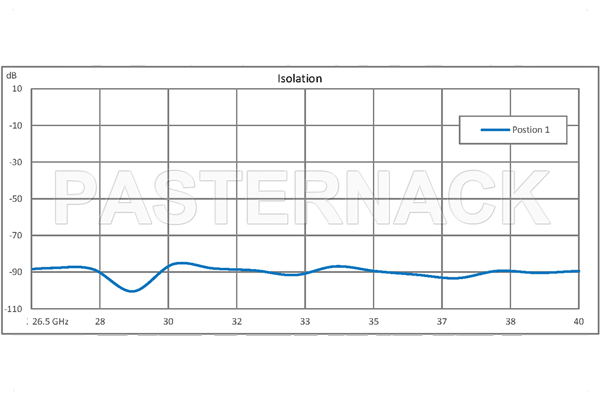

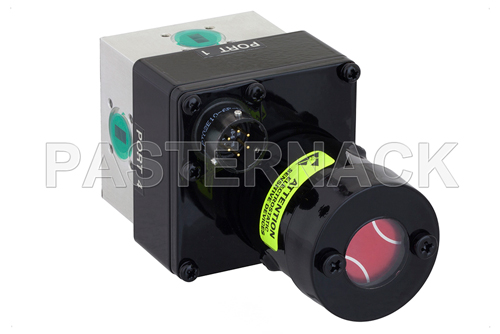

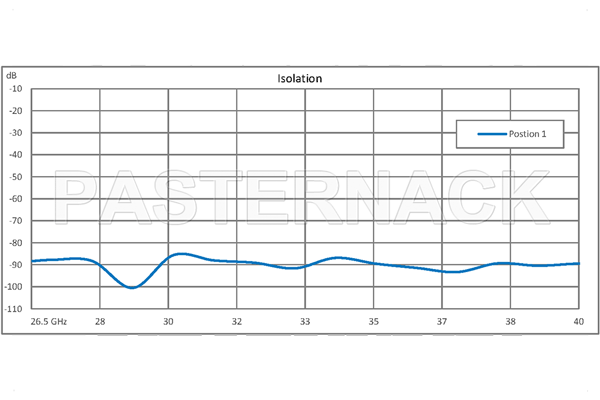

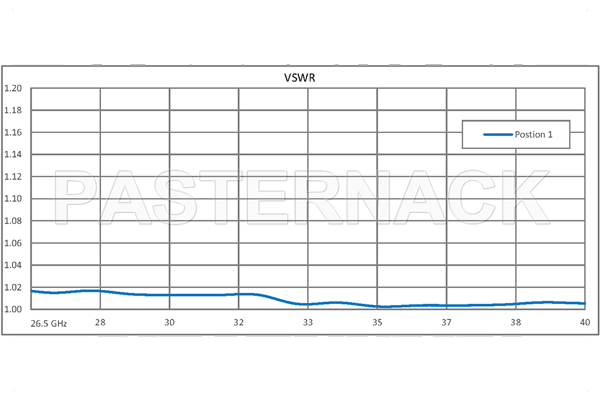

WR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange   PEWGS6000

26.5-40

0.12

90

550

13.3

61

WR-28

28

160

  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange

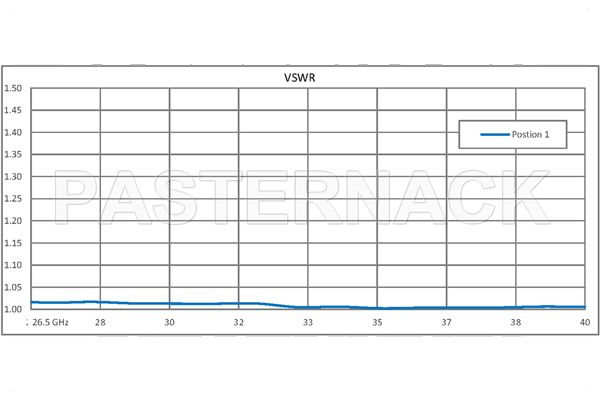

WR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange   PEWGS6001

26.5-40

0.12

90

550

13.3

61

WR-28

28

160

  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange



WR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange   PEWGS6002

26.5-40

0.12

90

550

13.3

61

WR-28

12

345

  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange



WR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange   PEWGS6003

26.5-40

0.12

90

550

13.3

61

WR-28

12

345

  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange
  • descrWR-28 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ka Band 40 GHz Max Frequency, 550 Watts, UG-599/U Square Cover Flange

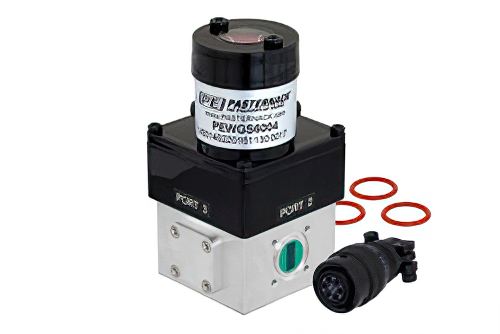

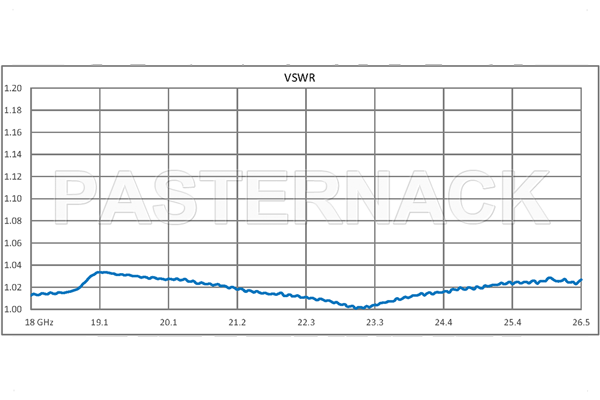

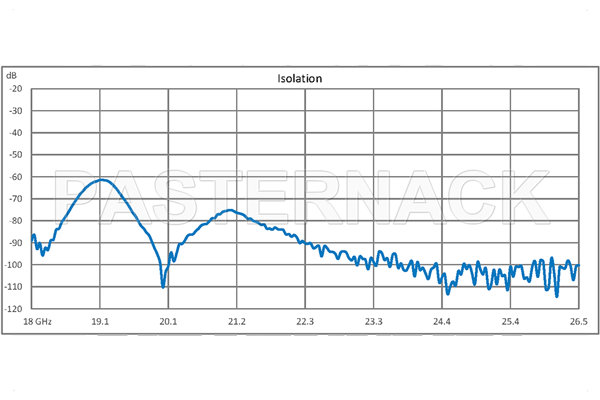

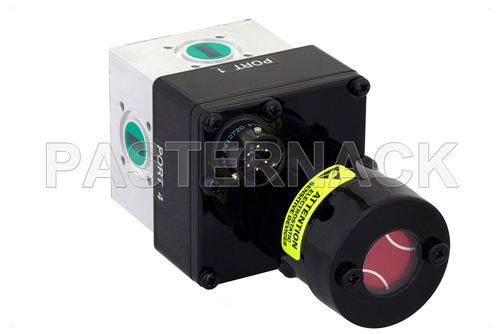

WR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange   PEWGS6004

18-26.5

0.13

90

800

25.3

54

WR-42

28

190

  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange



WR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange   PEWGS6005

18-26.5

0.13

90

800

25.3

54

WR-42

28

190

  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange



WR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange   PEWGS6006

18-26.5

0.13

90

800

25.3

54

WR-42

12

390

  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange



WR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange   PEWGS6007

18-26.5

0.13

90

800

25.3

54

WR-42

12

390

  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange
  • descrWR-42 Waveguide Electromechanical Relay SPDT Latching TTL Switch, K Band 26.5 GHz Max Frequency, 800 Watts, UG-595/U Square Cover Flange

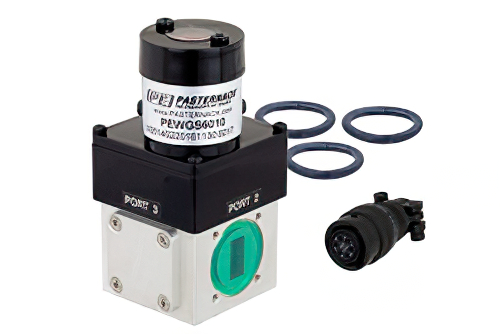

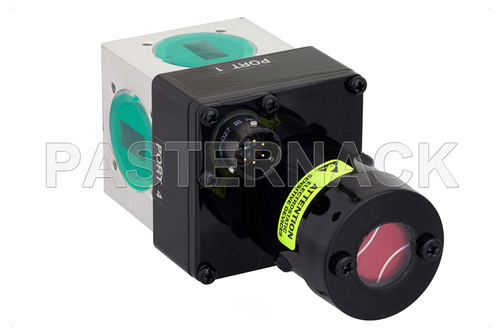

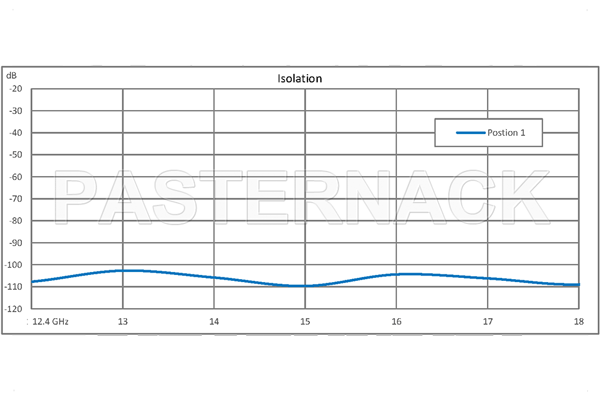

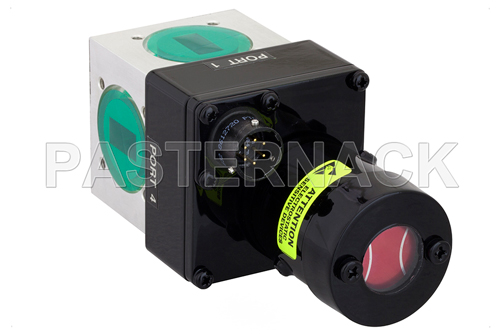

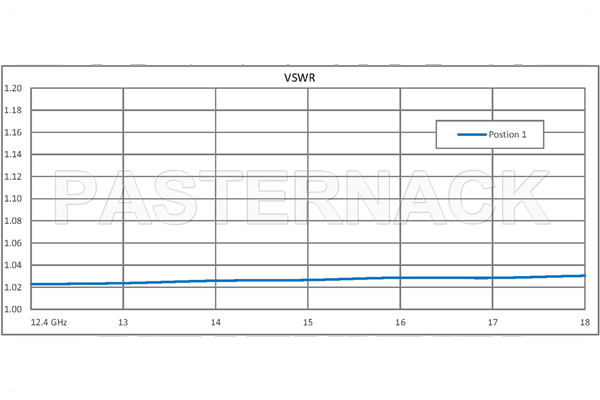

WR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange   PEWGS6008

12.4-18

0.08

105

2000

70

67

WR-62

28

160

  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange

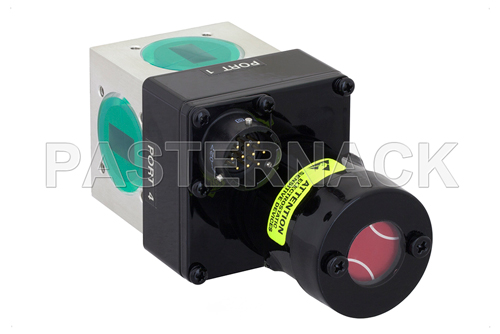

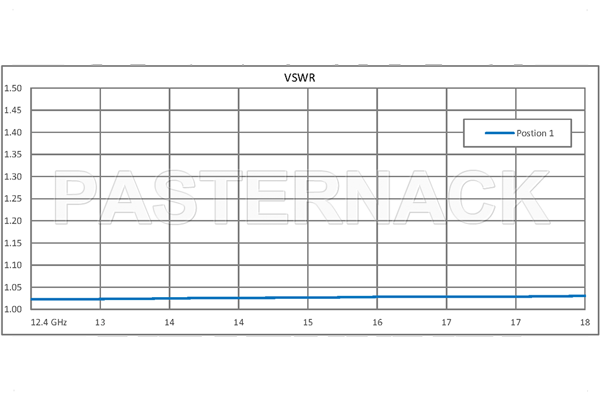

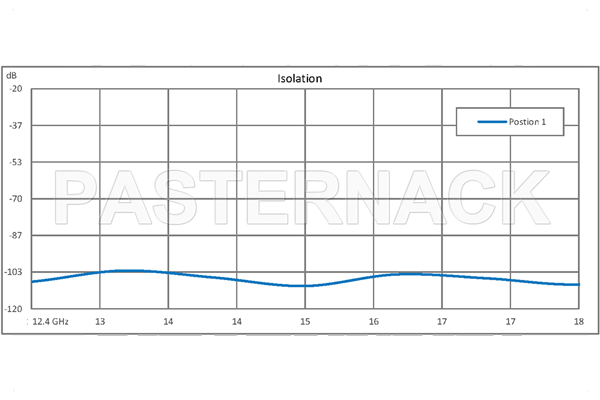

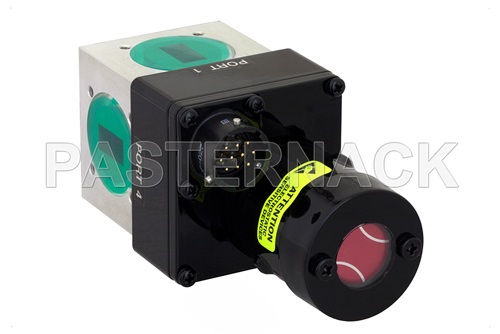

WR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange   PEWGS6009

12.4-18

0.08

105

2000

70

67

WR-62

28

160

  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange



WR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange   PEWGS6010

12.4-18

0.08

105

2000

70

67

WR-62

12

345

  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange



WR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange   PEWGS6011

12.4-18

0.08

105

2000

70

67

WR-62

12

345

  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange
  • descrWR-62 Waveguide Electromechanical Relay SPDT Latching TTL Switch, Ku Band 18 GHz Max Frequency, 2,000 Watts, UG-419/U Square Cover Flange

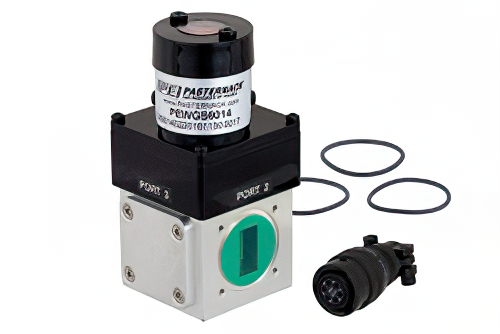

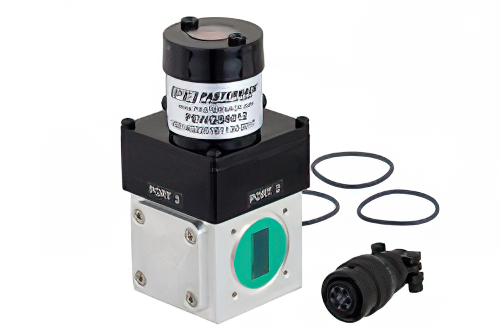

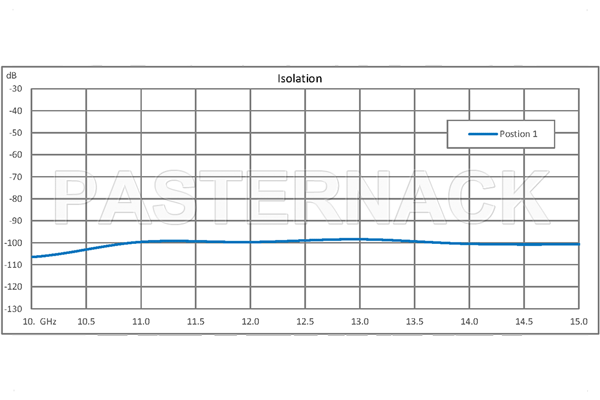

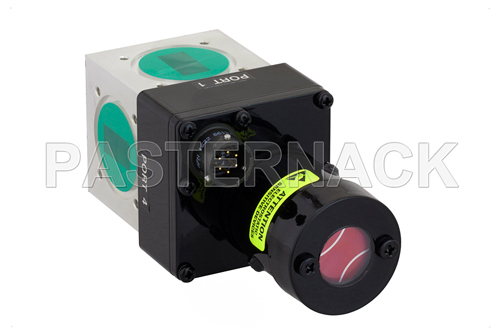

WR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange   PEWGS6012

10-15

0.04

100

3500

100

72

WR-75

28

180

  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange

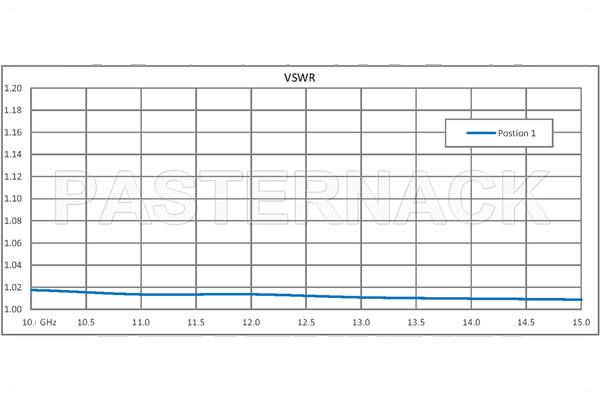

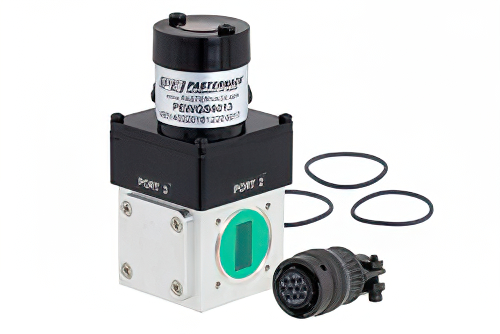

WR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange   PEWGS6013

10-15

0.04

100

3500

100

72

WR-75

28

180

  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange



WR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange   PEWGS6014

10-15

0.04

100

3500

100

72

WR-75

12

350

  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange



WR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange   PEWGS6015

10-15

0.04

100

3500

100

72

WR-75

12

350

  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange
  • descrWR-75 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X, Ku Band 15 GHz Max Frequency, 3,500 Watts, Square Cover Flange

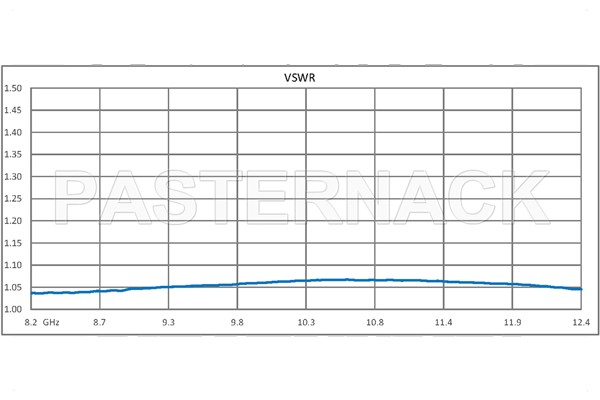

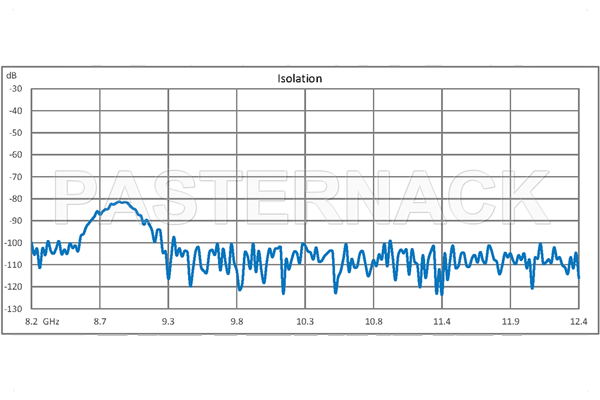

WR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange   PEWGS6016

8.2-12.4

0.05

105

5000

123

60

WR-90

28

200

  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange



WR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange   PEWGS6017

8.2-12.4

0.05

105

5000

123

60

WR-90

28

200

  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange



WR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange   PEWGS6018

8.2-12.4

0.05

105

5000

123

60

WR-90

12

295

  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange

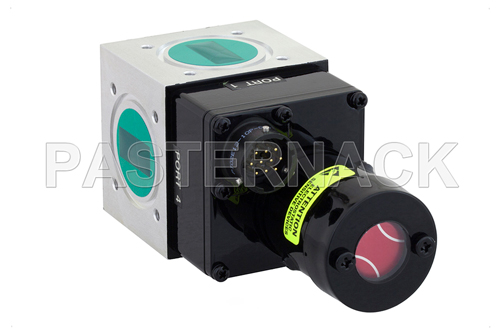

WR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange   PEWGS6019

8.2-12.4

0.05

105

5000

123

60

WR-90

12

295

  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange
  • descrWR-90 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 12.4 GHz Max Frequency, 5,000 Watts, UG-39/U Square Cover Flange

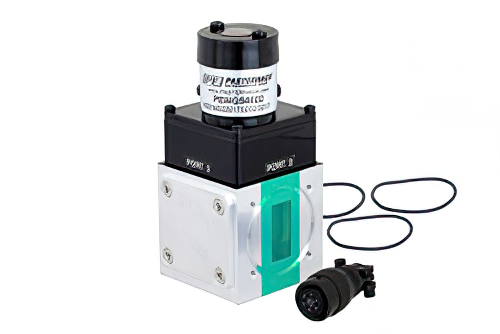

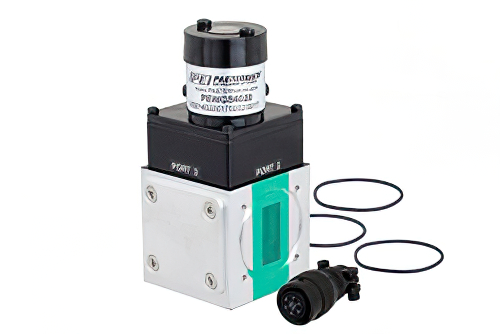

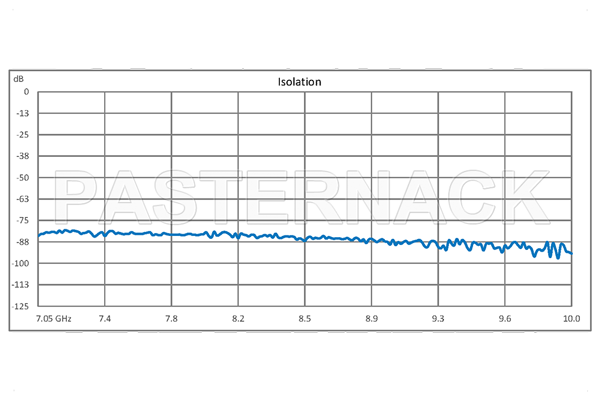

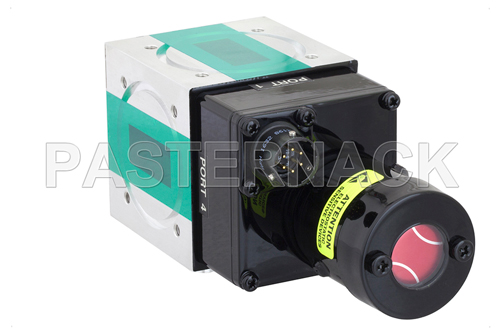

WR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange   PEWGS6020

7.05-10

0.02

85

7000

202

76

WR-112

28

180

  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange

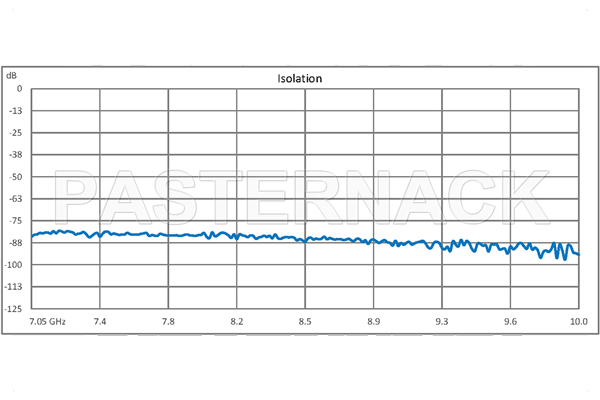

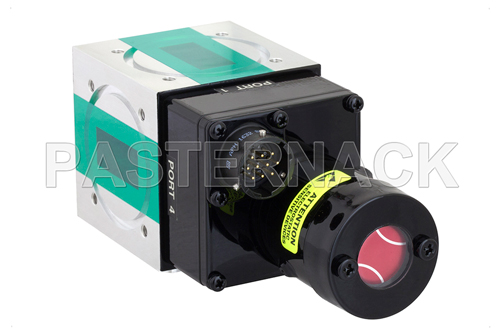

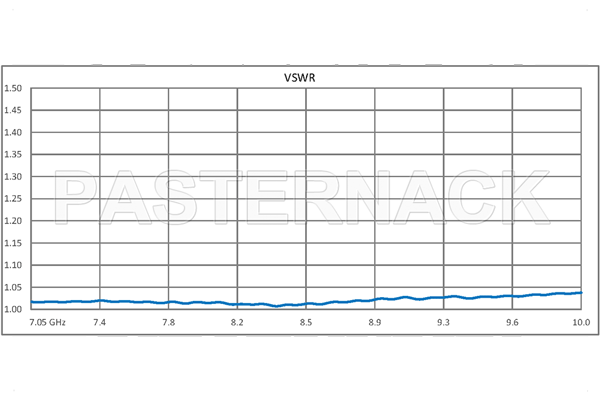

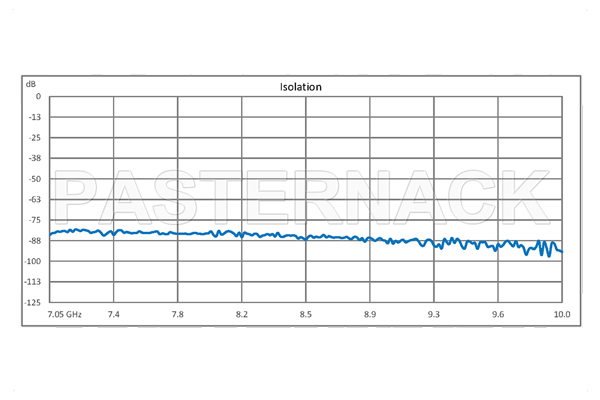

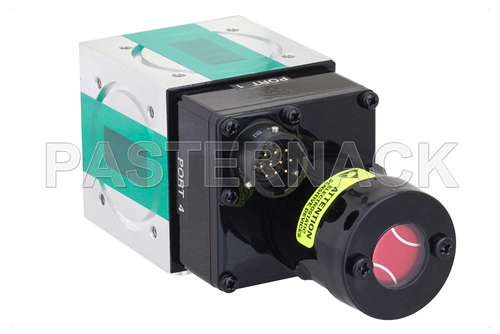

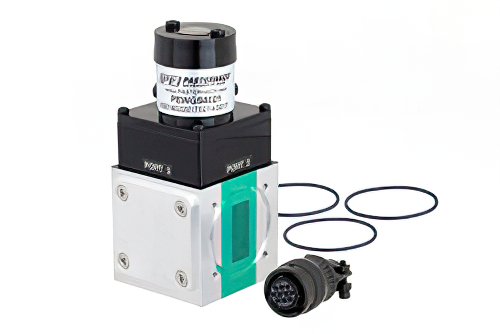

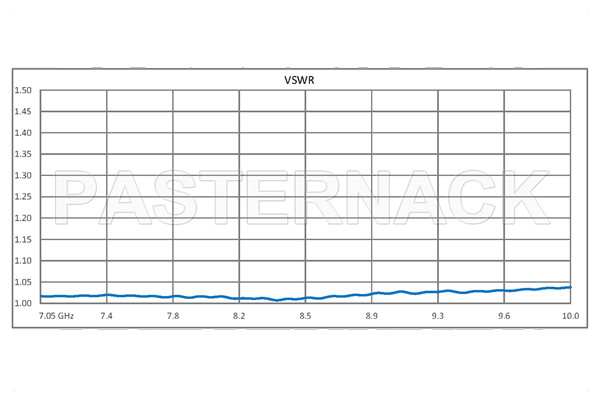

WR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange   PEWGS6021

7.05-10

0.02

85

7000

202

76

WR-112

28

180

  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange



WR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange   PEWGS6022

7.05-10

0.02

85

7000

202

76

WR-112

12

380

  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange

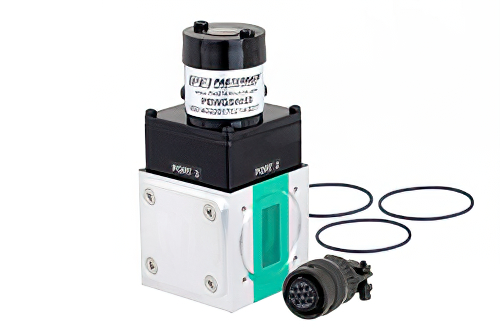

WR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange   PEWGS6023

7.05-10

0.02

85

7000

202

76

WR-112

12

380

  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange
  • descrWR-112 Waveguide Electromechanical Relay SPDT Latching TTL Switch, X Band 10 GHz Max Frequency, 7,000 Watts, UG-51/U Square Cover Flange

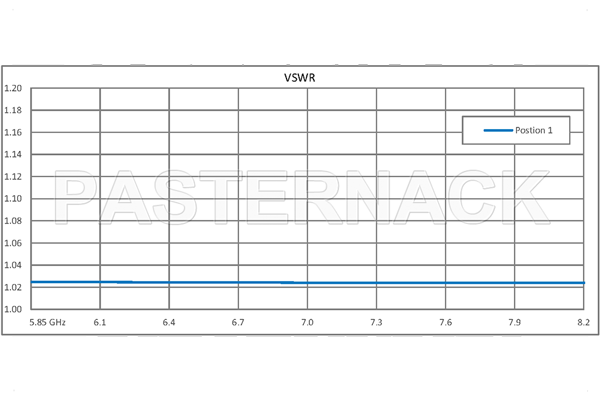

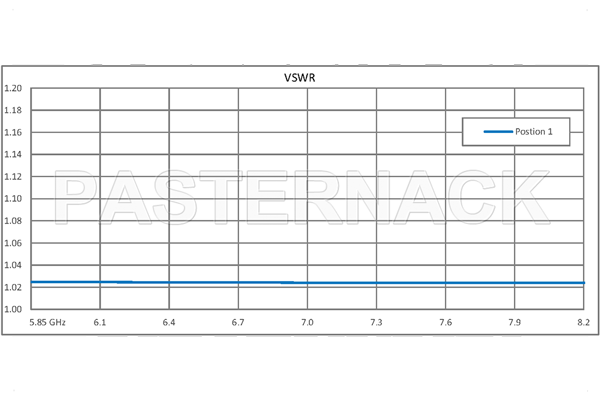

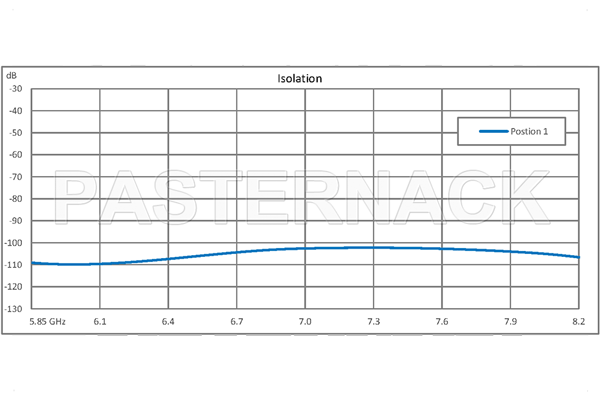

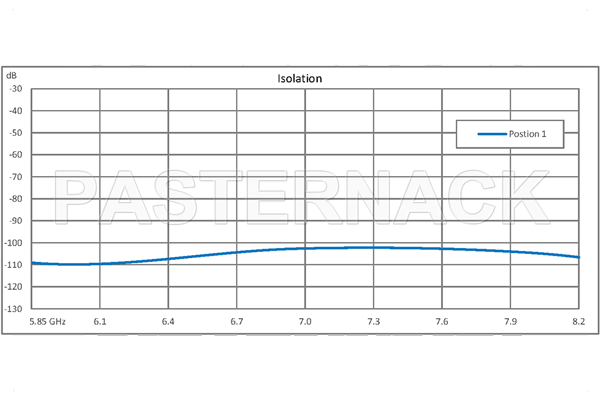

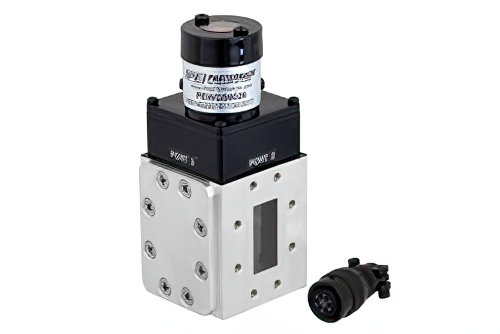

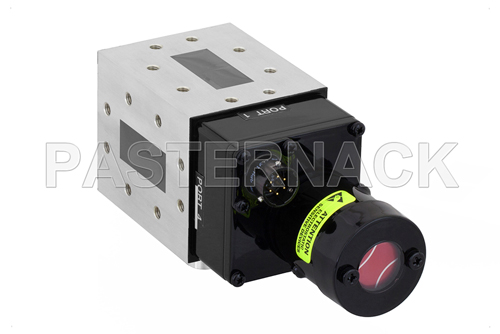

WR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange   PEWGS6024

5.85-8.2

0.012

105

12000

320

56

WR-137

28

180

  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange



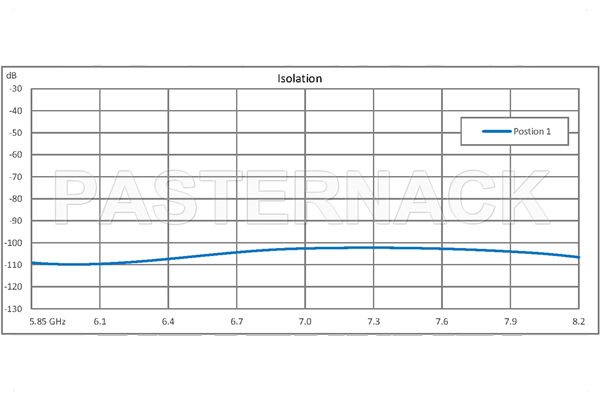

WR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange   PEWGS6025

5.85-8.2

0.012

105

12000

320

56

WR-137

28

180

  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange



WR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange   PEWGS6026

5.85-8.2

0.012

105

12000

320

56

WR-137

12

350

  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange

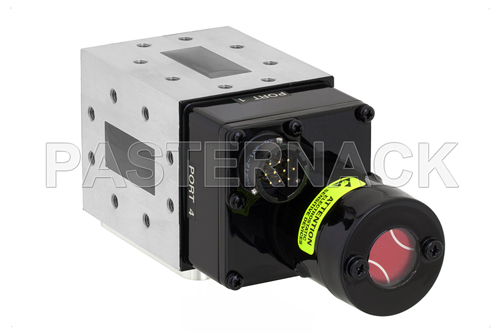

WR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange   PEWGS6027

5.85-8.2

0.012

105

12000

320

56

WR-137

12

350

  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange
  • descrWR-137 Waveguide Electromechanical Relay SPDT Latching TTL Switch, C Band 8.2 GHz Max Frequency, 12,000 Watts, CPR-137F Flange



**UNPRESSURIZED, 10% DUTY CYCLE

Waveguide Electromechanical Relay Switch Series up to 40 GHz

Pasternack’s waveguide electromechanical relay switch series offers full waveguide performance covering C-band, X-band, Ku-band, K-band and Ka-band frequencies. The frequency range covered by all waveguide relay switch components is from 5.85 GHz to 40 GHz. Waveguide electromechanical relay switches are ideal for applications that include electronic warfare, electronic countermeasures, microwave radio, VSAT, SATCOM, radar, research and development, space systems and test instrumentation.

These waveguide electromechanical relay switches are configured for single-pole double-throw (SPDT) operation with latching self-cut-off actuators, TTL logic and position indicators with manual override. A shorting plate can be removed from the waveguide switches for optional double-pole double-throw (DPDT) operation.

All relay electromechanical waveguide switch components incorporate a patented motor drive with arc suppression and include an environmentally sealed quick-connect DC control connector and mate.

The compact package design features integrated waveguide ports with grooved flanges and O-rings included for pressurized operation (up to 30 PSIG).  A broad selection of popular waveguide sizes includes WR137, WR112, WR90, WR75, WR62, WR42 and WR28.

For a complete list of Pasternack's products please click here

© Pasternack Enterprises, Inc. 1999-2018



Toll-free: 866-PASTERNACK (866-727-8376)

Phone: 949-261-1920

Fax: 949-261-7451


Part No.
additional views

Frequency
(GHz)

Insertion Loss,
Typ (dB)

Isolation,
Typ (dB)

Max Input
CW Power
(Watts)

Max Input
Peak Power**
(KWatts)

Switching
Speed Typ
(ms)

Waveguide

/ Size

Control Voltage
(Volts)

DC Current
(mA)
