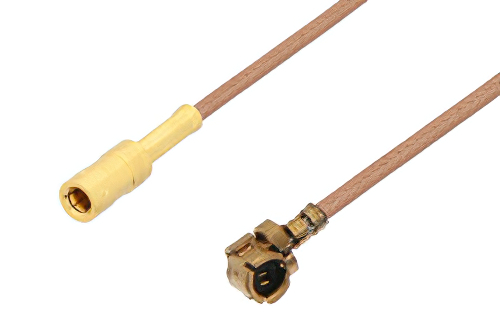

UMCX Plug to SSMB Plug Cable 9 Inch Length Using RG178 Coax

Product ID: PE38930-9
UMCX Plug to SSMB Plug Cable 9 Inch Length Using RG178 Coax

Image Views:  UMCX Plug to SSMB Plug Cable 9 Inch Length Using RG178 Coax high resolution
Zoom


Click for:PE38930-9 Datasheet
Available Quantity: 838
Standard Lengths
3 in.6 in.12 in.18 in.24 in.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.
Pricing Table
QUANTITYPRICE
1-24$94.30
25-49$89.59
50-99$84.87
100-249$81.10
250+Call

Add to cart
Quantity:

All Prices are in US Dollars and do not include duties
This item may be subject to an additional Tariff Surcharge of 5.0% each for US customers, which will be applied at checkout.

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1UMCX
Connector Gender 1Plug
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150
Connector Series 2SSMB
Connector Gender 2Plug
Connector Polarity 2Standard
Connector Angle 2Straight
Connector Mount Method 2None
Connector Impedance 250
RF Cable Part NumberRG178B/U
RF Cable TypeRG178
RF Cable Impedance50


UMCX Plug to SSMB Plug Cable 9 Inch Length Using RG178 Coax

PE38930-9 is a UMCX plug right angle to SSMB plug cable using RG178 coax. This Pasternack UMCX plug right angle to SSMB plug cable assembly uses a 50 Ohm UMCX for connector 1 and a 50 Ohm SSMB for connector 2. UMCX right angle to SSMB coaxial cable assembly uses 90 degree right angle coax cable connector.

Our plug UMCX right angle to plug SSMB cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE38930-9 UMCX plug right angle to SSMB plug cable assembly is constructed with RG178 coax.
