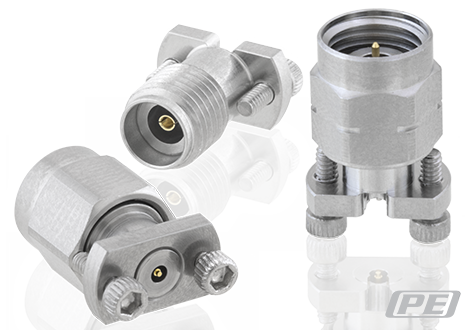

Vertical Launch Solderless Connectors

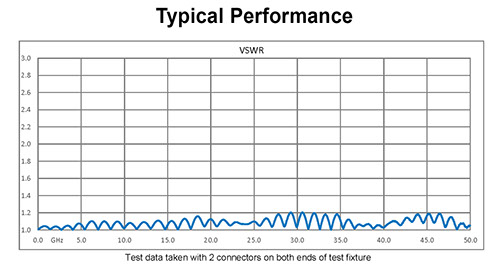

  • Excellent VSWR of 1.3:1
  • Frequencies up to 50 GHz
  • Reusable Clamp Attachment
  • For Microstrip or Stripline
  • Solderless Installation

Vertical Launch Solderless Connectors
are In-stock and ready to ship!

Vertical Launch Solderless Connectors

2.92mm Vertical Launch Solderless Connectors

2.92mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
2.92mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
2.92mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch
2.92mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch
2.92mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
2.92mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
2.92mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch
2.92mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch

2.4mm Vertical Launch Solderless Connectors

2.4mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
2.4mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
2.4mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch
2.4mm Female Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch
2.4mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
2.4mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
2.4mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch
2.4mm Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch

SMA Vertical Launch Solderless Connectors

SMA Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
SMA Female Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
SMA Female Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch
SMA Female Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch
SMA Male Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
SMA Male Connector Clamp Attachment Vertical Launch PCB, Removable Stripline Launch
SMA Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch
SMA Male Connector Clamp Attachment Vertical Launch PCB, Removable Microstrip Launch

Vertical Launch Solderless Connectors from Pasternack

Pasternack’s vertical launch connectors consists of 12 models that provide VSWR as low as 1.3:1 and maximum operating frequency of up to 50 GHz, depending on the model. These launches boast a reusable clamp attachment and can be used for microstrip or stripline.

They are offered in male and female versions, covering 2.4mm, 2.92mm and SMA interfaces, and all models provide solderless installation. These removable vertical launch connectors feature a stainless steel outer conductor, gold-plated beryllium copper center contact and Polyetherimide (PEI) insulators.

These vertical launch connectors are ideal for high-speed backplanes, signal integrity measurements, semiconductor verification boards, multi-channel tests and SERDES applications.

Pasternack’s solderless vertical launch connectors are in stock and ready for immediate shipment with no minimum order quantity.
