SMA Male to N Male Right Angle Cable Using PE-SR402FL Coax

Product ID: PE3W00507

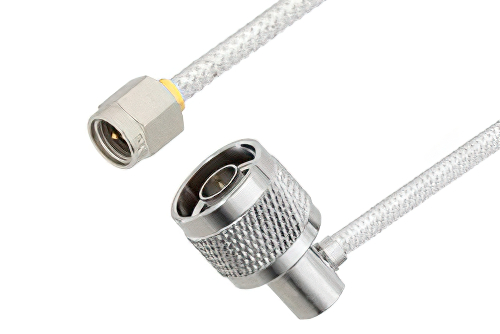

SMA Male to N Male Right Angle Cable Using PE-SR402FL Coax

Image Views:  SMA Male to N Male Right Angle Cable Using PE-SR402FL Coax high resolution
Zoom


Click for:PE3W00507 Datasheet
Please Enter Length to Calculate Price
Standard Lengths
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
Custom Length
SHIPS SAME DAY
Length:
*Lengths are rounded up to the nearest quarter of inch or centimeter respectively. For precise lengths, please call
866-727-8376.

Click on the below images to access KitBOM product pages:


PE4112PE-SR402FLPE44703KitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Straight
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2N
Connector Gender 2Male
Connector Polarity 2Standard
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberPE-SR402FL
RF Cable TypePE-SR402FL
RF Cable Impedance50 Ohm


SMA Male to N Male Right Angle Cable Using PE-SR40

PE3W00507 is a SMA male to N male right angle cable using PE-SR402FL coax. This Pasternack SMA male to N male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm N for connector 2. SMA to N right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA to male N right angle cable assembly uses a formable cable type that is 50 Ohm. Pasternack PE3W00507 SMA male to N male right angle cable assembly is constructed with PE-SR402FL coax.
