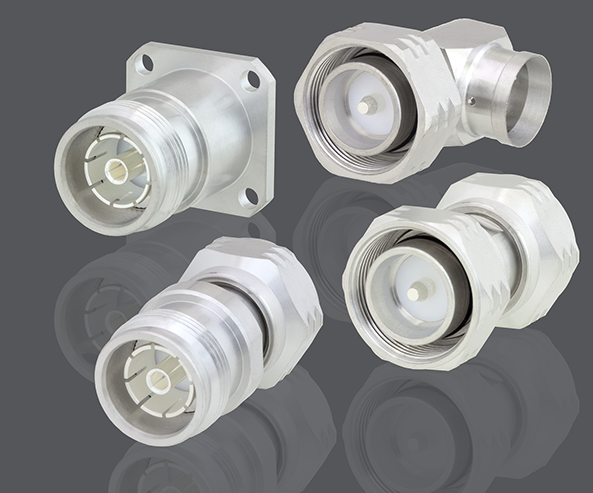

4.3-10 Connectors and Adapters from Pasternack

4.3-10 Connectors
and Adapters

4.3-10 in stock & ready for same-day shipping!

4.3-10 Features

  • Max. Operating Frequency of 6 GHz
  • Excellent VSWR as low as 1.08:1
  • IP 67 (Mated)
  • Low Coupling Torque
  • Low-PIM rating of -166 dBc


4.3-10 Applications

  • Custom Cable Assemblies
  • Feeder Cables
  • Mobile Communications Systems
  • Base Stations
  • Distributed Antenna Systems (DAS)
  • Small Cells

4.3-10 Connector Series

4.3-10 Male Low PIM Push-On Connector Clamp/Solder Attachment for RG213, RG8, RG225, RG214, RG393, IP67 Rated
4.3-10 Male Low PIM Push-On Connector Clamp/Solder Attachment for RG213, RG8, RG225, RG214, RG393, IP67 Rated
4.3-10 Male Low PIM Connector Clamp/Solder Attachment for RG213, RG8, RG225, RG214, RG393, IP67 Rated
4.3-10 Male Low PIM Connector Clamp/Solder Attachment for RG213, RG8, RG225, RG214, RG393, IP67 Rated
4.3-10 Male Low PIM Push-On Connector Solder Attachment for PE-1/4SFHC, IP67 Rated
4.3-10 Male Low PIM Push-On Connector Solder Attachment for PE-1/4SFHC, IP67 Rated
4.3-10 Male Low PIM Connector Solder Attachment for PE-1/4SFHC, IP67 Rated
4.3-10 Male Low PIM Connector Solder Attachment for PE-1/4SFHC, IP67 Rated
4.3-10 Male Low PIM Connector Solder Attachment for PE-1/2SFHC, IP67 Rated
4.3-10 Male Low PIM Connector Solder Attachment for PE-1/2SFHC, IP67 Rated
4.3-10 Male Low PIM Push-On Connector Solder Attachment for PE-1/2SFHC, IP67 Rated
4.3-10 Male Low PIM Push-On Connector Solder Attachment for PE-1/2SFHC, IP67 Rated
4.3-10 Male Low PIM Push-On Connector Solder Attachment for RG402, PE-SR402AL, PE-SR402FL, PE-SR402FLJ, IP67 Rated
4.3-10 Male Low PIM Push-On Connector Solder Attachment for RG402, PE-SR402AL, PE-SR402FL, PE-SR402FLJ, IP67 Rated
4.3-10 Male Right Angle Low PIM Connector Solder Attachment for PE-1/2SFHC, IP67 Rated
4.3-10 Male Right Angle Low PIM Connector Solder Attachment for PE-1/2SFHC, IP67 Rated
4.3-10 Male Right Angle Low PIM Push-On Connector Solder Attachment for RG402, PE-SR402AL, PE-SR402FL, PE-SR402FLJ, IP67 Rated
4.3-10 Male Right Angle Low PIM Push-On Connector Solder Attachment for RG402, PE-SR402AL, PE-SR402FL, PE-SR402FLJ, IP67 Rated
4.3-10 Female Low PIM Connector Solder Attachment 4 Hole Flange Mount for RG402, PE-SR402AL, PE-SR402FL, PE-SR402FLJ, IP67 Rated
4.3-10 Female Low PIM Connector Solder Attachment 4 Hole Flange Mount for RG402, PE-SR402AL, PE-SR402FL, PE-SR402FLJ, IP67 Rated
4.3-10 Female Low PIM Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, IP67 Rated
4.3-10 Female Low PIM Connector Solder Attachment 4 Hole Flange Mount Solder Cup Terminal, IP67 Rated

4.3-10 Adapter Series

Low PIM 4.3-10 Female to 4.3-10 Female Adapter
Low PIM 4.3-10 Female to 4.3-10 Female Adapter
Low PIM 4.3-10 Male to 4.3-10 Female Adapter
Low PIM 4.3-10 Male to 4.3-10 Female Adapter
Low PIM N Male to 4.3-10 Female Adapter
Low PIM N Male to 4.3-10 Female Adapter
Low PIM 4.3-10 Male to N Female Adapter
Low PIM 4.3-10 Male to N Female Adapter
Low PIM 7/16 DIN Male to 4.3-10 Female Adapter
Low PIM 7/16 DIN Male to 4.3-10 Female Adapter
Low PIM 7/16 DIN Female to 4.3-10 Male Adapter
Low PIM 7/16 DIN Female to 4.3-10 Male Adapter

4.3-10 Connector and Adapter Interconnect Series from Pasternack

Pasternack’s 4.3-10 connector and adapter series feature low coupling torque and low-PIM performance of 166 dBc typical. An IP67 rating of this 4.3-10 connector and adapter product line ensures that, when mated, they are protected from dust and temporary moisture under immersion. These connectors and adapters are made with silver-plated center contacts and a corrosion-resistant tri-metal finish on the body and outer conductors.

These 4.3/10 adapters and connectors have an IEC 61169-54 compliant interface. 4.3-10 connector and adapter interconnects boast 30 percent reduction in footprint when compared to 7/16 DIN connectors and adapters.

The Pasternack 4.3-10 connector series as well as 4.3-10 adapter series support a maximum operating frequency of 6 GHz. In addition to this impressive max. frequency, these 4.3/10 interconnects feature a VSWR as low as 1.08:1. Typical applications include custom cable assemblies, feeder cables, mobile communications systems, base stations, distributed antenna systems (DAS) and small cells.

As with the other over 40,000 RF, microwave and millimeter wave products from Pasternack, these 4.3-10 connector and 4.3-10 adapter series are in-stock. In addition to being in stock, the 4.3/10 connectors and adapters will ship the same day as they are purchased.
