High Power Signal Limiters
  • Broadband Frequency Coverage from 20 MHz to 40 GHz
  • 13 Different Models Offer Comprehensive Performance Features
  • CW Input Power Rated up to 5 watts
  • Peak Power Handling Capability of 200 Watts
  • Flat Leakage Power Ranges from +10 dBm to +18 dBm
  • Compact Packages with Field Replaceable Connectors and
    Thru Mounting Holes
  • Models are Designed to Meet MIL-STD-202 Test Conditions

Available for Same-Day Shipping!

Click here to view our complete line of limiters


Part No.
additional
views

Frequency
Range
(GHz)

Insertion
Loss
(dB)

Input
Power (CW)
(Watts)

Peak
Power
(W)

Flat
Leakage
(dBm)

VSWR

Limiting
Threshold
(dBm)

Recovery
Time
(µsec)

Input/Output
Connector
Type

High Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 20 MHz to 4 GHz   PE80L2003

0.02 to 4

0.8

2

100*

13

1.8:1

10

15

Female/Female Field
Replacable SMA
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 20 MHz to 4 GHz
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 20 MHz to 4 GHz
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 20 MHz to 4 GHz

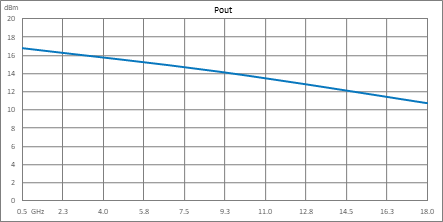

High Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 500 MHz to 18 GHz   PE80L2005

0.5 to 18

2

5

100*

18

1.8:1

14

15

Female/Female Field
Replacable SMA
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 500 MHz to 18 GHz
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 500 MHz to 18 GHz
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 500 MHz to 18 GHz

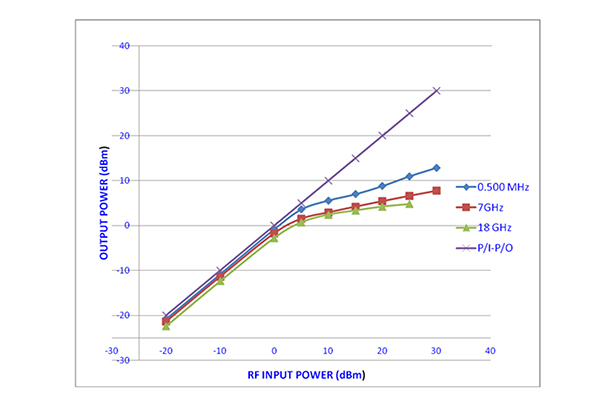

SMA High Power Limiter, 100 Watts Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 500 MHz to 18 GHz   PE80L1000

0.5 to 18

1.5

1

100**

10

1.5:1

10

0.01

Female/Female Field
Replacable SMA
  • descrSMA High Power Limiter, 100 Watts Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 500 MHz to 18 GHz
  • descrSMA High Power Limiter, 100 Watts Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 500 MHz to 18 GHz
  • descrSMA High Power Limiter, 100 Watts Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 500 MHz to 18 GHz

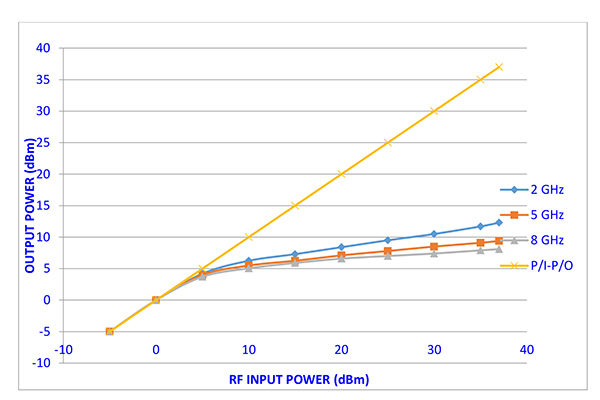

SMA High Power Limiter, 100 Watts Peak Power, 40 ns Recovery, 13 dBm Flat Leakage, 2 GHz to 8 GHz   PE80L1001

2 to 8

1

5

100**

13

2.0:1

- - -

0.04

Female/Female Field
Replacable SMA
  • descrSMA High Power Limiter, 100 Watts Peak Power, 40 ns Recovery, 13 dBm Flat Leakage, 2 GHz to 8 GHz
  • descrSMA High Power Limiter, 100 Watts Peak Power, 40 ns Recovery, 13 dBm Flat Leakage, 2 GHz to 8 GHz
  • descrSMA High Power Limiter, 100 Watts Peak Power, 40 ns Recovery, 13 dBm Flat Leakage, 2 GHz to 8 GHz

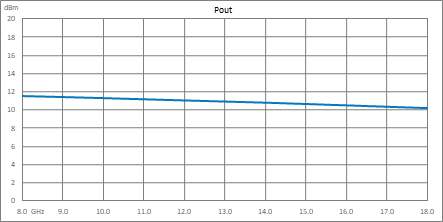

High Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz   PE80L2006

2 to 18

2.5

5

100*

14

2.0:1

6

15

Male/Female Field
Replacable SMA
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz


SMA High Power Limiter, 200 Watts Peak Power, 100 ns Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz   PE80L2001

2 to 18

2

1

200**

14

2.0:1

6

0.1

Male/Female Field
Replacable SMA
  • descrSMA High Power Limiter, 200 Watts Peak Power, 100 ns Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz
  • descrSMA High Power Limiter, 200 Watts Peak Power, 100 ns Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz
  • descrSMA High Power Limiter, 200 Watts Peak Power, 100 ns Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz


SMA High Power Limiter, 200 Watts Peak Power, 100 ns Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz   PE80L3000

2 to 18

2

1

200**

14

2.0:1

6

0.01

Male/Female Field
Replacable SMA
  • descrSMA High Power Limiter, 200 Watts Peak Power, 100 ns Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz
  • descrSMA High Power Limiter, 200 Watts Peak Power, 100 ns Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz
  • descrSMA High Power Limiter, 200 Watts Peak Power, 100 ns Recovery, 14 dBm Flat Leakage, 2 GHz to 18 GHz

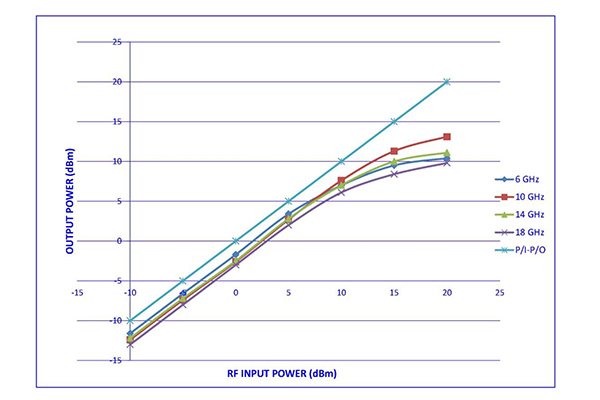

SMA High Power Limiter, 100 Watts Peak Power, 12 ns Recovery, 15 dBm Flat Leakage 6 GHz to 18 GHz   PE80L2000

6 to 18

2.5

10

100**

15

2.0:1

- - -

0.012

Female/Female Field
Replacable SMA
  • descrSMA High Power Limiter, 100 Watts Peak Power, 12 ns Recovery, 15 dBm Flat Leakage 6 GHz to 18 GHz
  • descrSMA High Power Limiter, 100 Watts Peak Power, 12 ns Recovery, 15 dBm Flat Leakage 6 GHz to 18 GHz
  • descrSMA High Power Limiter, 100 Watts Peak Power, 12 ns Recovery, 15 dBm Flat Leakage 6 GHz to 18 GHz


High Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 8 GHz to 12 GHz   PE80L2004

8 to 12

1.2

3

100*

18

1.8:1

15

15

Female/Female Field
Replacable SMA
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 8 GHz to 12 GHz
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 8 GHz to 12 GHz
  • descrHigh Power Limiter, Field Replaceable SMA, 100W Peak Power, 15 us Recovery, 18 dBm Flat Leakage, 8 GHz to 12 GHz

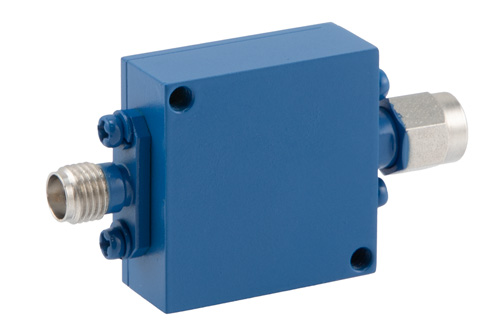

SMA High Power Limiter, 100 Watts Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 12 GHz to 18 GHz   PE80L4000

12 to 18

1.5

1

100**

10

1.5:1

- - -

0.01

Male/Female Field
Replacable SMA
  • descrSMA High Power Limiter, 100 Watts Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 12 GHz to 18 GHz
  • descrSMA High Power Limiter, 100 Watts Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 12 GHz to 18 GHz
  • descrSMA High Power Limiter, 100 Watts Peak Power, 10 ns Recovery, 14 dBm Flat Leakage, 12 GHz to 18 GHz


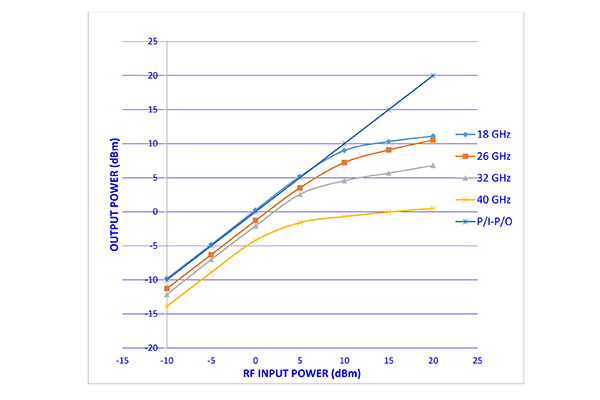

2.92mm High Power Limiter, 20 Watts Peak Power, 10 ns Recovery, 18 dBm Flat Leakage, 18 GHz to 40 GHz   PE80L2002

18 to 40

4

1

20**

12

2.1:1

5

0.01

Female/Female Field
Replacable 2.92mm
  • descr2.92mm High Power Limiter, 20 Watts Peak Power, 10 ns Recovery, 18 dBm Flat Leakage, 18 GHz to 40 GHz
  • descr2.92mm High Power Limiter, 20 Watts Peak Power, 10 ns Recovery, 18 dBm Flat Leakage, 18 GHz to 40 GHz
  • descr2.92mm High Power Limiter, 20 Watts Peak Power, 10 ns Recovery, 18 dBm Flat Leakage, 18 GHz to 40 GHz


High Power Limiter, Field Replaceable 2.92mm, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 18 GHz to 40 GHz   PE80L2007

18 to 40

4.5

1

100*

13

3.0:1

6

15

Male/Female Field
Replacable 2.92mm
  • descrHigh Power Limiter, Field Replaceable 2.92mm, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 18 GHz to 40 GHz
  • descrHigh Power Limiter, Field Replaceable 2.92mm, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 18 GHz to 40 GHz
  • descrHigh Power Limiter, Field Replaceable 2.92mm, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 18 GHz to 40 GHz

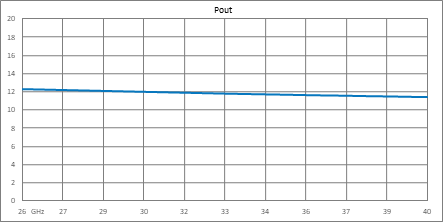

High Power Limiter, Field Replaceable 2.92mm, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 26.5 GHz to 40 GHz   PE80L2008

26.5 to 40

3

1

100*

13

2.0:1

6

15

Male/Female Field
Replacable 2.92mm
  • descrHigh Power Limiter, Field Replaceable 2.92mm, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 26.5 GHz to 40 GHz
  • descrHigh Power Limiter, Field Replaceable 2.92mm, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 26.5 GHz to 40 GHz
  • descrHigh Power Limiter, Field Replaceable 2.92mm, 100W Peak Power, 15 us Recovery, 13 dBm Flat Leakage, 26.5 GHz to 40 GHz


High Power Signal Limiters from Pasternack Enterprises

Pasternack’s high power RF limiters line consists of 13 unique models that provide low leakage power to sensitive control components in the receiver chain while offering good suppression of even-order harmonics under hard limiting.

These RF limiters operate over a very wide frequency range in bands from 0.2 GHz to 40 GHz and provide low leakage power circuit protection of 10 to 18 dBm. Additionally, they exhibit high CW power handling of up to 200 Watts peak power and a fast recovery time of 10 to 100 nanoseconds.

The 50 Ohm designs use hi-rel assembly processes, incorporate complete limiting diode circuitry, and do not require any external matching components.  The compact package outlines support field replaceable connectors and thru mounting holes and can be drop mounted onto a circuit board.

These rugged modules operate over a guaranteed operating temperature range of -54° C to +85° C and are designed to meet MIL-STD-202 environmental conditions for shock, humidity, vibration, altitude and temperature cycle.

Pasternack’s RF limiters are in-stock and available for same-day shipping.
