Low PIM Cable Assembly < -160 dBc
100% Tested with PIM Test Results Marked on Cable
UL910 Plenum Rated SPP-250-LLPL RF Coaxial Cable
Lightweight and Extremely Flexible Plenum Rated Coax
Low Loss Coax Cable Assembly Series with Excellent VSWR

SPP-250-LLPL coax cable assembly series is in stock and ready for same-day shipping!

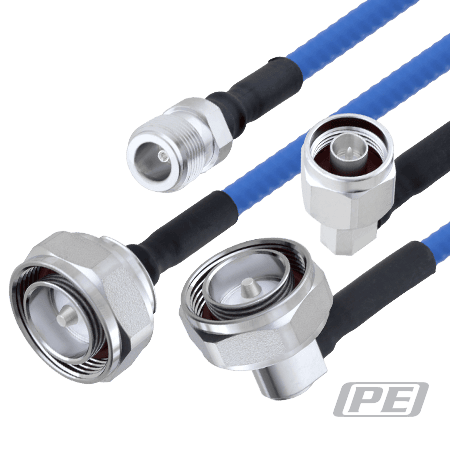

Low PIM Plenum Rated SPP-250-LLPL
Cable Assemblies 4.3-10, 7/16 DIN, Type N and 4.1/9.5 In-Series / Between Series

4.3-10 SPP-250-LLPL Cable Assembly Series Low PIM and Plenum Rated

4.3-10 Male to 4.3-10 Male

Plenum 4.3-10 Male to 4.3-10 Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4142-100CM

4.3-10 Male to 4.3-10 Male

Plenum 4.3-10 Male to 4.3-10 Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4142-200CM

4.3-10 Male Right Angle to
4.3-10 Male Right Angle

Plenum 4.3-10 Male Right Angle to 4.3-10 Male Right Angle Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4146-100CM

4.3-10 Male Right Angle to
4.3-10 Male Right Angle

Plenum 4.3-10 Male Right Angle to 4.3-10 Male Right Angle Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4146-200CM

4.3-10 Male Right Angle to 4.3-10 Male

Plenum 4.3-10 Male Right Angle to 4.3-10 Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4147-100CM

4.3-10 Male Right Angle to 4.3-10 Male

Plenum 4.3-10 Male Right Angle to 4.3-10 Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4147-200CM

7/16 DIN SPP-250-LLPL Cable Assembly Series Low PIM and Plenum Rated

7/16 DIN Male to 7/16 DIN Male

Plenum 7/16 DIN Male to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4130-100CM

7/16 DIN Male to 7/16 DIN Male

Plenum 7/16 DIN Male to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4130-200CM

7/16 DIN Male Right Angle to
7/16 DIN Male

Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4131-100CM

7/16 DIN Male Right Angle to
7/16 DIN Male

Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4131-200CM

7/16 DIN Male Right Angle to
7/16 DIN Male Right Angle

Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Right Angle Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4144-100CM

7/16 DIN Male Right Angle to
7/16 DIN Male Right Angle

Plenum 7/16 DIN Male Right Angle to 7/16 DIN Male Right Angle Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4144-200CM

Type N SPP-250-LLPL Cable Assembly Series Low PIM and Plenum Rated

N Male to N Male

Plenum N Male to N Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4137-100CM

N Male to N Male

Plenum N Male to N Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4137-200CM

N Female to N Male

Plenum N Female to N Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4138-100CM

N Female to N Male

Plenum N Female to N Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4138-200CM

N Male Right Angle to N Male

Plenum N Male Right Angle to N Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4139-100CM

N Male Right Angle to N Male

Plenum N Male Right Angle to N Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4139-200CM

N Male Right Angle to
N Male Right Angle

Plenum N Male Right Angle to N Male Right Angle Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4145-100CM

N Male Right Angle to
N Male Right Angle

Plenum N Male Right Angle to N Male Right Angle Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4145-200CM

4.1/9.5 Mini DIN SPP-250-LLPL Cable Assembly Series Low PIM and Plenum Rated

4.1/9.5 Mini DIN Male to
4.1/9.5 Mini DIN Male

Plenum 4.1/9.5 Mini DIN Male to 4.1/9.5 Mini DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4143-100CM

4.1/9.5 Mini DIN Male to
4.1/9.5 Mini DIN Male

Plenum 4.1/9.5 Mini DIN Male to 4.1/9.5 Mini DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4143-200CM

Between Series 4.3-10, 7/16 DIN, Type N and 4.1/9.5 SPP-250-LLPL Coaxial Cable Assemblies Low PIM and Plenum Rated

4.3-10 Male to 7/16 DIN Male

Plenum 4.3-10 Male to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4135-100CM

4.3-10 Male to 7/16 DIN Male

Plenum 4.3-10 Male to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4135-200CM

4.1/9.5 Mini DIN Male to
7/16 DIN Male

Plenum 4.1/9.5 Mini DIN Male to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4134-100CM

4.1/9.5 Mini DIN Male to
7/16 DIN Male

Plenum 4.1/9.5 Mini DIN Male to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4134-200CM

N Male to 7/16 DIN Male

Plenum N Male to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4132-100CM

N Male to 7/16 DIN Male

Plenum N Male to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4132-200CM

N Female to 7/16 DIN Male

Plenum N Female to 7/16 DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4133-100CM

N Female to 7/16 DIN Male

Plenum N Female to 7/16 DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4133-200CM

N Male to 7/16 DIN
Male Right Angle

Plenum N Male to 7/16 DIN Male Right Angle Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4136-100CM

N Male to 7/16 DIN
Male Right Angle

Plenum N Male to 7/16 DIN Male Right Angle Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4136-200CM

N Male to 4.1/9.5 Mini DIN Male

Plenum N Male to 4.1/9.5 Mini DIN Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4140-100CM

N Male to 4.1/9.5 Mini DIN Male

Plenum N Male to 4.1/9.5 Mini DIN Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4140-200CM

N Male to 4.3-10 Male

Plenum N Male to 4.3-10 Male Low PIM Cable 100 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4141-100CM

N Male to 4.3-10 Male

Plenum N Male to 4.3-10 Male Low PIM Cable 200 CM Length Using SPP-250-LLPL Coax, RoHS

PE3C4141-200CM

4.3-10, 7/16 DIN, Type N and 4.1/9.5 Mini-DIN SPP-250-LLPL Cable Assembly Series Low PIM and Plenum Rated from Pasternack

Pasternack 4.3-10, 7/16 DIN, Type N and 4.1/9.5 low PIM jumper cable series is made with UL910 plenum-rated SPP-250-LLPL coax. This 4.3/10, 7/16 DIN, Type N and 4.1-9.5 cable assembly series features a maximum PIM level of -160 dBc. SPP-250-LLPL cable assembly PIM levels have been fully tested with passive intermodulation test results marked on each cable.

These low PIM, plenum rated coax cables deliver a maximum operating frequency of 6 GHz and a maximum VSWR of 1.25:1 up to 2 GHz and 1.35:1 up to 6 GHz. The 4.3-10, 7/16 DIN, N and 4.1-9.5 mini-DIN connector combinations also include right-angle connector options. SPP-250-LLPL plenum rated coaxial cable assemblies are lightweight, flexible and can operate in a temperature range of -55°C to +125°C.

Typical applications for this low-PIM 4.3-10, 7/16 DIN, Type N and 4.1/9.5 mini-DIN cable assemblies include distributed antenna systems (DAS), indoor wireless systems, wireless infrastructure, multi-carrier communication systems and PIM testing. As with the other over 40,000 RF, microwave and millimeter wave Pasternack products, this low PIM and plenum rated SPP-250-LLPL coaxial cable assembly series is in-stock. Not only are these cables in stock, they also will ship the same day as purchased.
