  • Each cross guide coupler is available in one of three configurations:

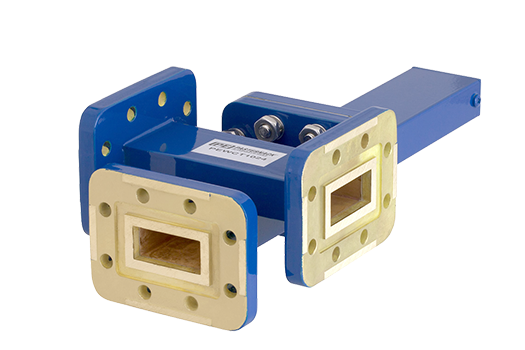

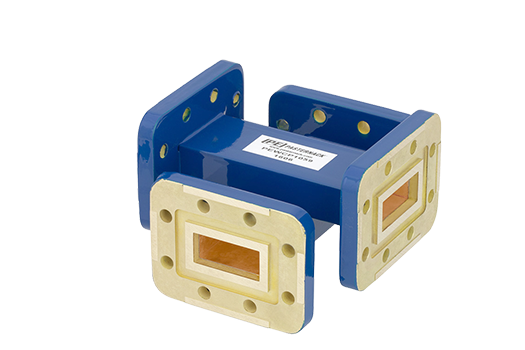

○  cross guide coupler (4 waveguide ports)

○  cross guide coupler with termination (3 waveguide ports)

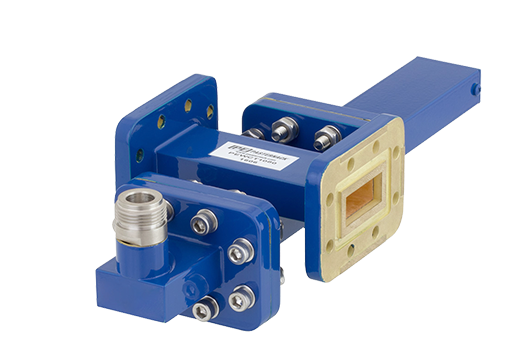

○  cross guide coupler with termination and waveguide to coax adapter (2 waveguide ports with either an SMA, type N or 2.92 mm coaxial connection)

  • Frequency range of 5.85 GHz to 33 GHz in eight waveguide bands
  • Available with EIA (CPR) style flanges as well as UG flange style per military standard
  • Available with coupling factors from 20 to 50 dB







All in stock and ready for same-day shipping!

Click on the links below for more details

Waveguide Crossguide Couplers from Pasternack

Pasternack’s cross guide couplers are available in three sub-categories: cross guide couplers (4 waveguide ports), cross guide couplers with terminations (3 waveguide ports) and cross guide couplers with terminations and waveguide to coax adapters (2 waveguide ports with either a SMA, Type-N or 2.92 mm coaxial connection).

These couplers operate over eight waveguide bands in the 5.85 GHz to 33 GHz frequency range. They are made with bronze waveguide bodies and are offered with EIA (CPR)-style flanges or UG-style flanges per military standard. Pasternack’s cross guide couplers are available with coupling factors from 20 to 50 dB.

Typical applications for these cross guide couplers include instrumentation, test benches, product development and characterization.
