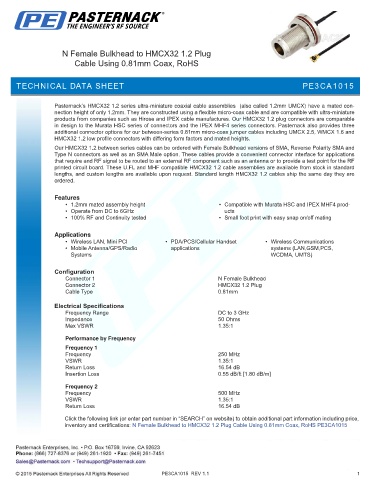

N Female Bulkhead to HMCX32 1.2 Plug
Cable Using 0.81mm Coax, RoHS

TECHNICAL D PE3CA1015
TECHNICAL DATA SHEETATA SHEET

Pasternack’s HMCX32 1.2 series ultra-miniature coaxial cable assemblies (also called 1.2mm UMCX) have a mated con-
nection height of only 1.2mm. They are constructed using a flexible micro-coax cable and are compatible with ultra-miniature
products from companies such as Hirose and IPEX cable manufactures. Our HMCX32 1.2 plug connectors are comparable
in design to the Murata HSC series of connectors and the IPEX MHF4 series connectors. Pasternack also provides three
additional connector options for our between-series 0.81mm micro-coax jumper cables including UMCX 2.5, WMCX 1.6 and
HMCX32 1.2 low profile connectors with differing form factors and mated heights.
Our HMCX32 1.2 between series cables can be ordered with Female Bulkhead versions of SMA, Reverse Polarity SMA and
Type N connectors as well as an SMA Male option. These cables provide a convenient connector interface for applications
that require and RF signal to be routed to an external RF component such as an antenna or to provide a test point for the RF
printed circuit board. These U.FL and MHF compatible HMCX32 1.2 cable assemblies are available from stock in standard
lengths, and custom lengths are available upon request. Standard length HMCX32 1.2 cables ship the same day they are
ordered.

Features
• 1.2mm mated assembly height • Compatible with Murata HSC and IPEX MHF4 prod-
• Operate from DC to 6GHz ucts
• 100% RF and Continuity tested • Small foot print with easy snap on/off mating

Applications
• Wireless LAN, Mini PCI • PDA/PCS/Cellular Handset • Wireless Communications
• Mobile Antenna/GPS/Radio applications systems (LAN,GSM,PCS,
Systems WCDMA, UMTS)

Configuration
Connector 1 N Female Bulkhead
Connector 2 HMCX32 1.2 Plug
Cable Type 0.81mm

Electrical Specifications
Frequency Range DC to 3 GHz
Impedance 50 Ohms
Max VSWR 1.35:1

Performance by Frequency
Frequency 1
Frequency 250 MHz
VSWR 1.35:1
Return Loss 16.54 dB
Insertion Loss 0.55 dB/ft [1.80 dB/m]

Frequency 2
Frequency 500 MHz
VSWR 1.35:1
Return Loss 16.54 dB

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: N Female Bulkhead to HMCX32 1.2 Plug Cable Using 0.81mm Coax, RoHS PE3CA1015

PE3CA1015 REV 1.1 1
