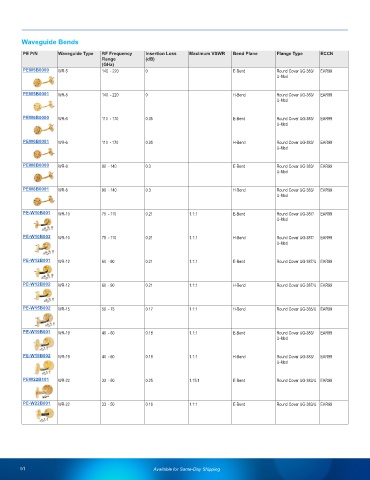

Page 52 - Waveguides Product Selection Guide

Waveguide Bends
PE P/N Waveguide Type RF Frequency Insertion Loss Maximum VSWR Bend Plane Flange Type ECCN
Range (dB)
(GHz)
PEW5B0000 WR-5 140 - 220 0 E-Bend Round Cover UG-383/ EAR99
U-Mod

PEW5B0001 WR-5 140 - 220 0 H-Bend Round Cover UG-383/ EAR99
U-Mod

PEW6B0000 WR-6 110 - 170 0.35 E-Bend Round Cover UG-383/ EAR99
U-Mod

PEW6B0001 WR-6 110 - 170 0.35 H-Bend Round Cover UG-383/ EAR99
U-Mod

PEW8B0000 WR-8 90 - 140 0.3 E-Bend Round Cover UG-383/ EAR99
U-Mod

PEW8B0001 WR-8 90 - 140 0.3 H-Bend Round Cover UG-383/ EAR99
U-Mod

PE-W10B001 WR-10 75 - 110 0.21 1.1:1 E-Bend Round Cover UG-387/ EAR99
U-Mod

PE-W10B002 WR-10 75 - 110 0.21 1.1:1 H-Bend Round Cover UG-387/ EAR99
U-Mod

PE-W12B001 WR-12 60 - 90 0.21 1.1:1 E-Bend Round Cover UG-387/U EAR99

PE-W12B002 WR-12 60 - 90 0.21 1.1:1 H-Bend Round Cover UG-387/U EAR99

PE-W15B002 WR-15 50 - 75 0.17 1.1:1 H-Bend Round Cover UG-385/U EAR99

PE-W19B001 WR-19 40 - 60 0.18 1.1:1 E-Bend Round Cover UG-383/ EAR99
U-Mod

PE-W19B002 WR-19 40 - 60 0.18 1.1:1 H-Bend Round Cover UG-383/ EAR99
U-Mod

PEW22B101 WR-22 33 - 50 0.25 1.15:1 E-Bend Round Cover UG-383/U EAR99

PE-W22B001 WR-22 33 - 50 0.16 1.1:1 E-Bend Round Cover UG-383/U EAR99

51 Available for Same-Day Shipping
