GaN High Power PIN Diode Switches

GaN High Power PIN Diode Switches

  • GaN Semiconductor PIN Diode Switch Technology
  • 50 Ohm Reflective Designs Cover Broadband Frequencies ranging from DC to 18 GHz
  • High RF input power handling up to 100 watts CW
  • Switching Speed 50 to 100 nsec typical
  • Insertion Loss: 0.9 to 1.5 dB typical
  • Compact and Rugged Mil Grade Coaxial Packaged Designs with Integrated TTL Compatible Drivers
  • Models available with and without heatsinks
All Available for Same-Day Shipping!
Part No. & Additional Views Frequency Band (GHz) Maximum RF Input Power (CW) (Watts) Insertion Loss(Typ) (dB) Isolation (Typ)(dB) Input IP3 (dBm) (Typ) Switching Speed (Typ) (nsec) 0.1 dB Compression Point (Typ) (dBm) DC Power(V/mA) (Typ) Configuration Connectors

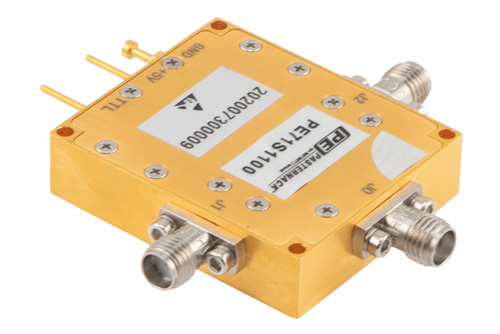

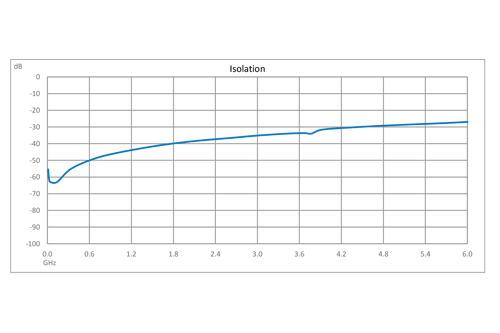

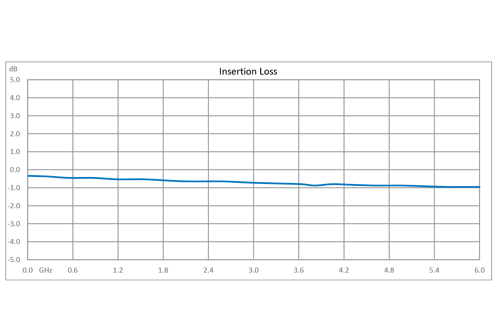

Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA
descr Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA descr Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA
PE71S1100
descr Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA descr Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA
DC to 6 +40 0.9 33 55 < 100 +46 5/100 Module SMA

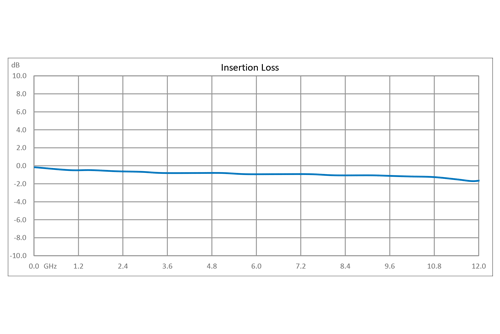

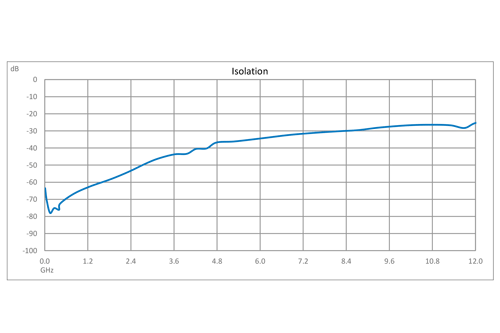

Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA
PE71S1101
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA
DC to 12 +25 1.4 35 50 < 100 +44 5/100 Module SMA

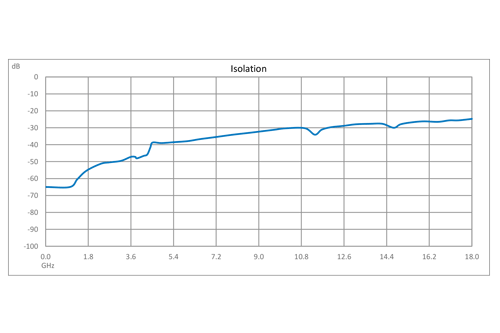

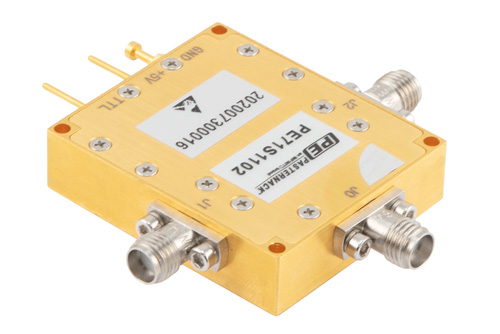

Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA
PE71S1102
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA
DC to 18 +10 1.3 35 55 50 +40 5/100 Module SMA

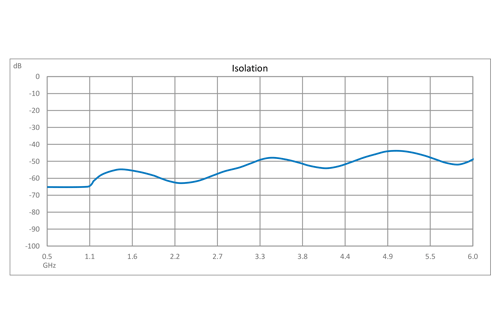

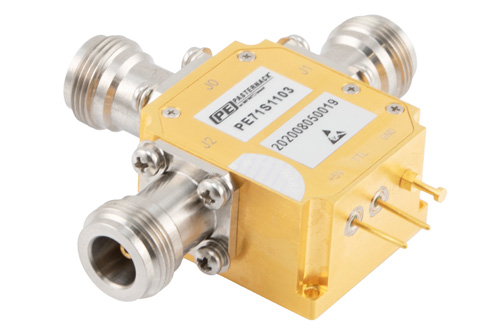

Reflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N
descrReflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N descrReflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N
PE71S1103
descrReflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N descrReflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N
0.5 to 6 +100 1.2 45 55 < 100 +50 5/100 Module N-Type

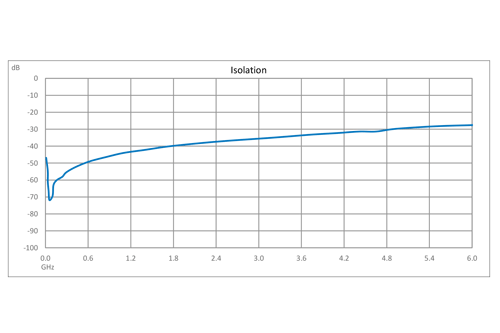

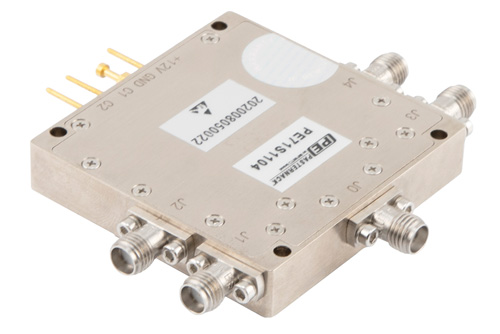

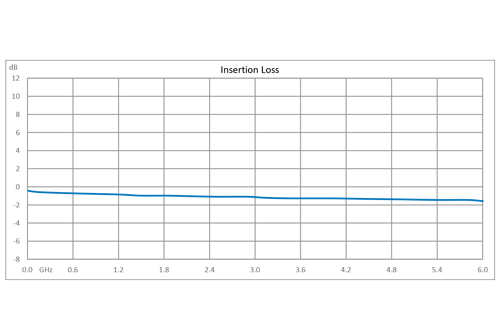

Reflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA
descrReflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA descrReflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA
PE71S1104
descrReflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA descrReflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA
DC to 6 +40 1.5 40 50 < 100 +50 5/200 Module SMA

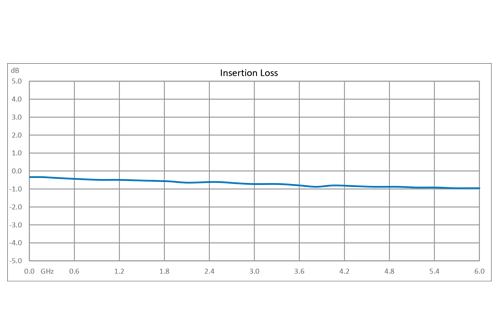

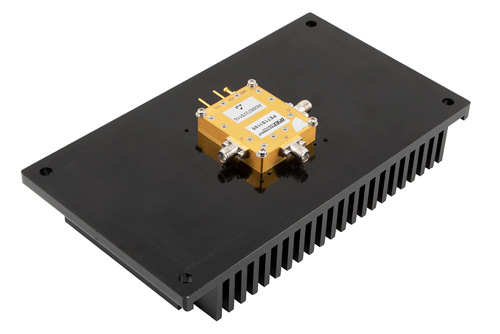

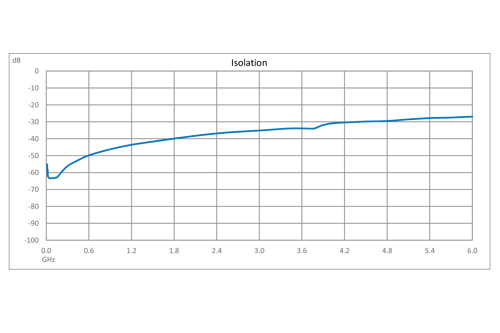

Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink
PE71S1105
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink
DC to 6 +40 0.9 33 55 < 100 +46 5/100 Module with Heatsink SMA

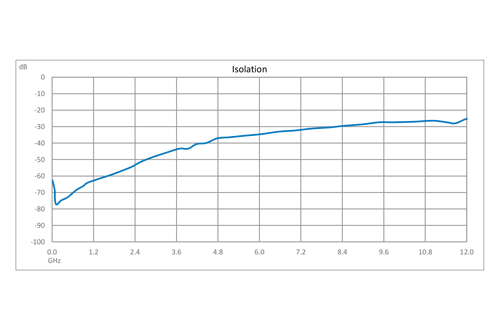

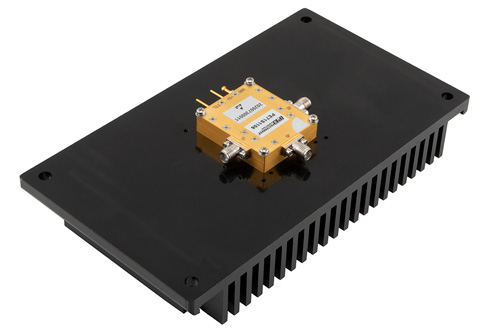

Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA with Heatsink
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA with Heatsink descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA with Heatsink
PE71S1106
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA with Heatsink descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 12 GHz Up to 25 Watts (+44 dBm), 100ns and SMA with Heatsink
DC to 12 +25 1.4 35 50 < 100 +44 5/100 Module with Heatsink SMA

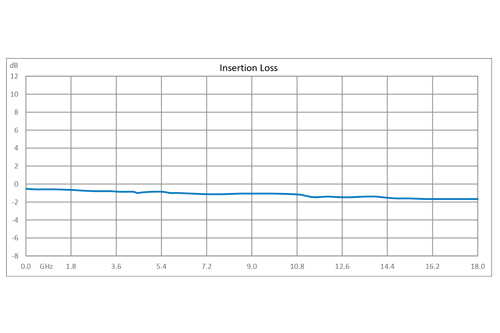

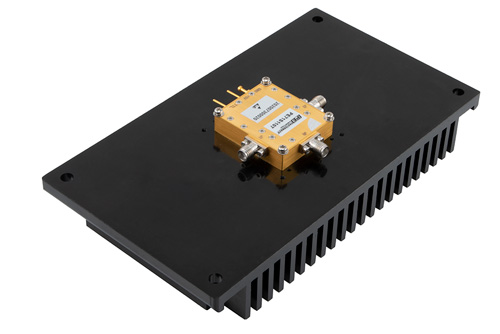

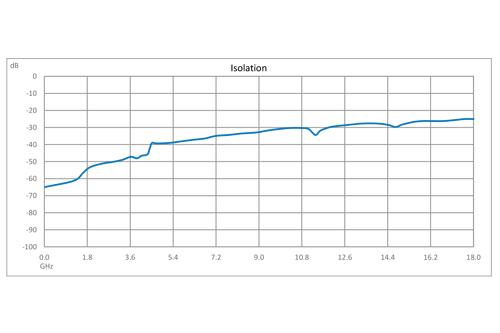

Reflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA with Heatsink
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA with Heatsink descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA with Heatsink
PE71S1107
descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA with Heatsink descrReflective SPDT GaN High Power PIN Diode Switch Operating from DC to 18 GHz Up to 10 Watts (+40 dBm), 50ns and SMA with Heatsink
DC to 18 +10 1.3 35 55 50 +40 5/100 Module with Heatsink SMA

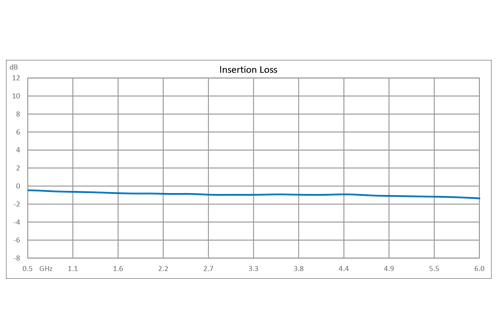

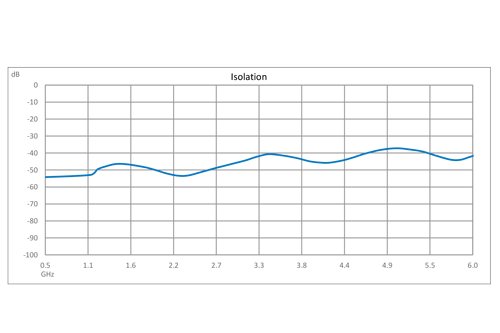

Reflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N with Heatsink
descrReflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N with Heatsink descrReflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N with Heatsink
PE71S1108
descrReflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N with Heatsink descrReflective SPDT GaN High Power PIN Diode Switch Operating from 500 MHz to 6 GHz Up to 100 Watts (+50 dBm), 100ns and N with Heatsink
0.5 to 6 +100 1.2 45 55 < 100 +50 5/100 Module with Heatsink N-Type

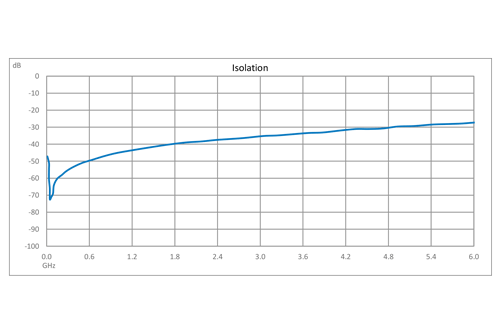

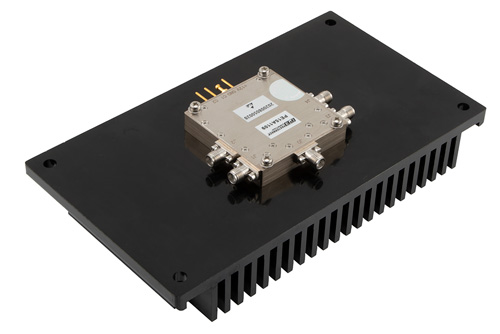

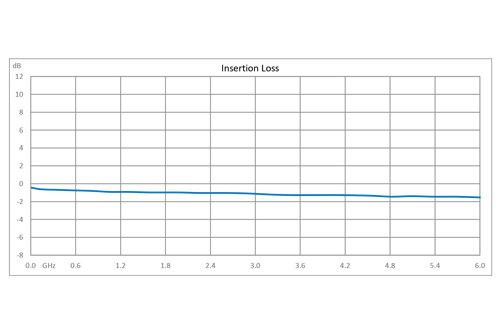

Reflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink
descrReflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink descrReflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink
PE71S1109
descrReflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink descrReflective SP4T GaN High Power PIN Diode Switch Operating from DC to 6 GHz Up to 40 Watts (+46 dBm), < 100ns and SMA with Heatsink
DC to 6 +40 1.5 40 50 < 100 +50 5/200 Module with Heatsink SMA

GaN High Power PIN Diode Switches from Pasternack

The new series of Gallium Nitride (GaN) PIN diode switches from Pasternack are Reflective designs. Our RF Reflective GaN PIN diode switches use SMA connectors at 50 Ohm. This SMA PIN diode Reflective switches have a minimum frequency of DC and a maximum frequency of up to 18 GHz. The Pasternack GaN PIN diode Reflective RF switches are rated at a switching speed of as low as 50 ns and a maximum input power up to 100 Watts (+50 dBm ).

Insertion loss typical of these GaN SMA Reflective switches ranges from 0.9 to 1.3 dB with an isolation minimum of 23 dB. Reflective GaN PIN diode radio frequency switches are part of over 40,000 RF, microwave and millimeter wave components available from Pasternack. Our Reflective GaN SMA coaxial PIN diode switches can ship worldwide the same day that it is bought as with our other available RF parts.
