SPDT PIN Diode Switches

Pasternack offers many models of single pole double throw (SPDT) Pin diode switches covering frequency bands from 10 MHz to 67 GHz. Our Pin diode SPDT switch designs feature excellent insertion loss as low as 1.2 dB, isolation levels up to 80 dB, and fast switching speed levels as low as 100 nsec. SPDT PIN diode switch models are available in MIL-Grade rugged coaxial packaging with integrated TTL compatible logic control circuitry and some models support Field Replaceable Connectors.

Part No. & Additional Views SPDT Switch Design RF Frequency Range (MHz) Typical Isolation (dB) Typical Insertion Loss (dB) Typical Switching Time (ns) Max RF Input Power (CW) (Watts) TTL Control Connector Type Field Replaceable

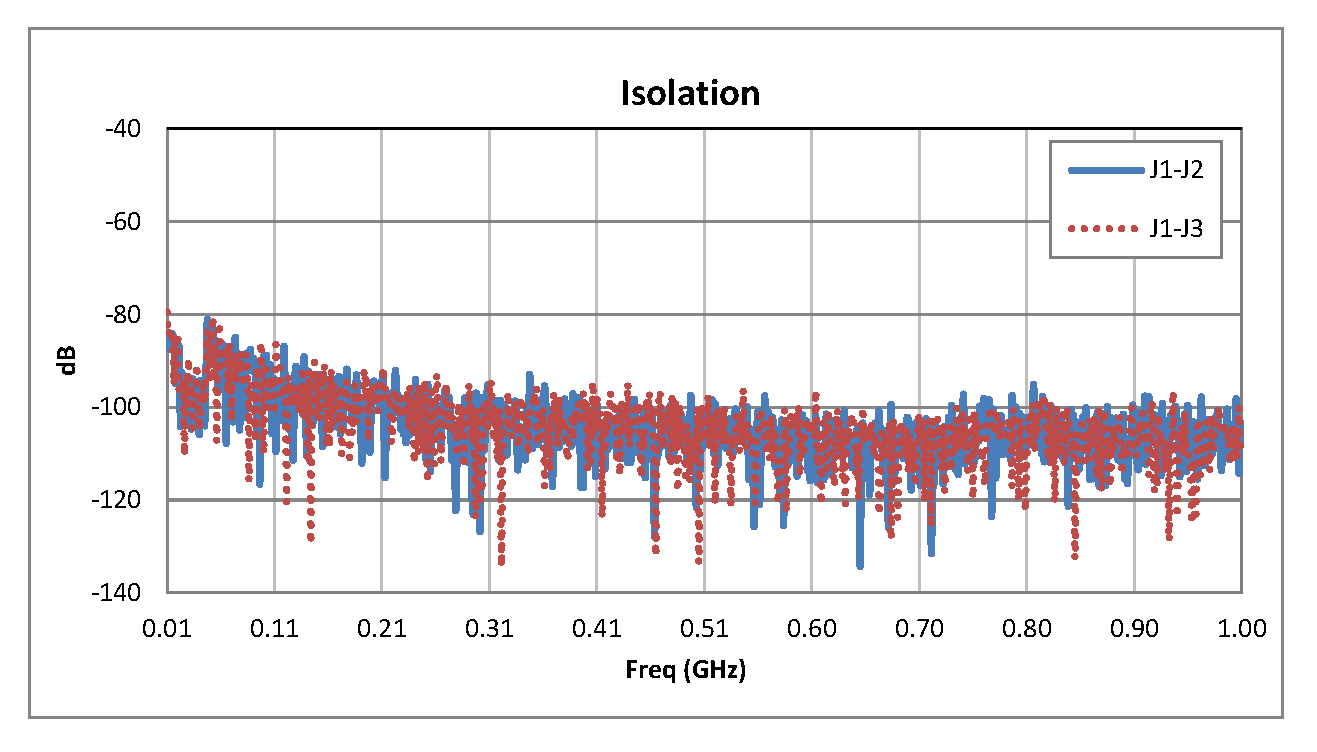

SPDT PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to +20 dBm and SMA
PE71S6237
descrSPDT PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 10 MHz to 1,000 MHz Up to +20 dBm and SMA
Absorptive 10-1,000 80 1.3 200 0.1 Solder Pin SMA Female Yes

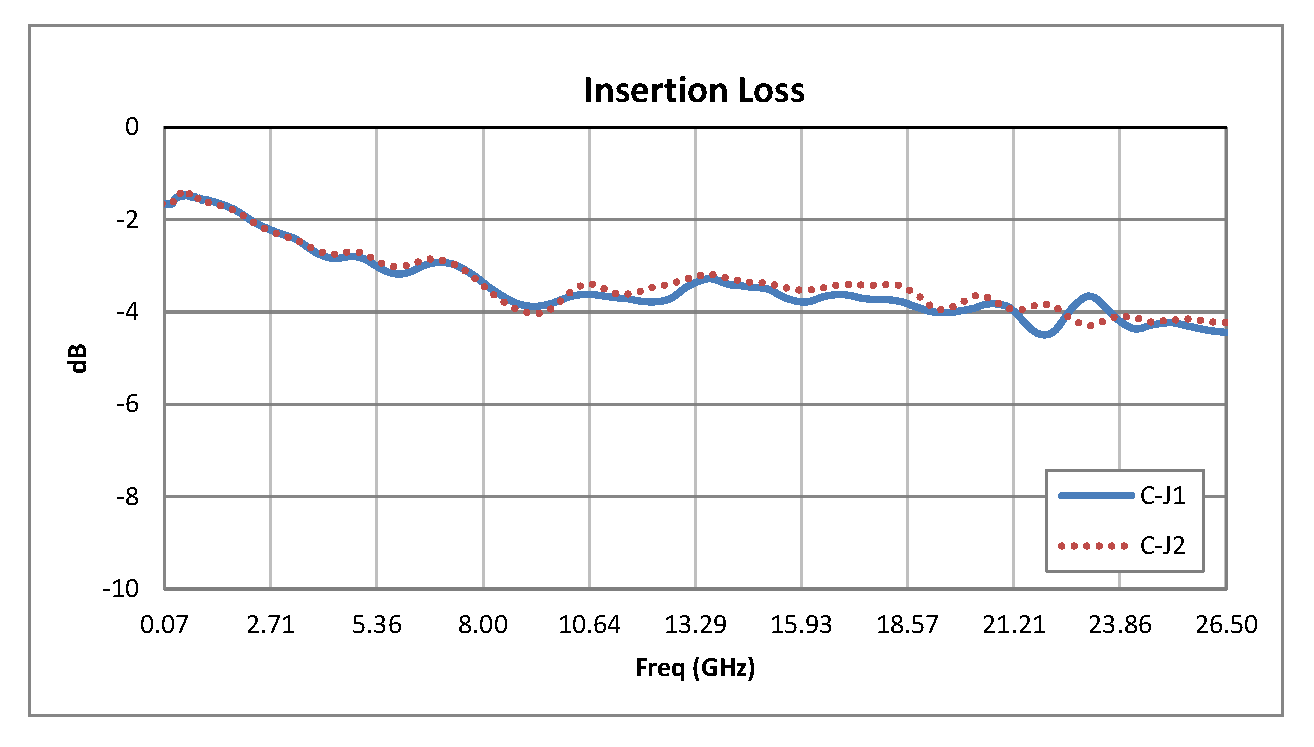

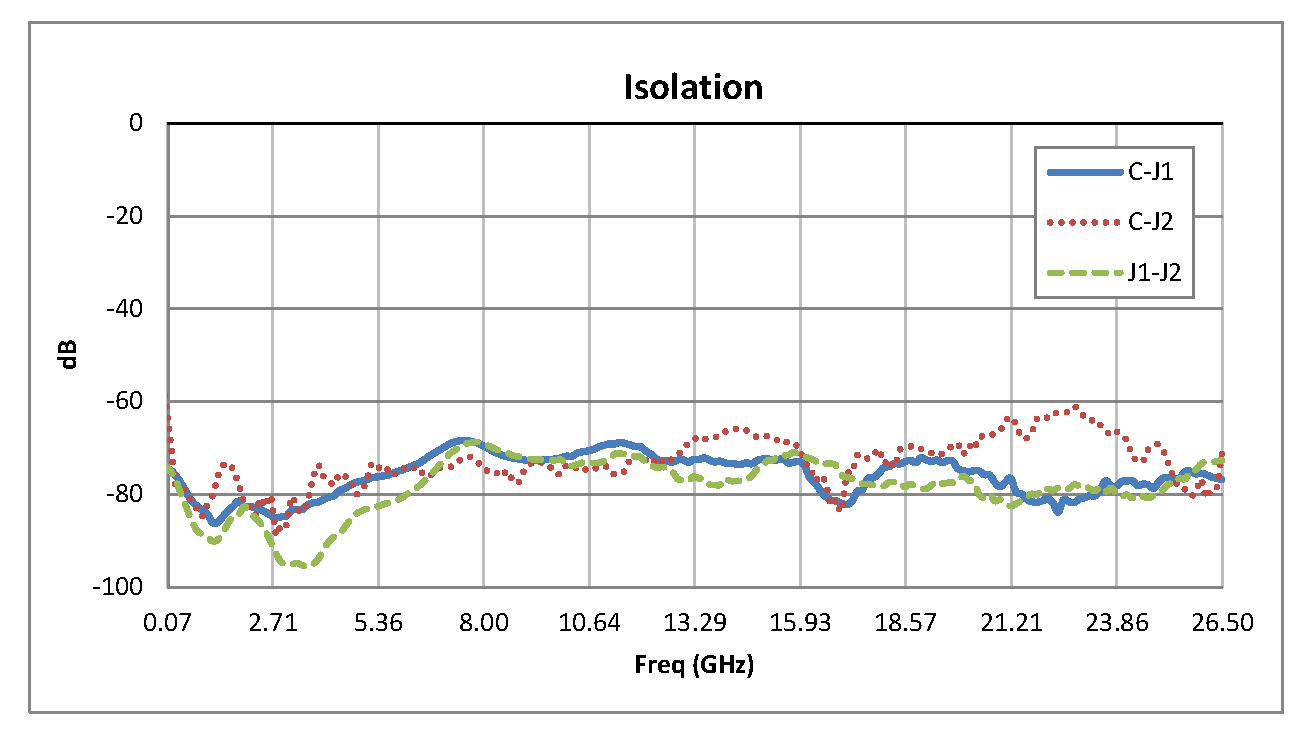

SMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm
descrSMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm descrSMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm
PE71S6237
descrSMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm descrSMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm
Absorptive 70-26,500 55 5 100 0.5 SMA SMA Female Yes

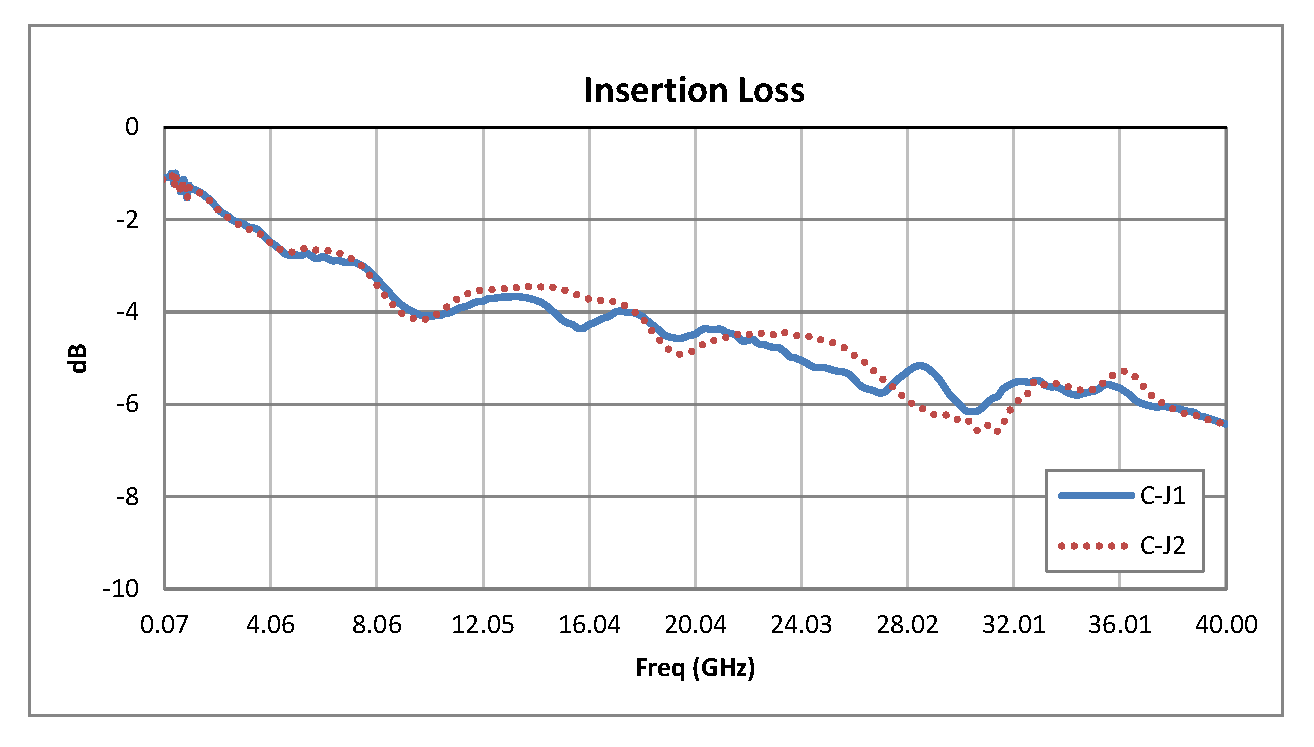

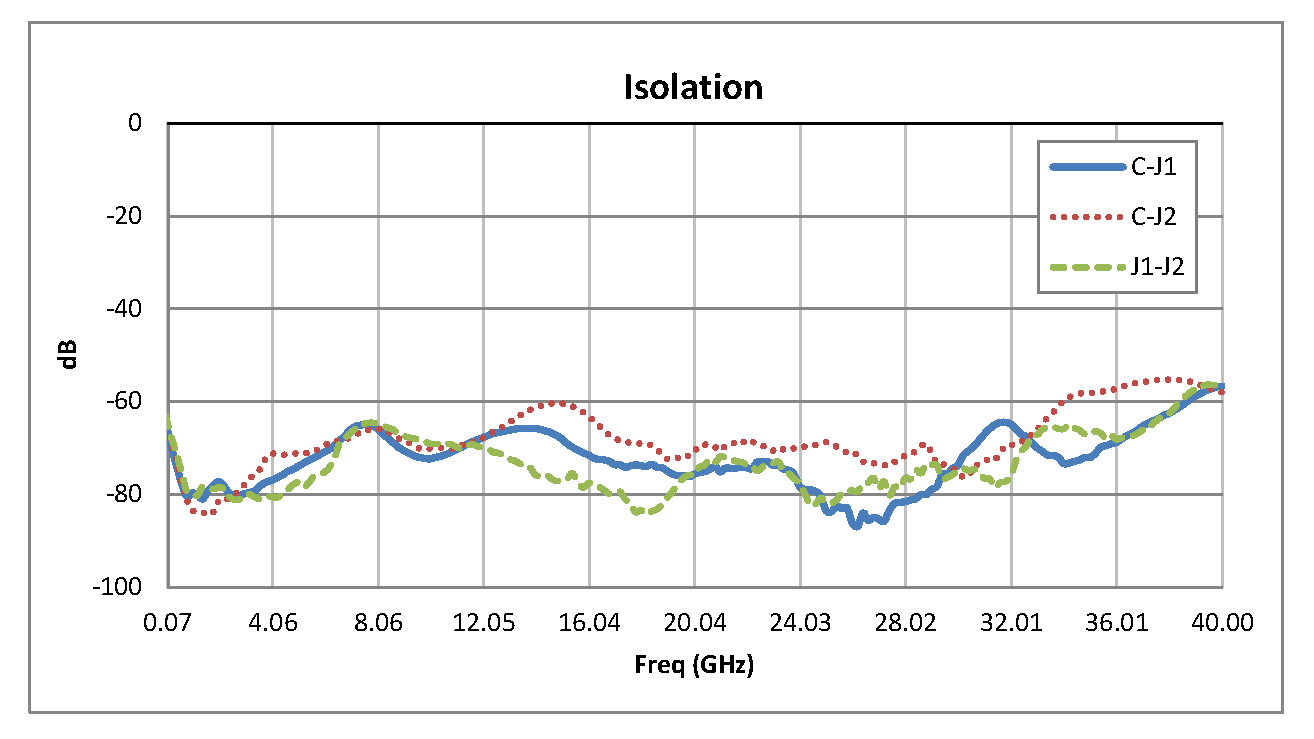

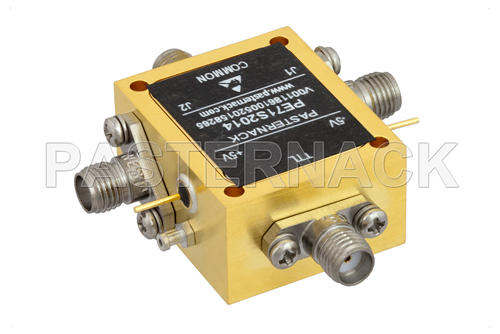

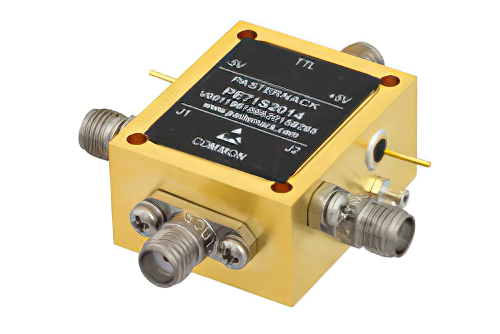

SPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm and Field Replaceable 2.92mm
descrSPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm and Field Replaceable 2.92mm descrSPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm and Field Replaceable 2.92mm
PE71S2014
descrSPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm and Field Replaceable 2.92mm descrSPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm and Field Replaceable 2.92mm
Absorptive 70-40,000 55 7 100 0.5 2.92mm 2.92mm Female Yes

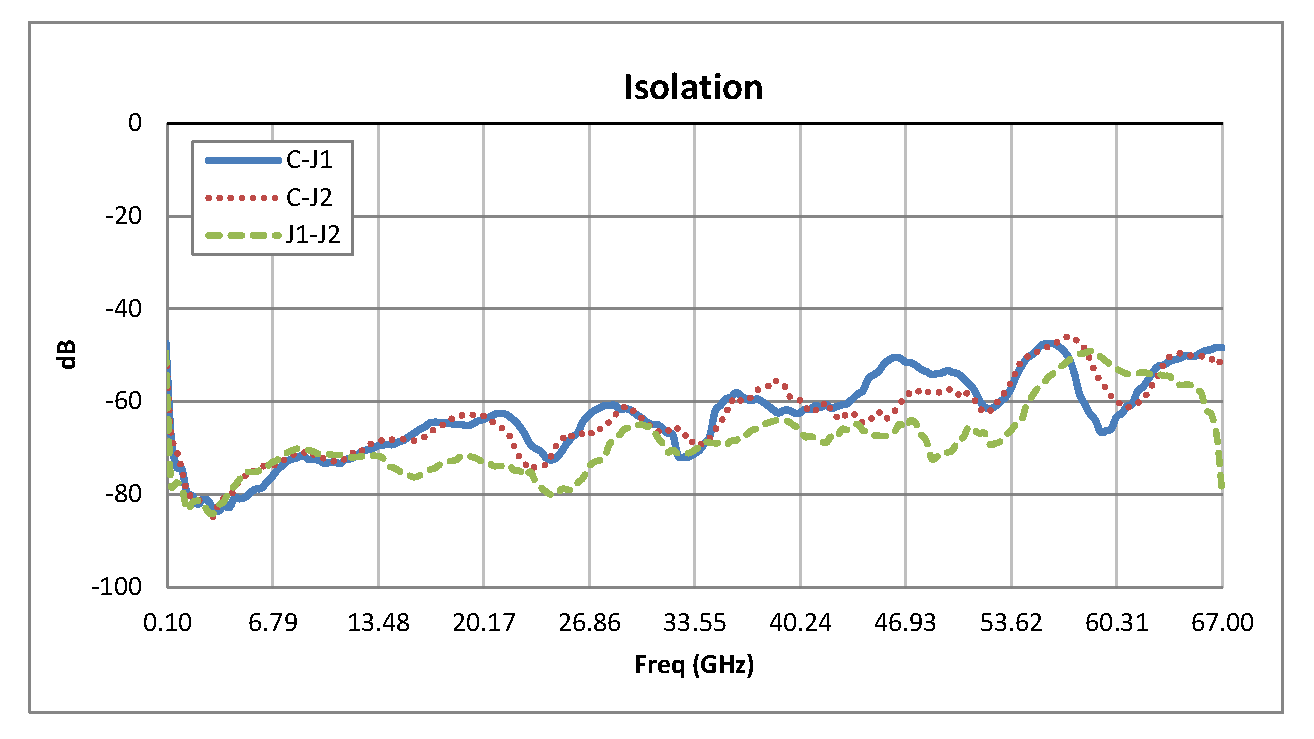

1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm
descr1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm descr1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm
PE71S2026
descr1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm descr1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm
Absorptive 100-67,000 40 10.5 100 0.5 SMA 1.85mm Female Yes

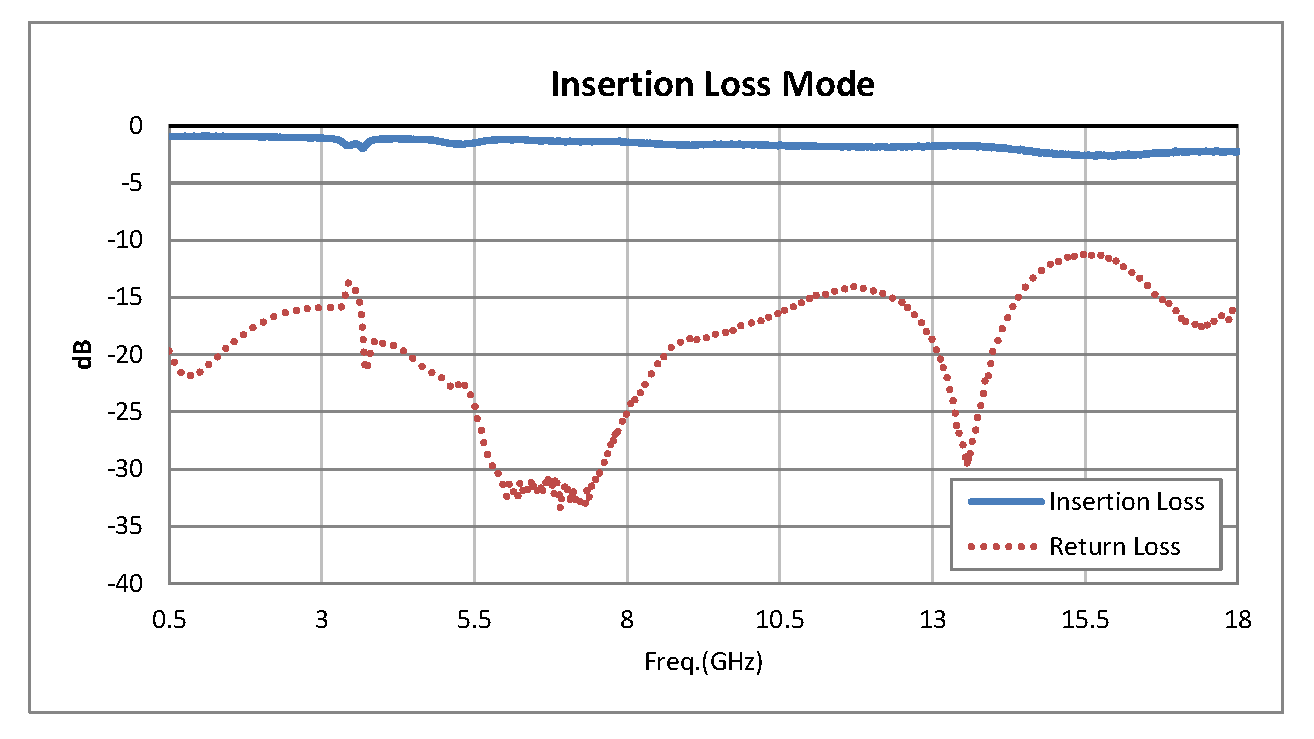

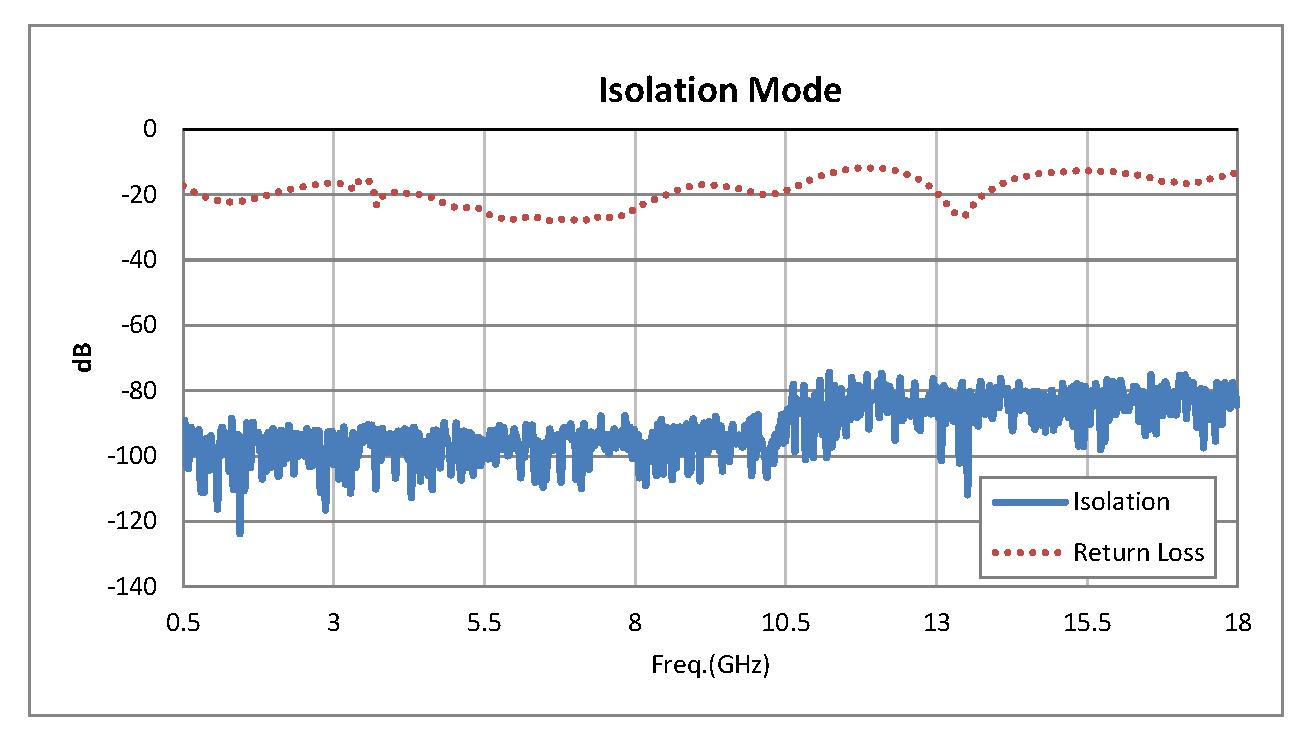

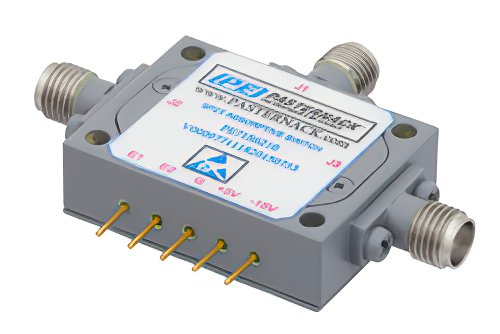

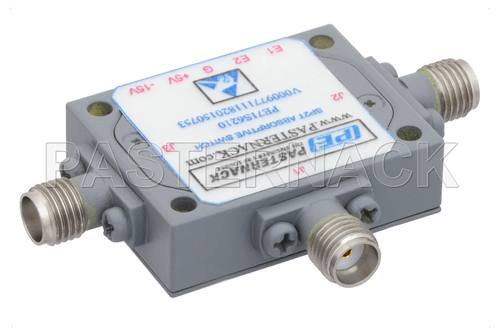

SPDT PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA
PE71S6210
descrSPDT PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 500 MHz to 18 GHz Up to +20 dBm and SMA
Absorptive 500-18,000 55 3.75 100 0.1 Solder Pin SMA Female Yes

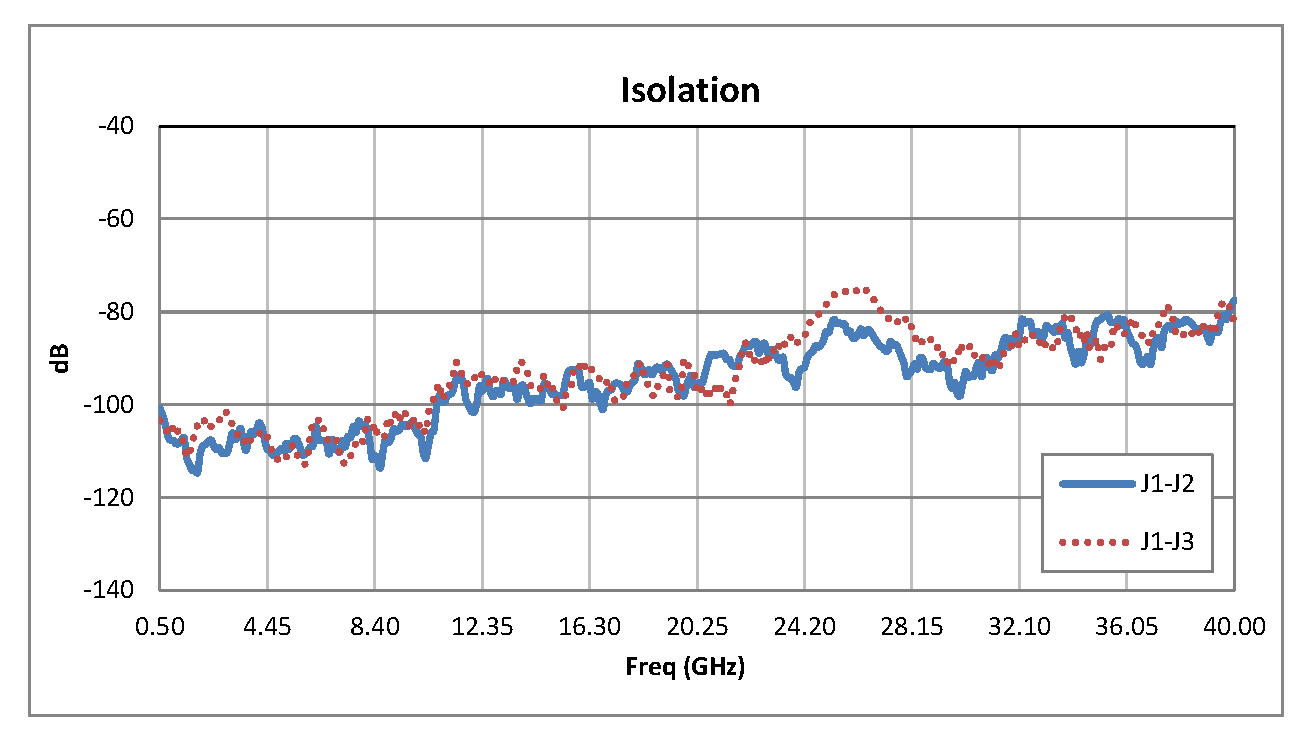

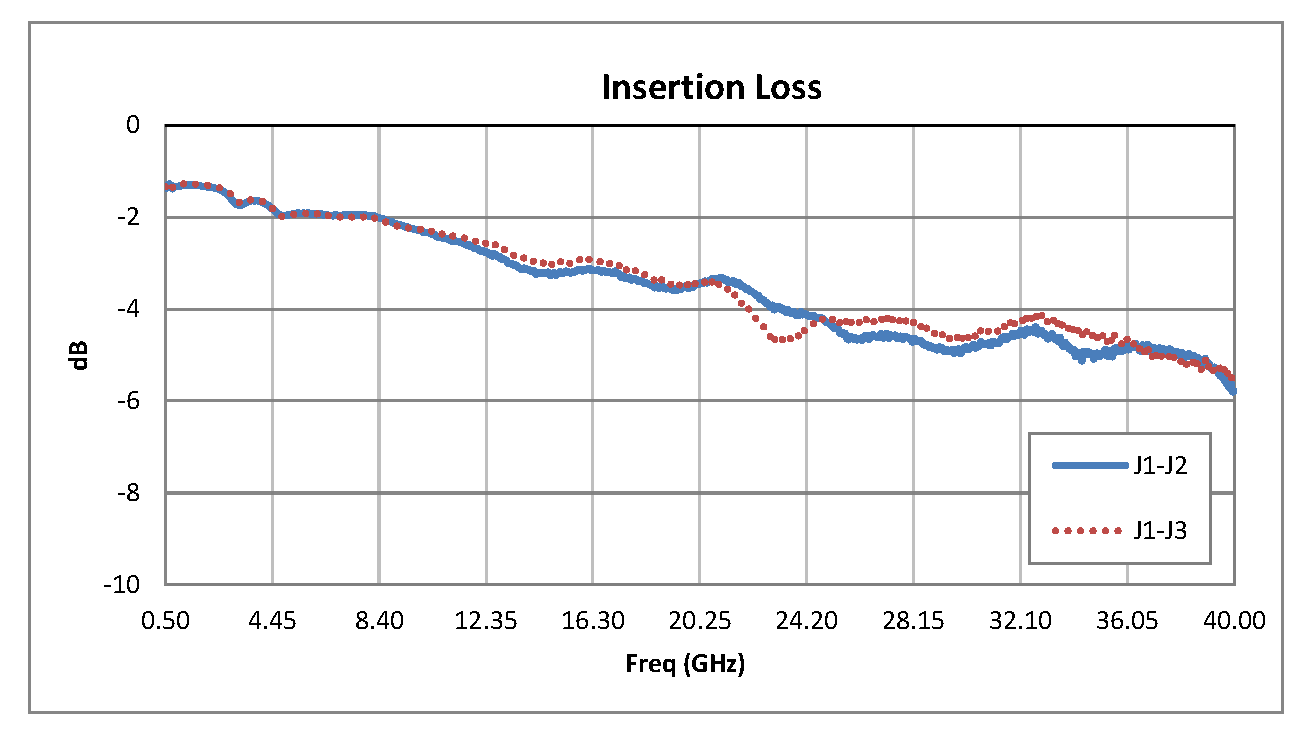

SPDT PIN Diode Switch Operating From 500 MHz to 40 GHz Up to +20 dBm and 2.92mm
descrSPDT PIN Diode Switch Operating From 500 MHz to 40 GHz Up to +20 dBm and 2.92mm descrSPDT PIN Diode Switch Operating From 500 MHz to 40 GHz Up to +20 dBm and 2.92mm
PE71S6215
descrSPDT PIN Diode Switch Operating From 500 MHz to 40 GHz Up to +20 dBm and 2.92mm descrSPDT PIN Diode Switch Operating From 500 MHz to 40 GHz Up to +20 dBm and 2.92mm
Absorptive 500-40,000 60 6 0.1 Solder Pin 2.92mm Female Yes

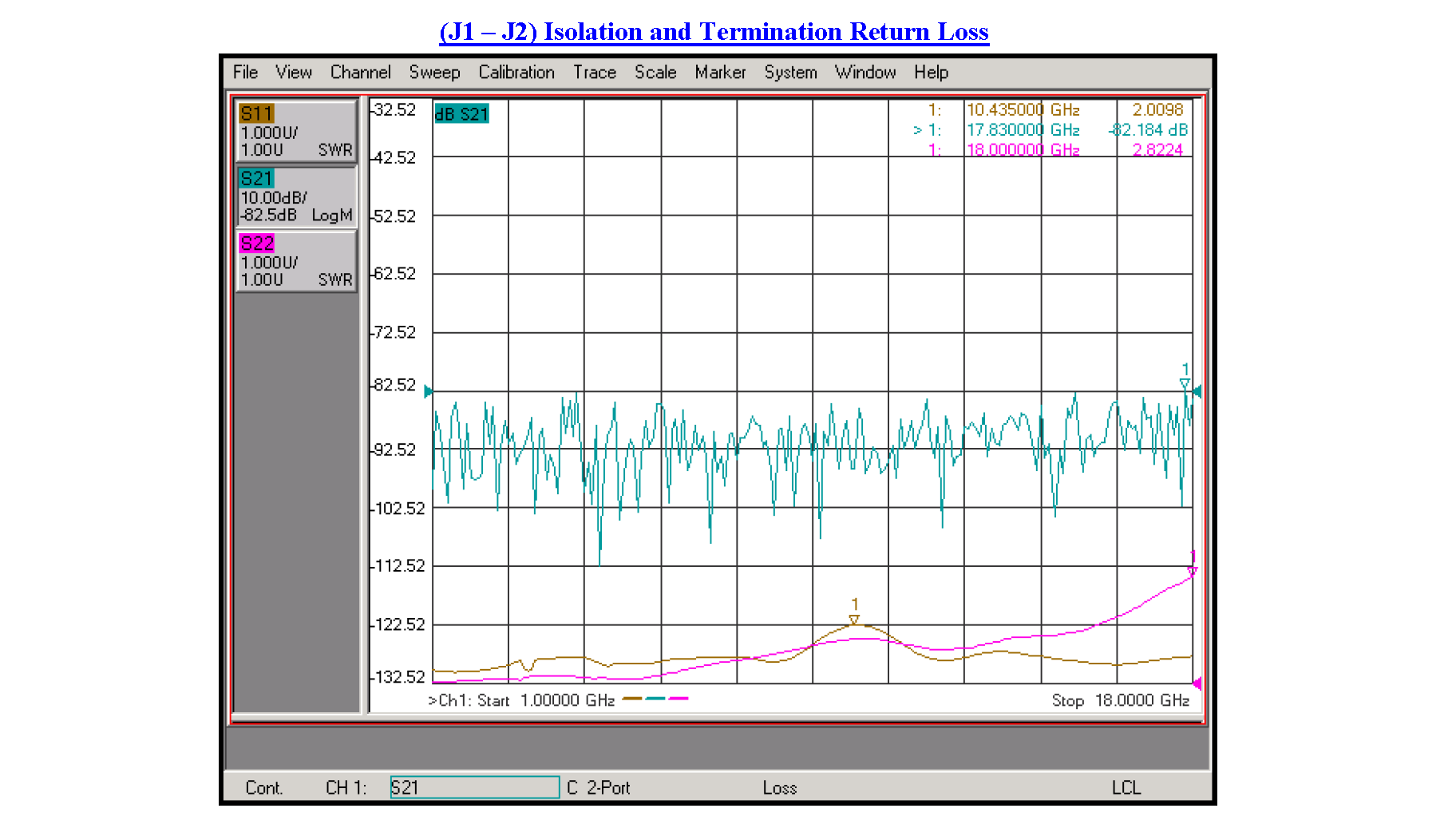

SPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA
PE71S6241
descrSPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA
Absorptive 1,000-18,000 65 3.5 100 0.1 Solder Pin SMA Female Yes

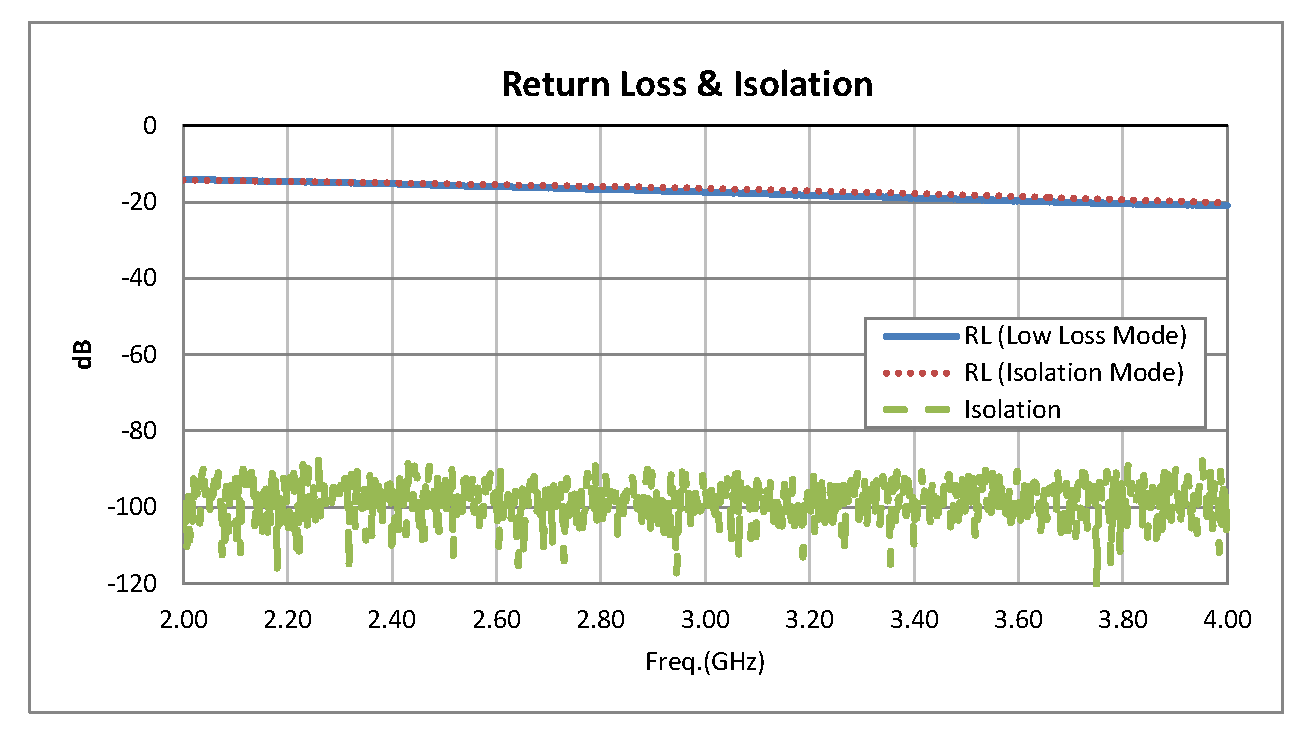

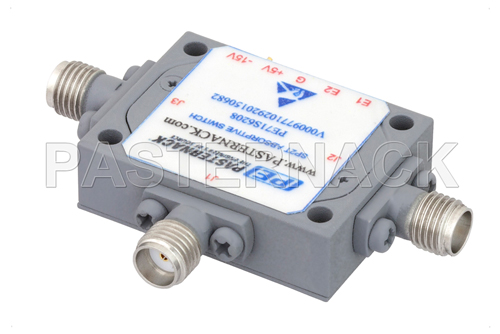

SPDT PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +30 dBm and SMA
descrSPDT PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +30 dBm and SMA descrSPDT PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +30 dBm and SMA
PE71S6208
descrSPDT PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +30 dBm and SMA descrSPDT PIN Diode Switch Operating From 2 GHz to 4 GHz Up to +30 dBm and SMA
Absorptive 2,000-4,000 75 1.2 100 1 Solder Pin SMA Female Yes

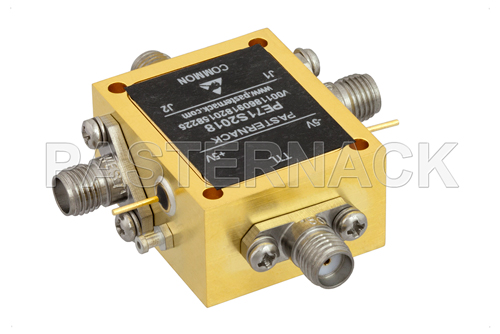

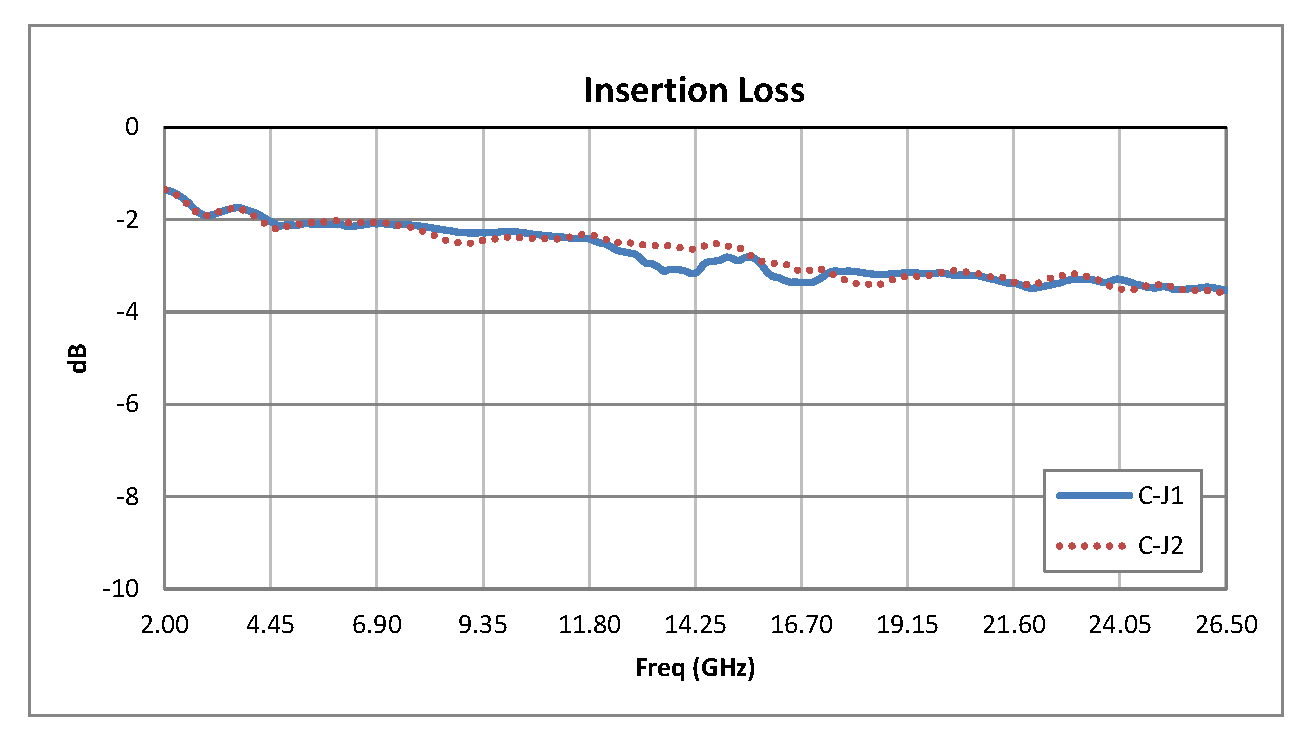

SMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +27 dBm
descrSMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +27 dBm descrSMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +27 dBm
PE71S2018
descrSMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +27 dBm descrSMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +27 dBm
Absorptive 2,000-26,500 60 4 100 0.5 SMA SMA Female Yes

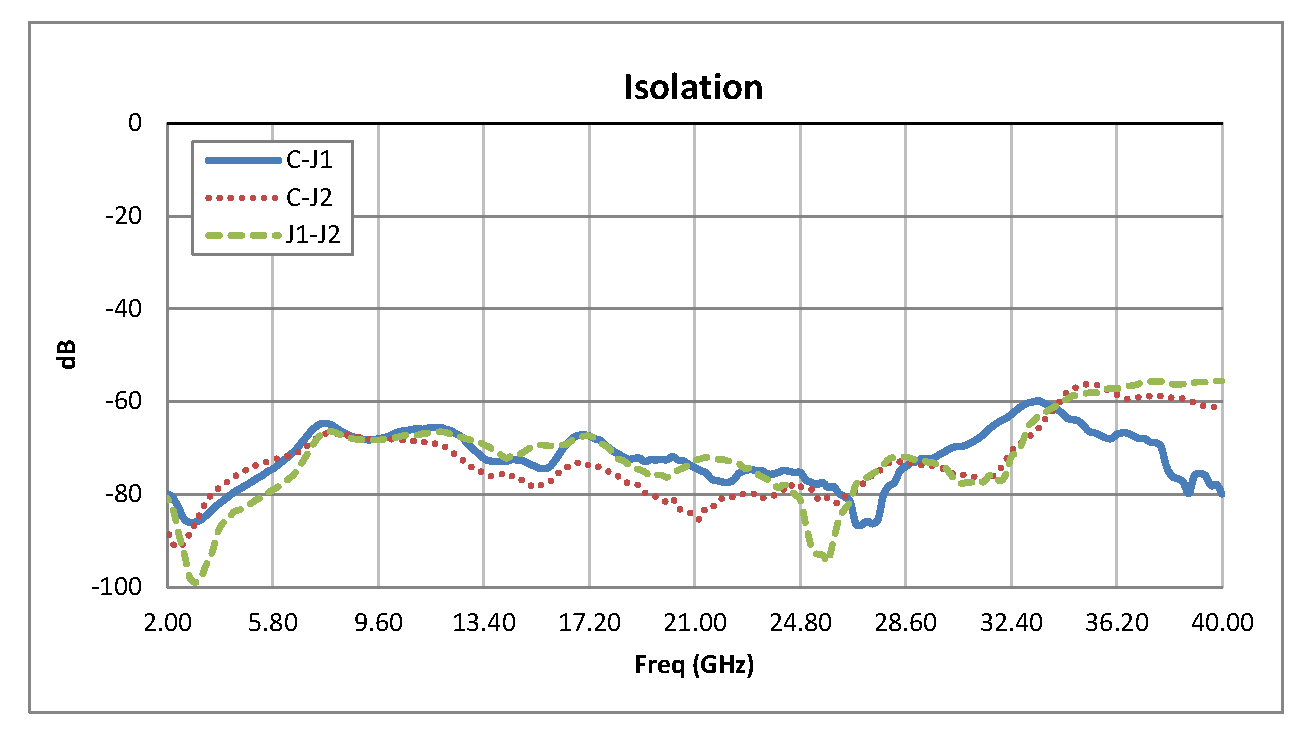

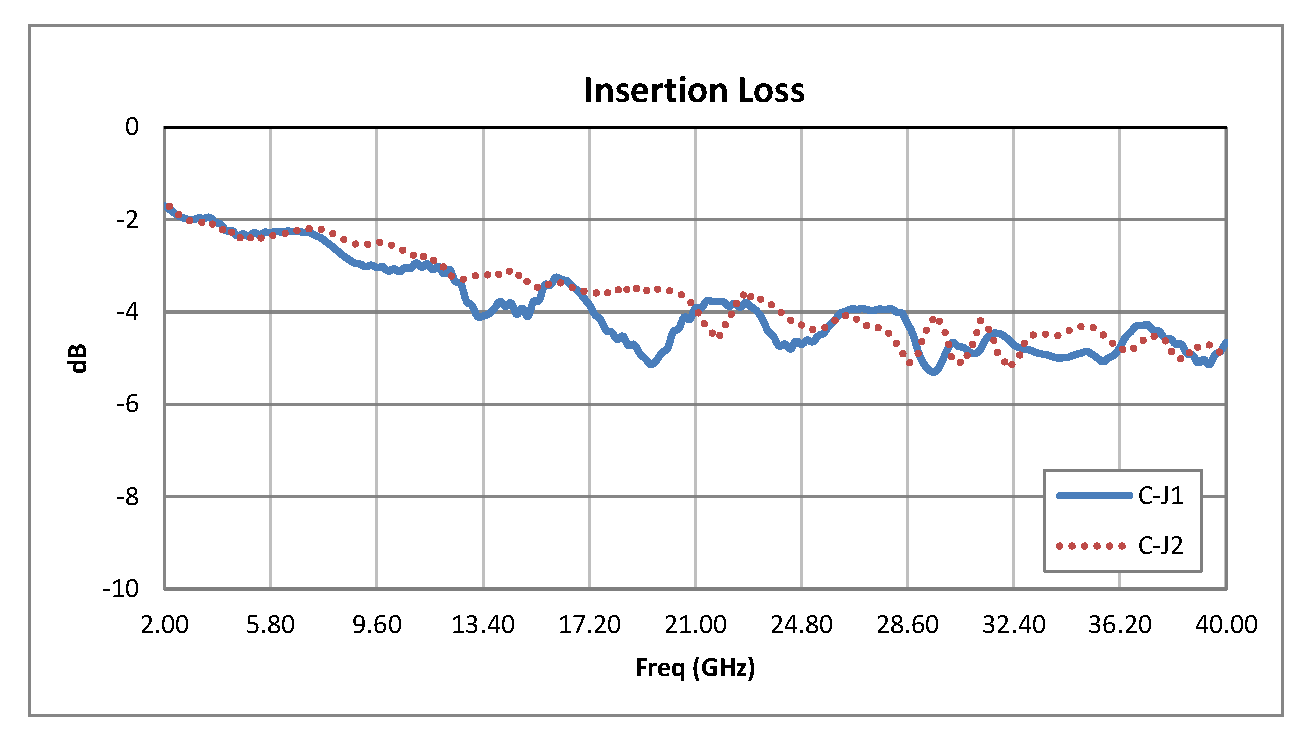

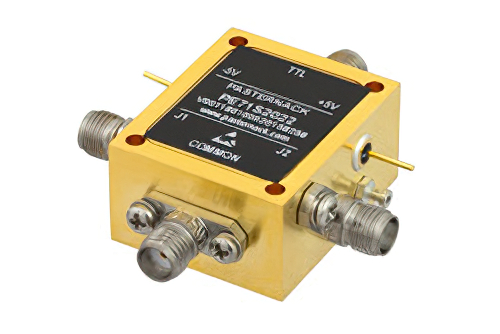

2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm
descr2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm descr2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm
PE71S2022
descr2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm descr2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm
Absorptive 2,000-40,000 55 5.5 100 0.5 2.92mm 2.92mm Female Yes

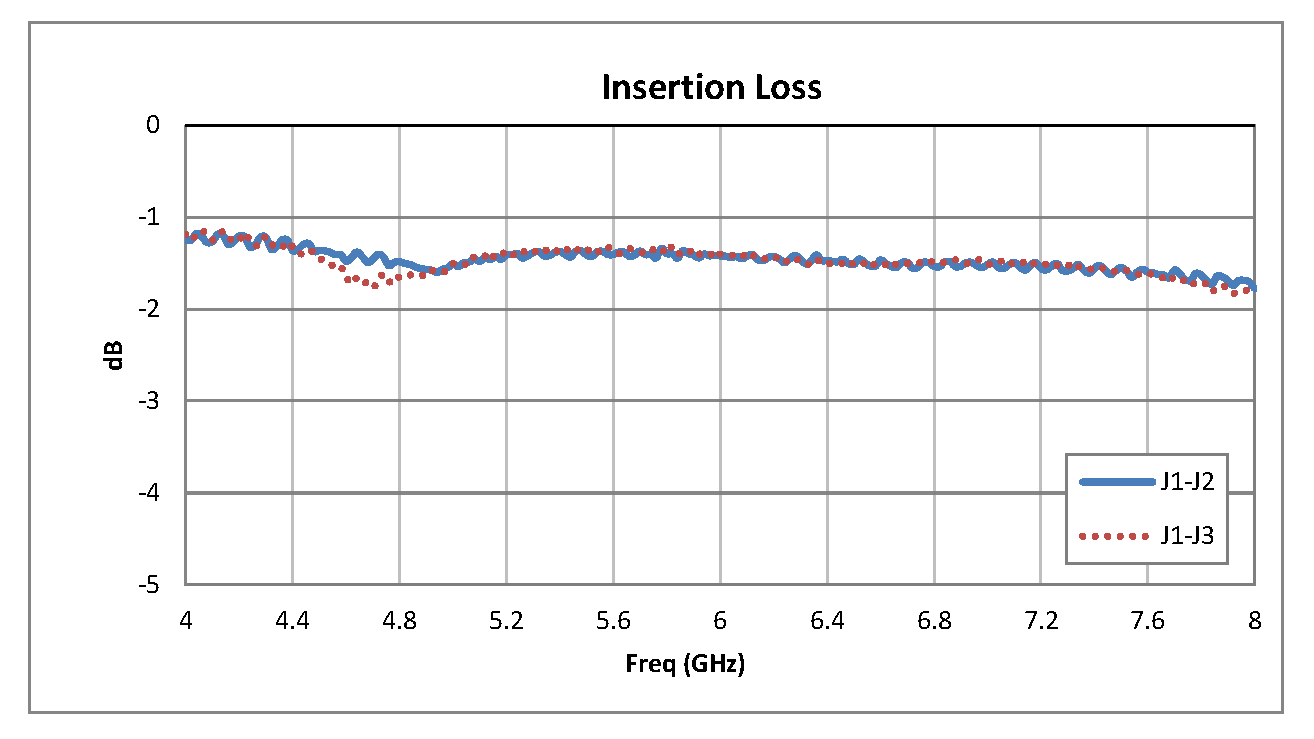

SPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA
PE71S6238
descrSPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA
Absorptive 4,000-8,000 70 1.9 100 0.1 Solder Pin SMA Female Yes

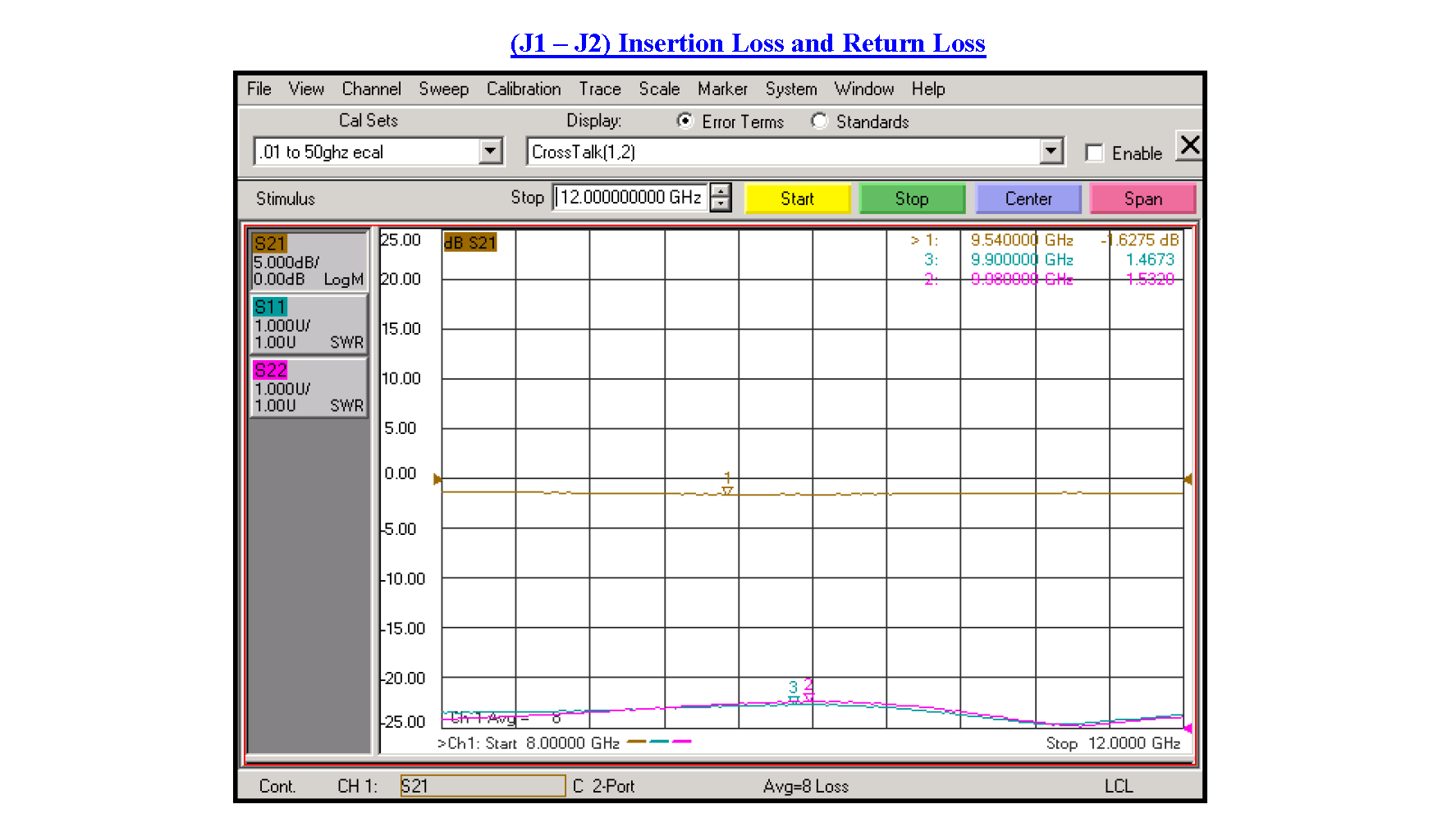

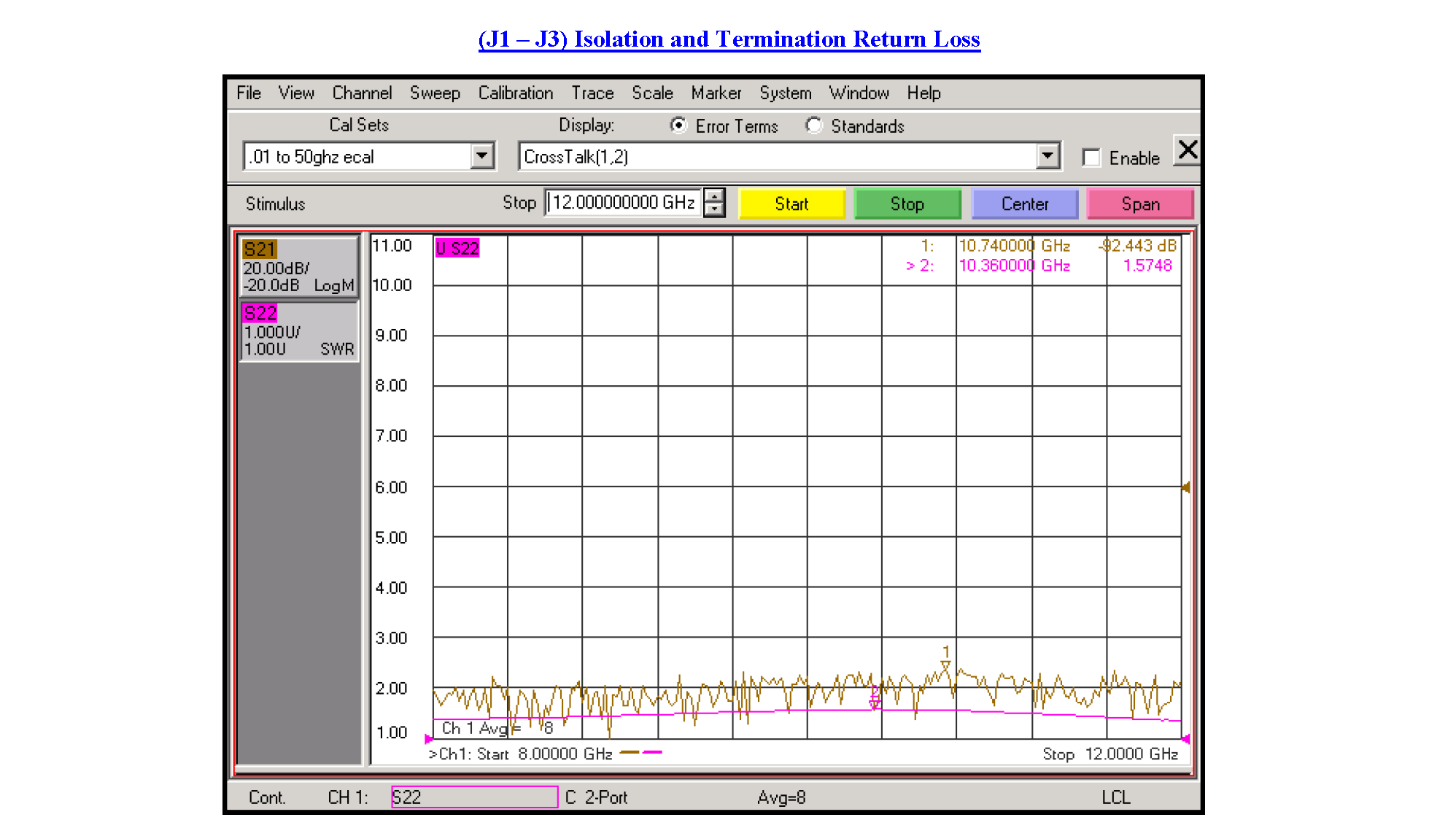

SPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA
PE71S6239
descrSPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA
Absorptive 8,000-12,000 70 2.2 100 0.1 Solder Pin SMA Female Yes

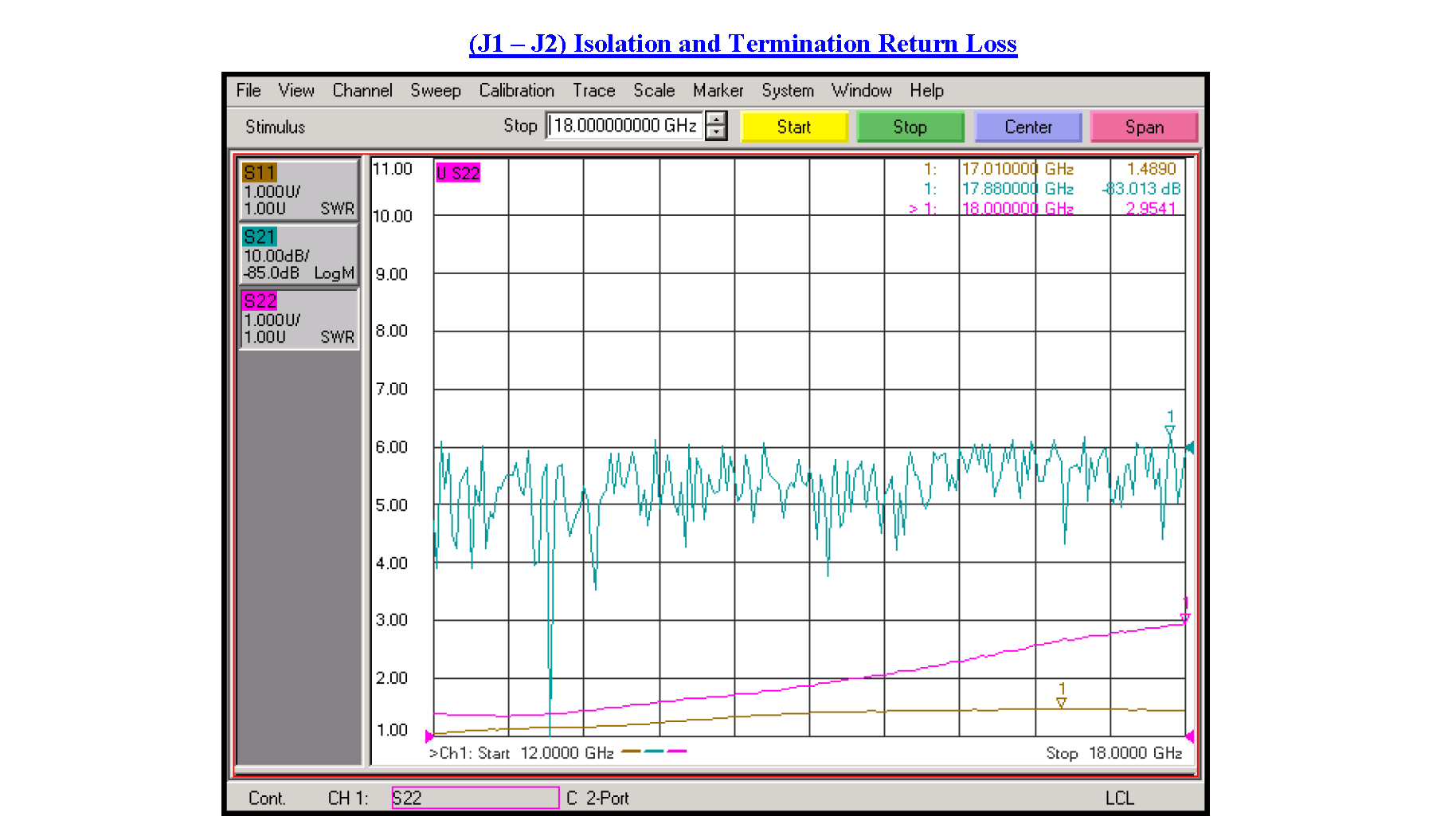

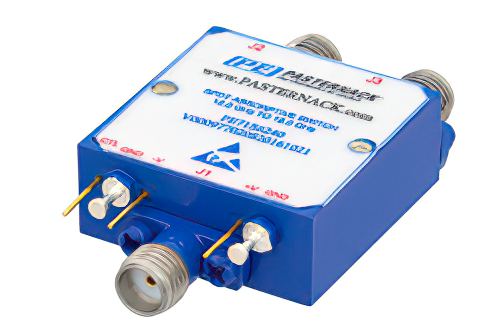

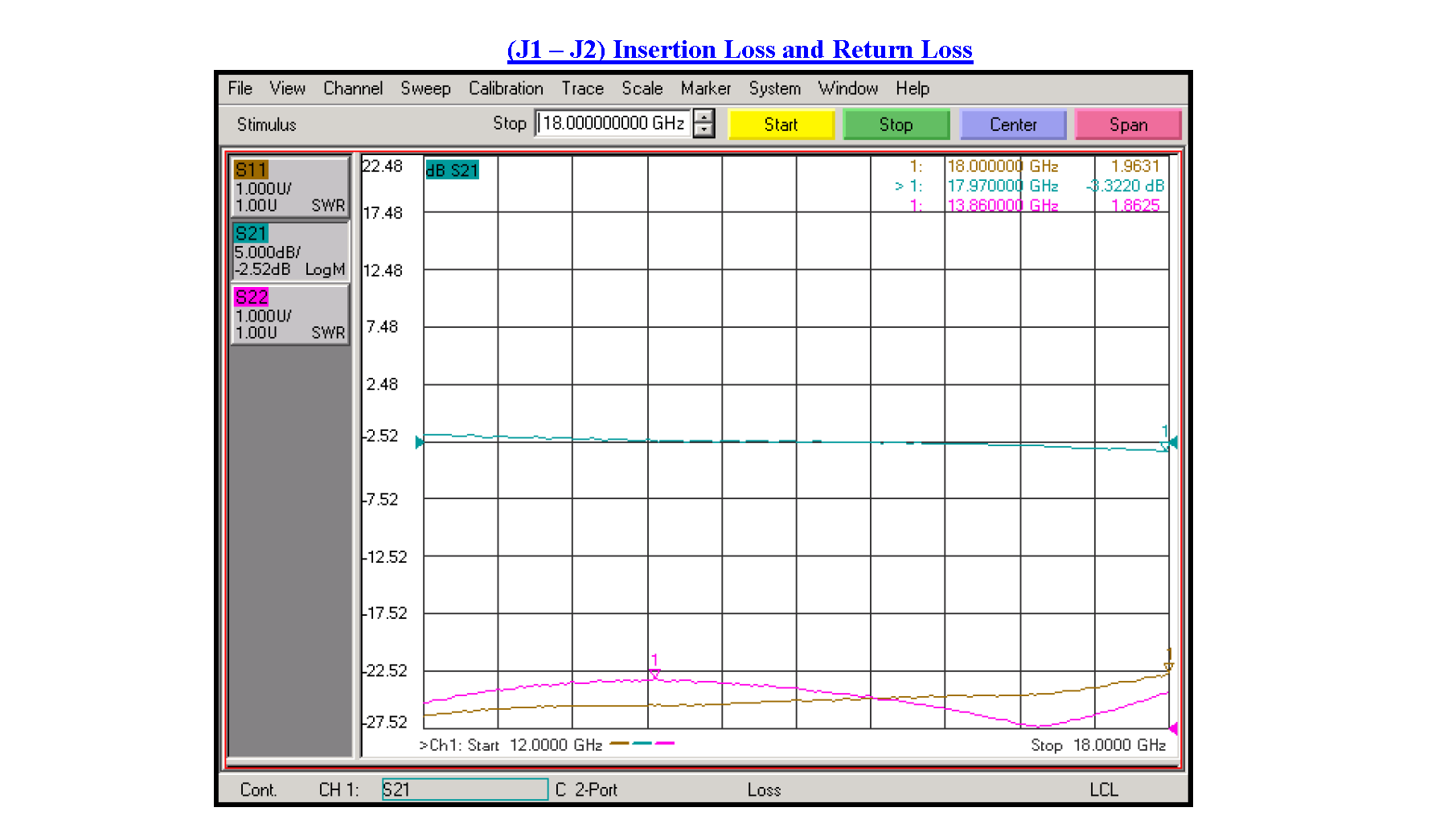

SPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA
PE71S6240
descrSPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA
Absorptive 12,000-18,000 70 3.5 100 0.1 Solder Pin SMA Female Yes

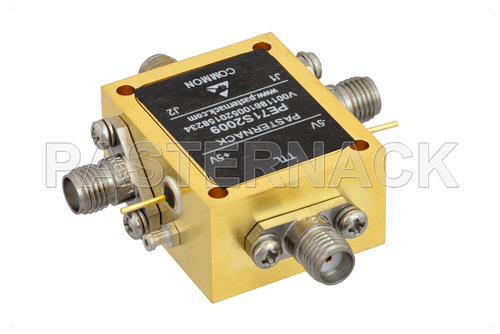

SMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm
descrSMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm descrSMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm
PE71S2009
descrSMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm descrSMA SPDT PIN Diode Switch Operating From 70 MHz to 26.5 GHz Up to +27 dBm
Reflective 70-26,500 30 3.5 100 0.5 SMA SMA Female Yes

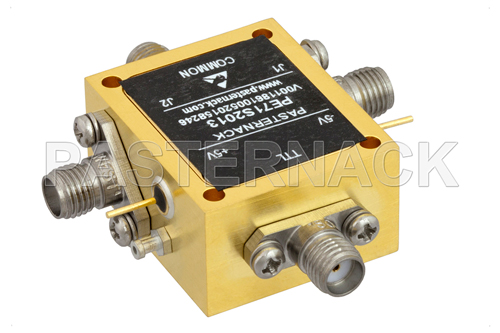

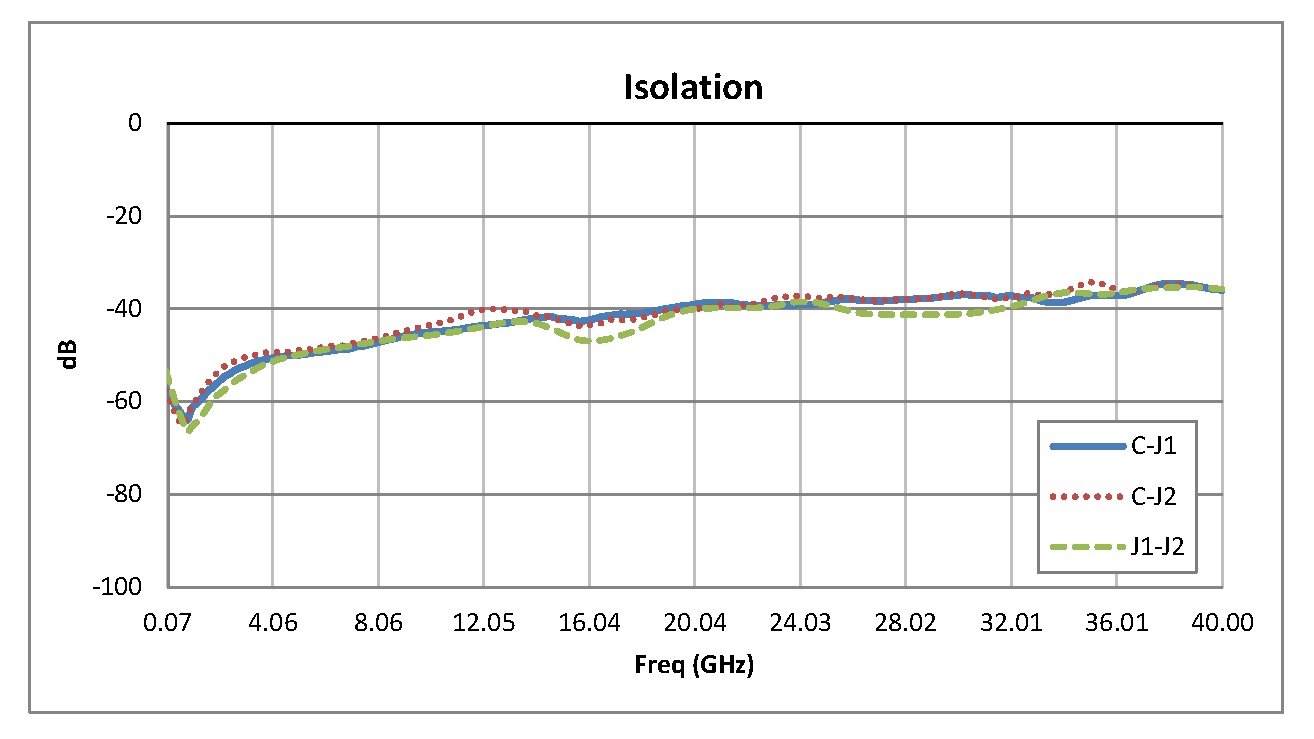

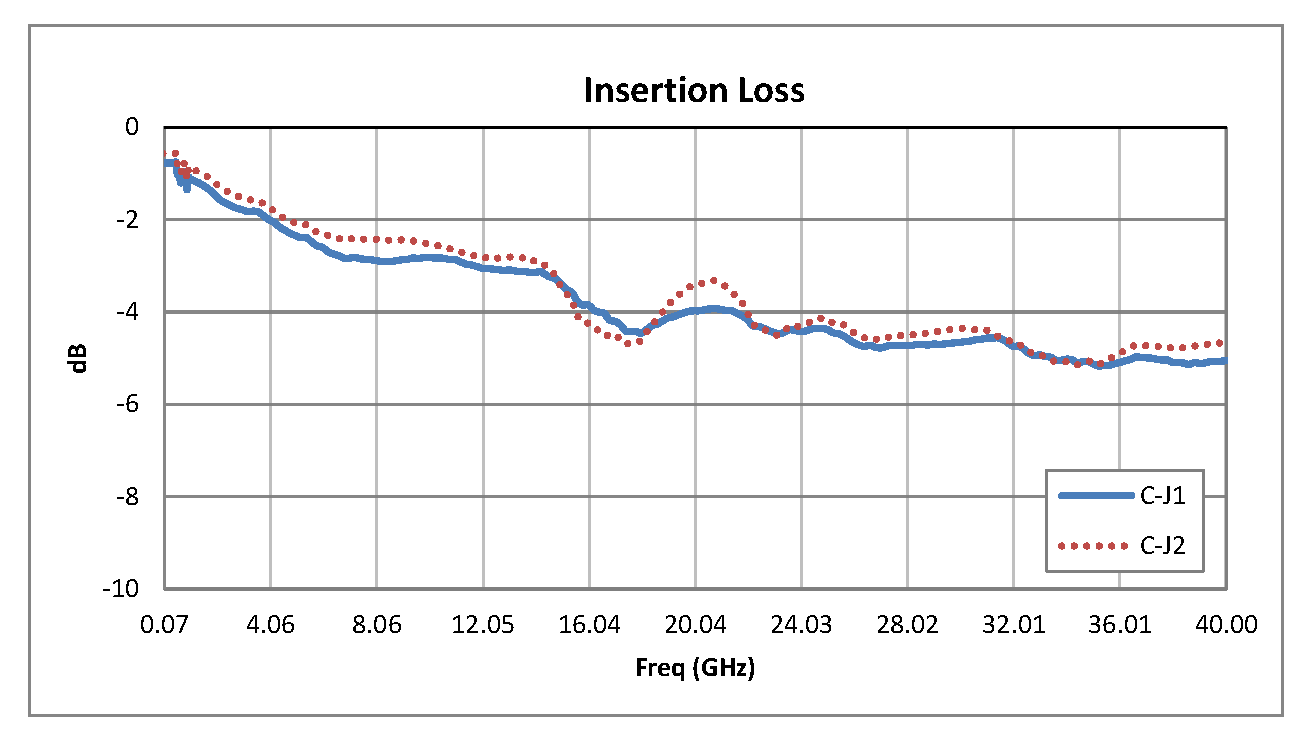

2.92mm SPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm
descr2.92mm SPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm descr2.92mm SPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm
PE71S2013
descr2.92mm SPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm descr2.92mm SPDT PIN Diode Switch Operating From 70 MHz to 40 GHz Up to +27 dBm
Reflective 70-40,000 30 5.5 100 0.5 2.92mm 2.92mm Female Yes

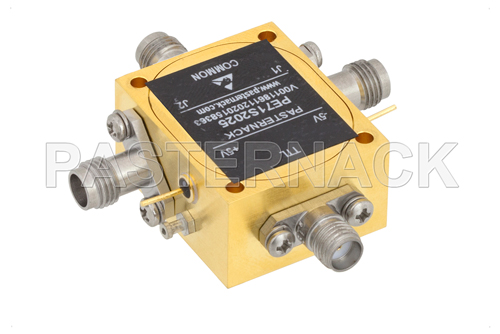

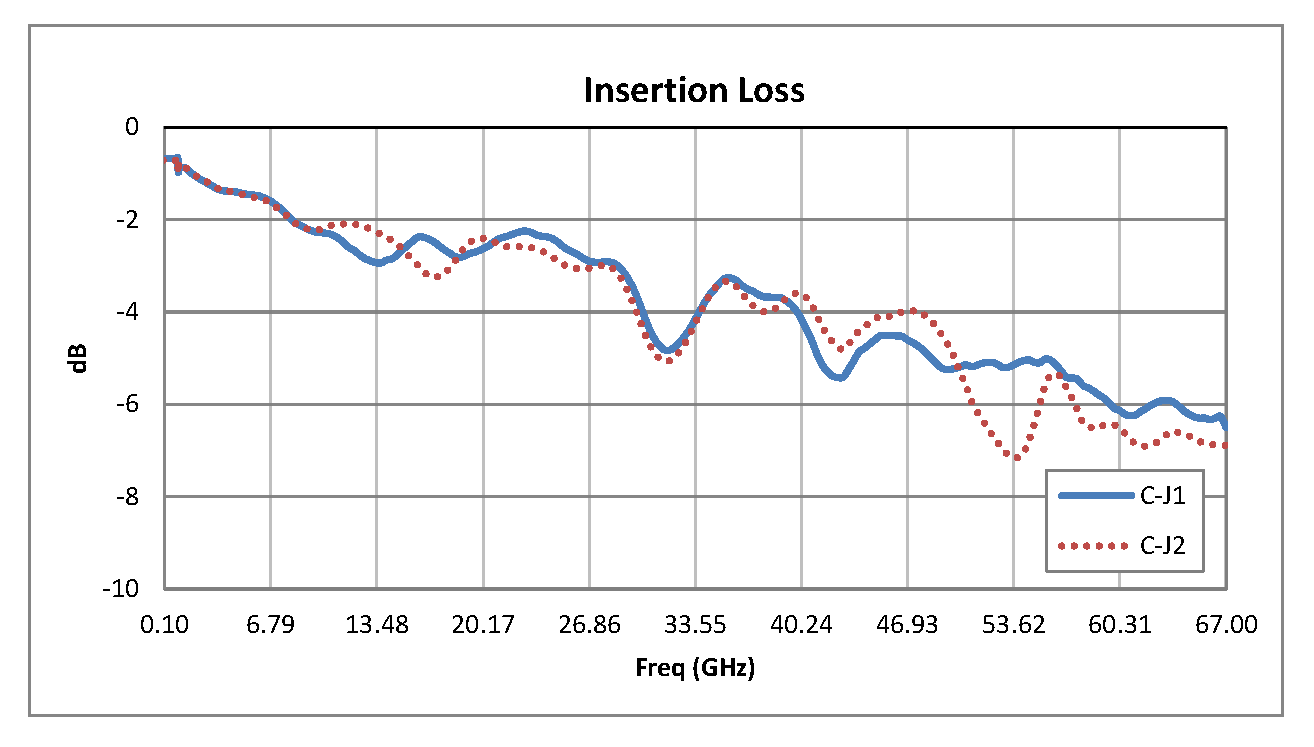

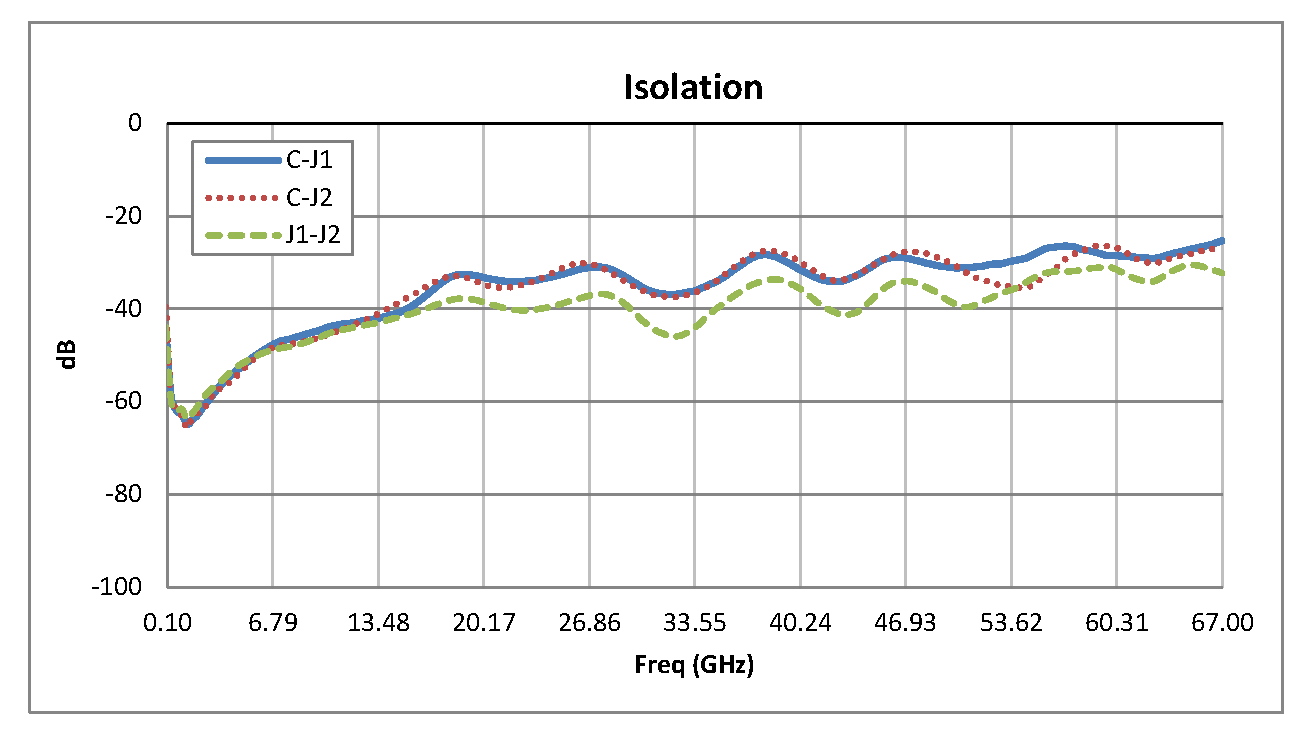

1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm
descr1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm descr1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm
PE71S2025
descr1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm descr1.85mm SPDT PIN Diode Switch Operating From 100 MHz to 67 GHz Up to +27 dBm
Reflective 100-67,000 20 7.5 100 0.5 SMA 1.85mm Female Yes

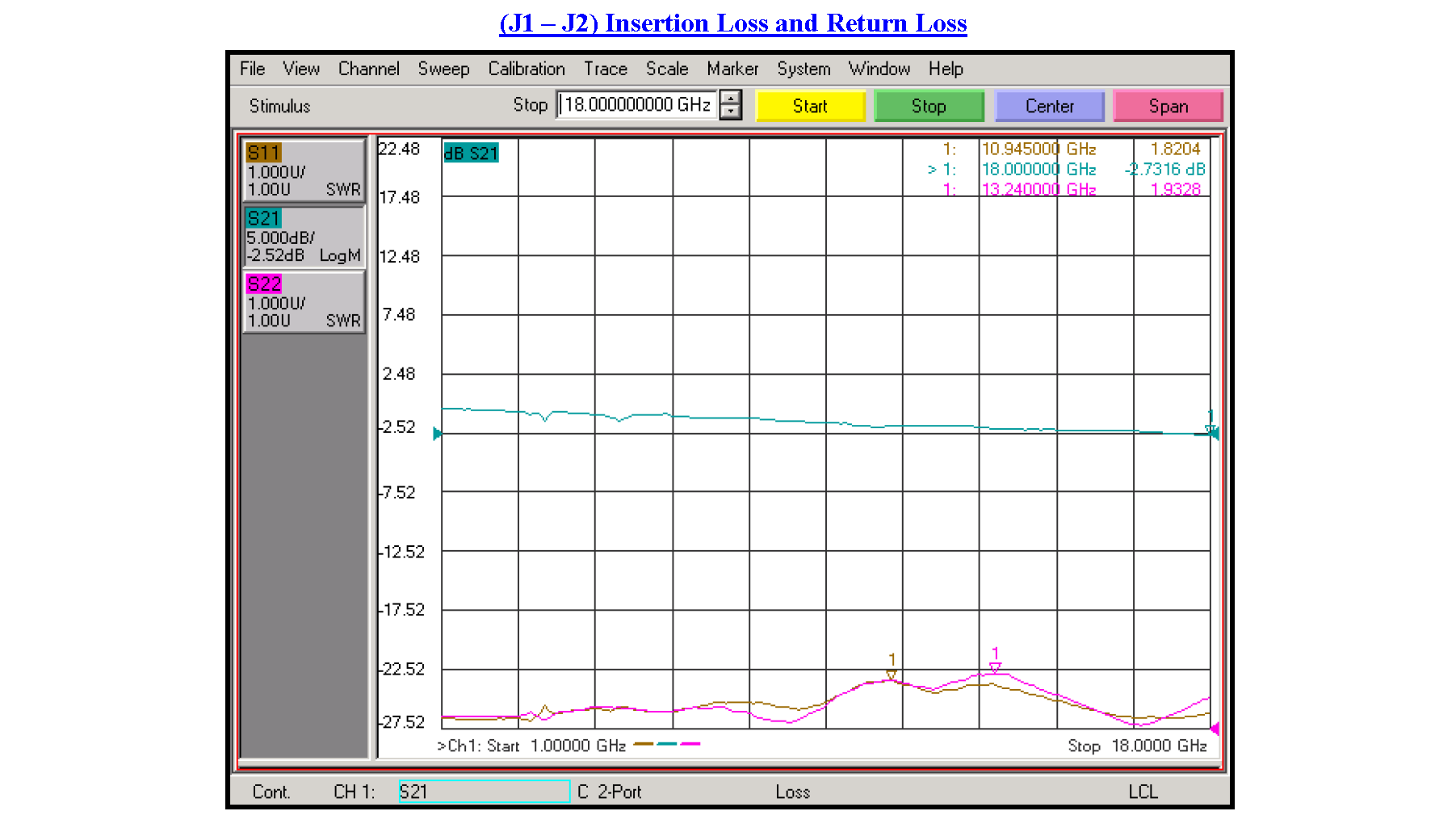

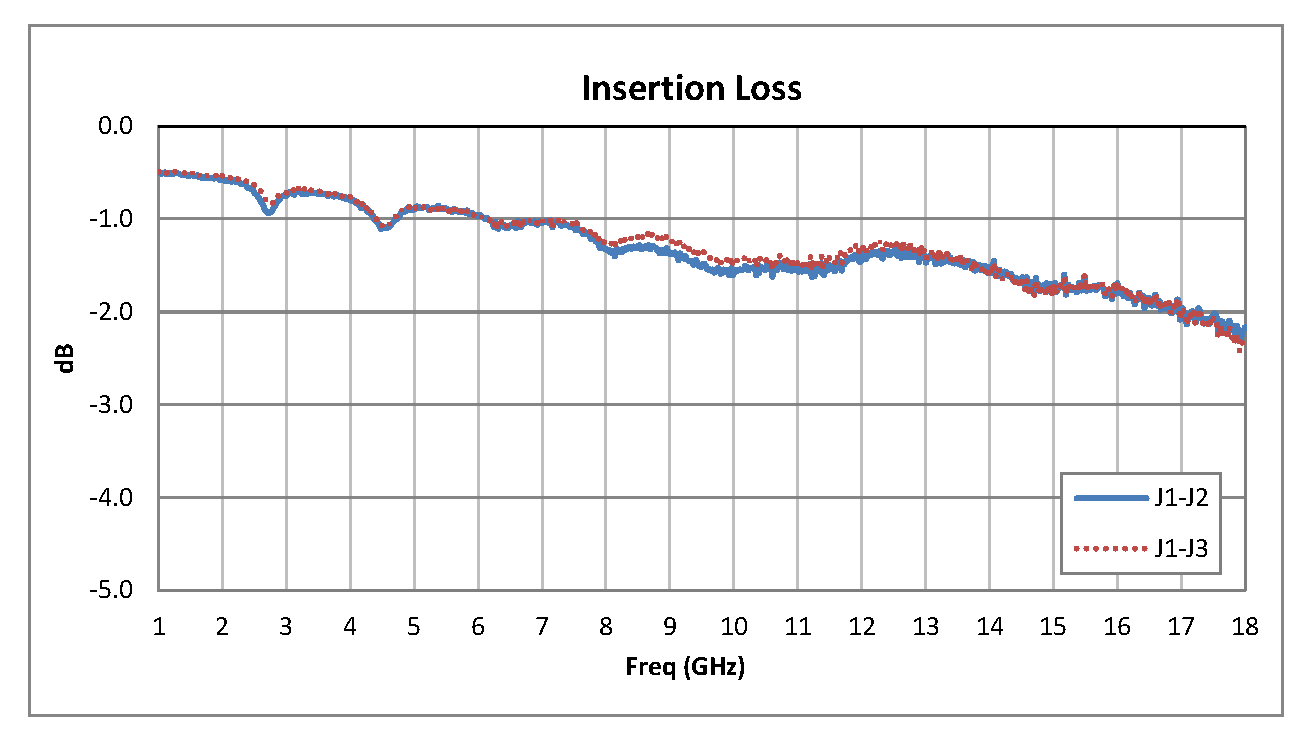

SPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA
PE71S6269
descrSPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 1 GHz to 18 GHz Up to +20 dBm and SMA
Reflective 1,000-18,000 65 2.5 100 0.1 Solder Pin SMA Female Yes

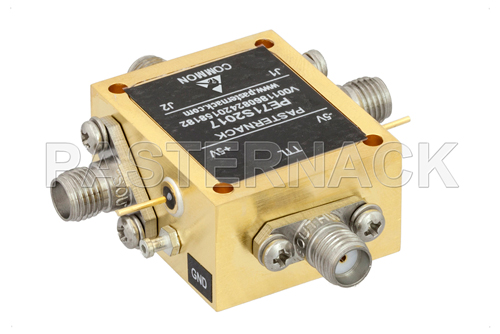

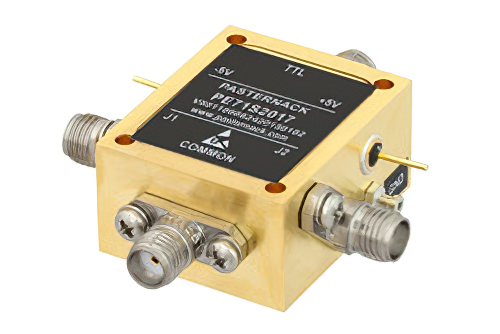

SMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +30 dBm
descrSMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +30 dBm descrSMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +30 dBm
PE71S2017
descrSMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +30 dBm descrSMA SPDT PIN Diode Switch Operating From 2 GHz to 26.5 GHz Up to +30 dBm
Reflective 2,000-26,500 30 3 100 1 SMA SMA Female Yes

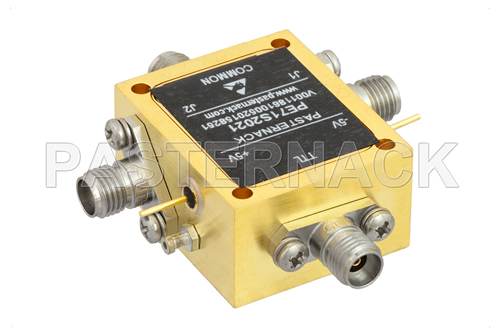

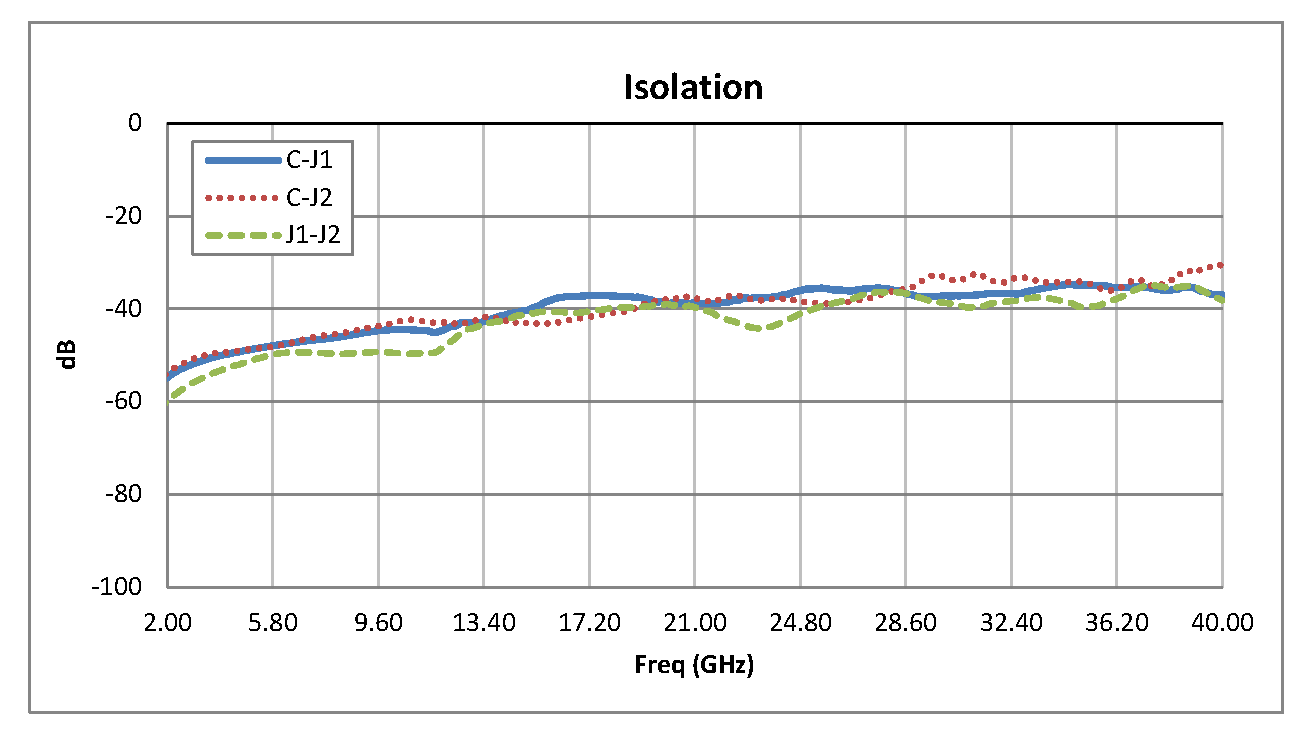

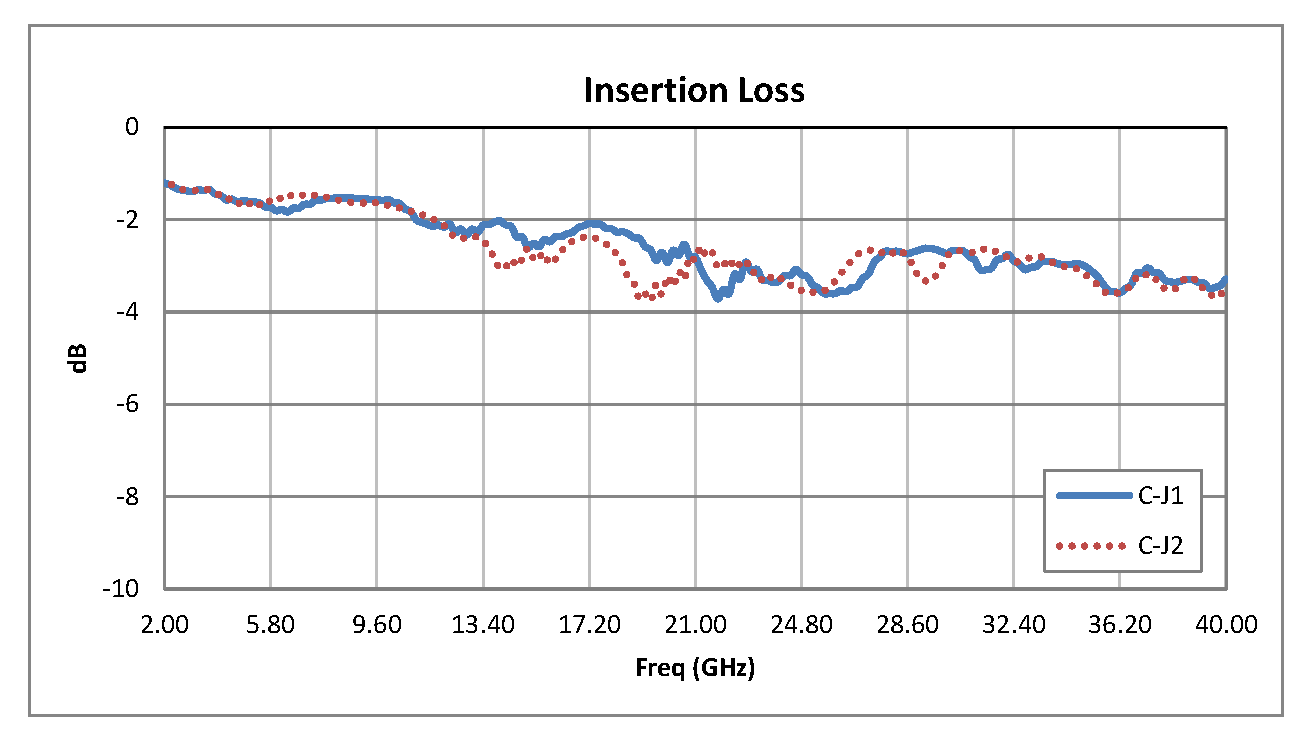

2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm
descr2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm descr2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm
PE71S2021
descr2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm descr2.92mm SPDT PIN Diode Switch Operating From 2 GHz to 40 GHz Up to +27 dBm
Reflective 2,000-40,000 30 4 200 0.5 2.92mm 2.92mm Female Yes

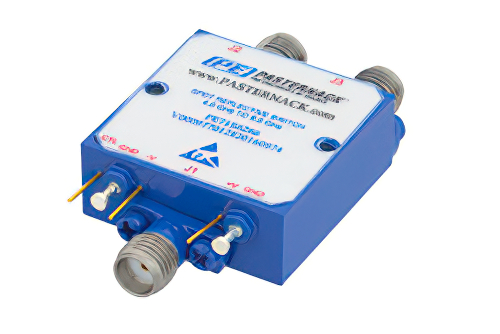

SPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA
PE71S6266
descrSPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 4 GHz to 8 GHz Up to +20 dBm and SMA
Reflective 4,000-8,000 70 1.6 100 0.1 Solder Pin SMA Female Yes

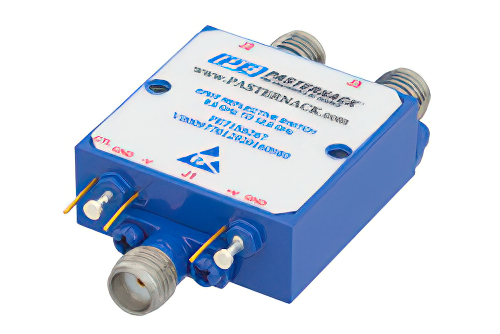

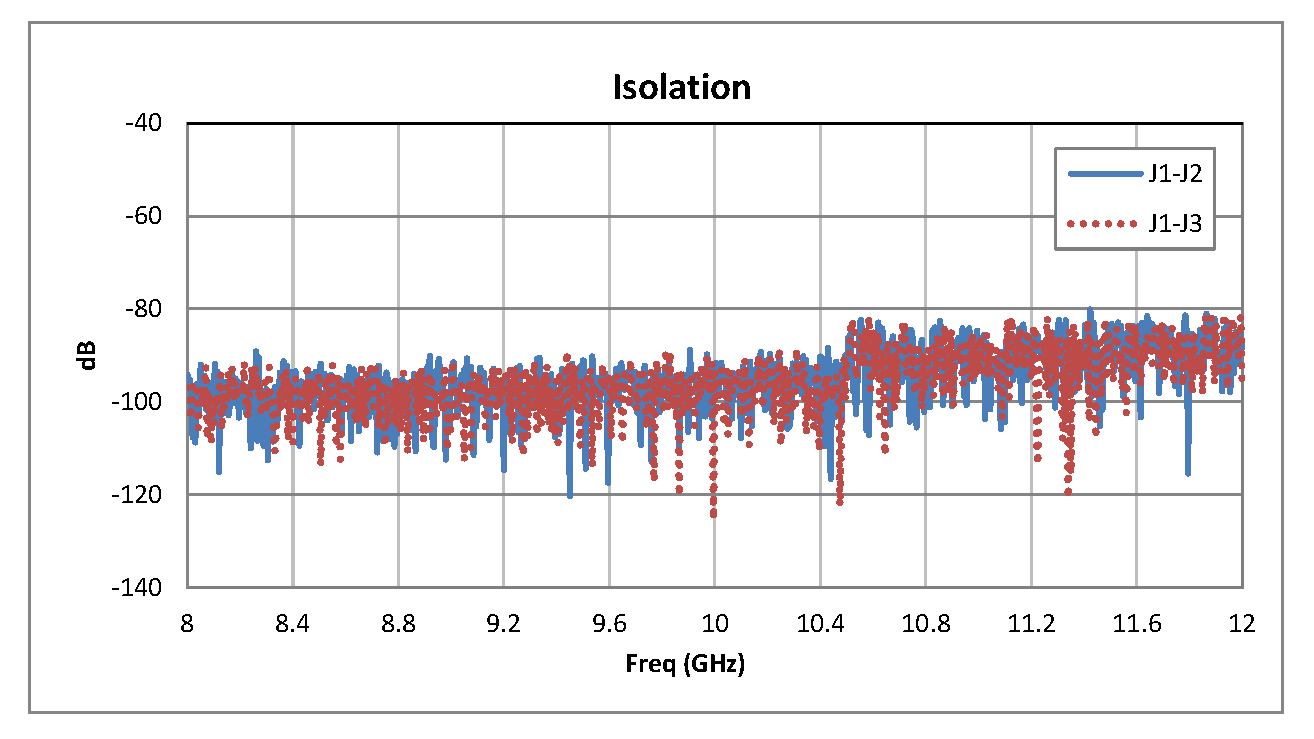

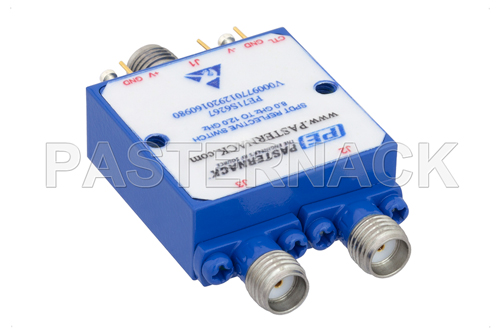

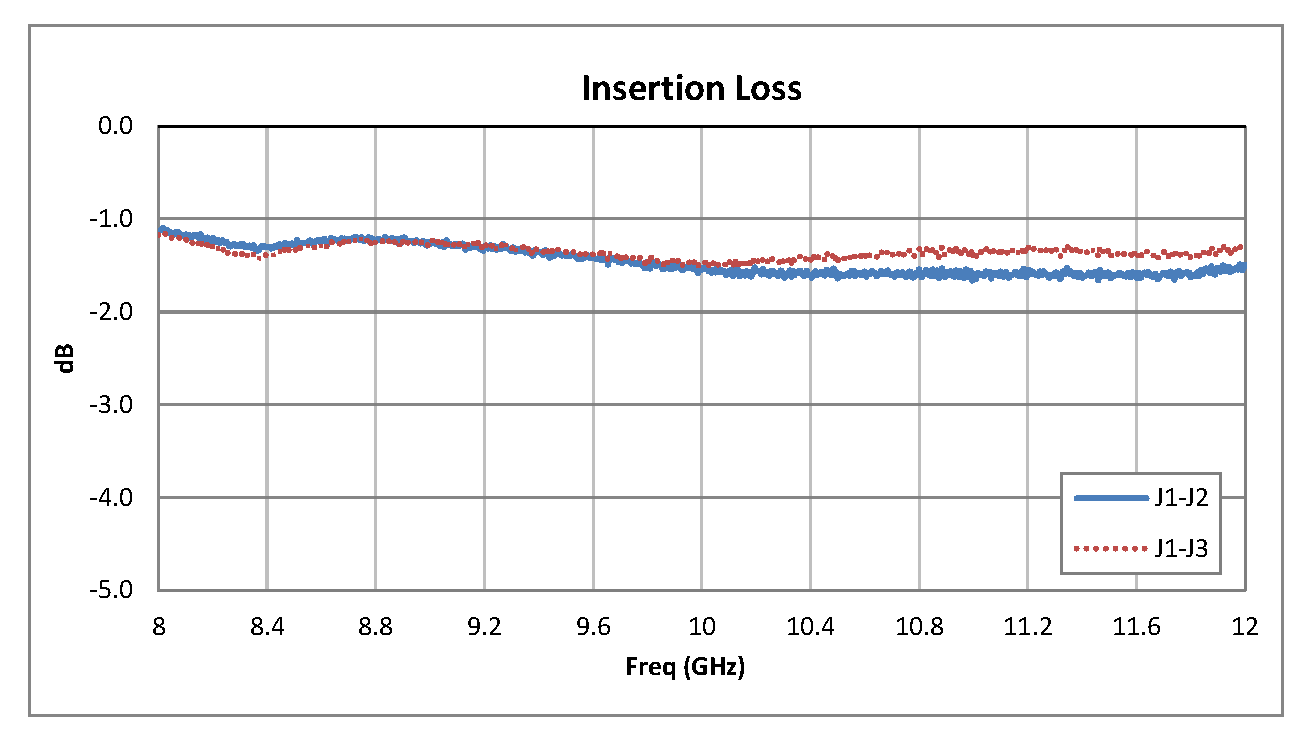

SPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA
PE71S6267
descrSPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 8 GHz to 12 GHz Up to +20 dBm and SMA
Reflective 8,000-12,000 70 1.9 100 0.1 Solder Pin SMA Female Yes

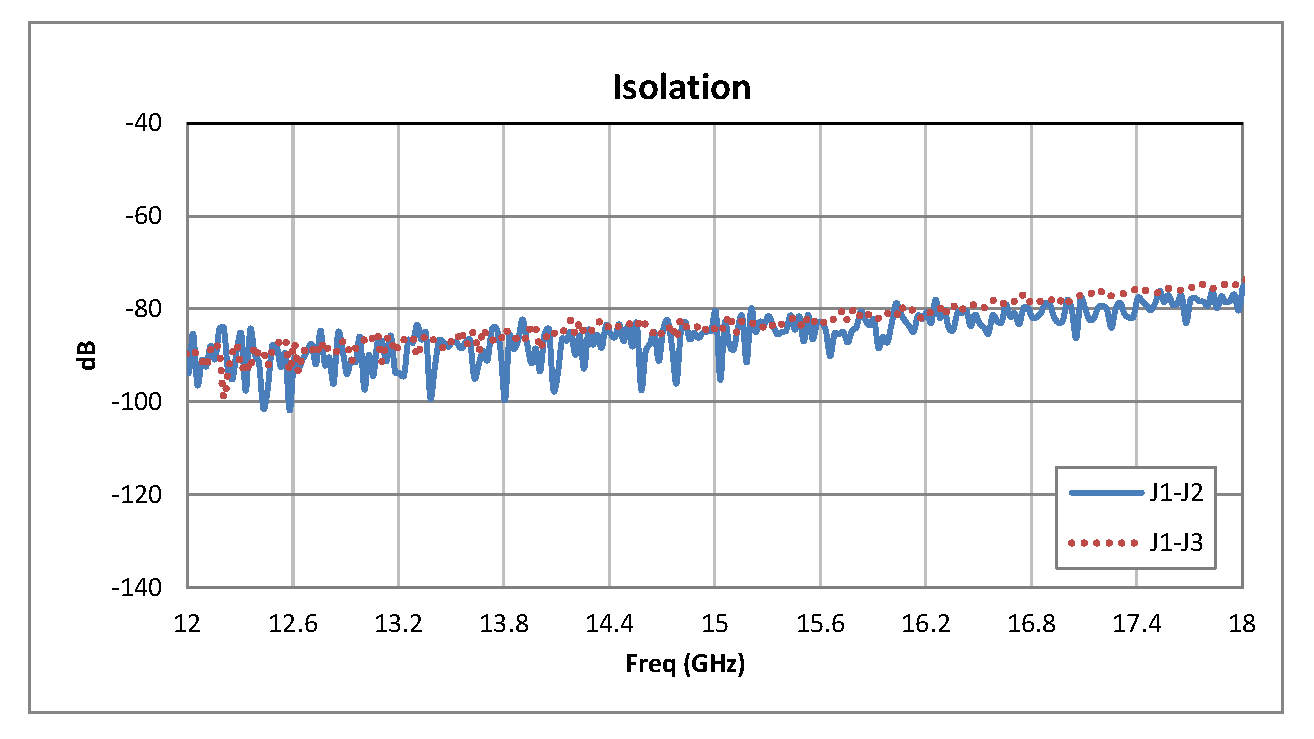

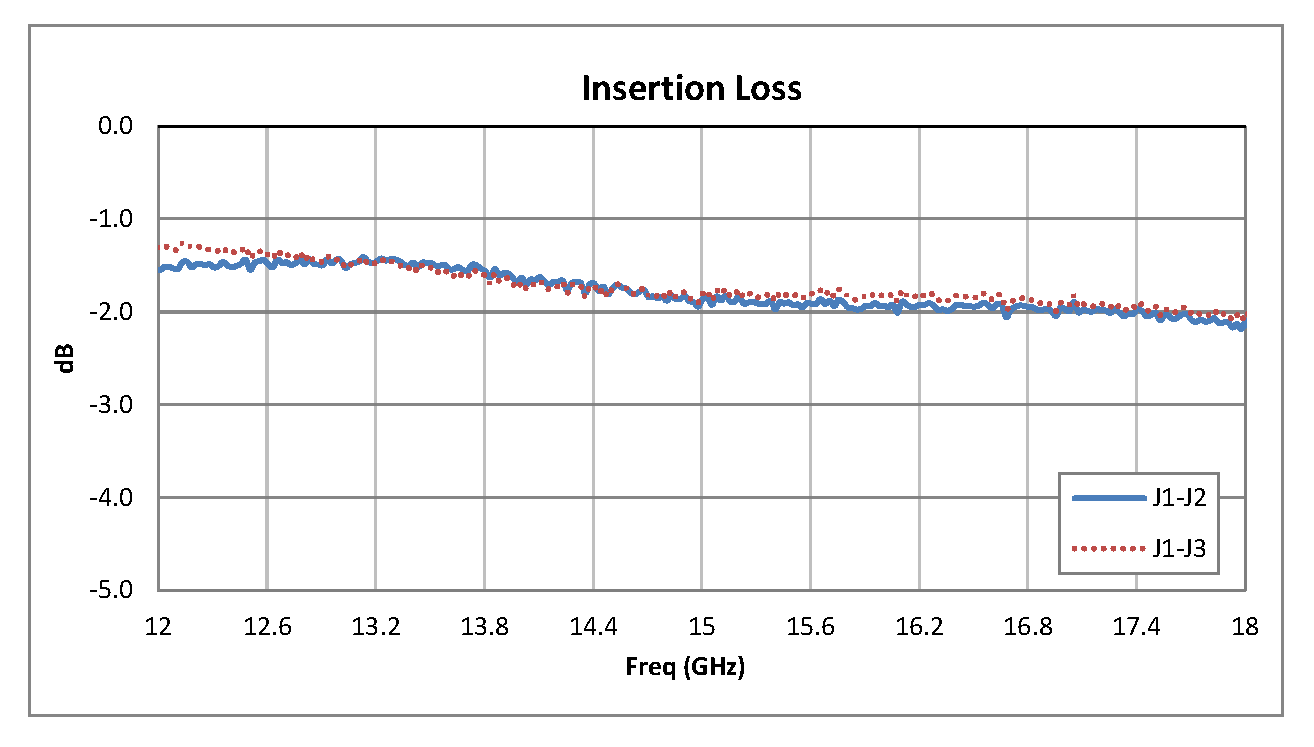

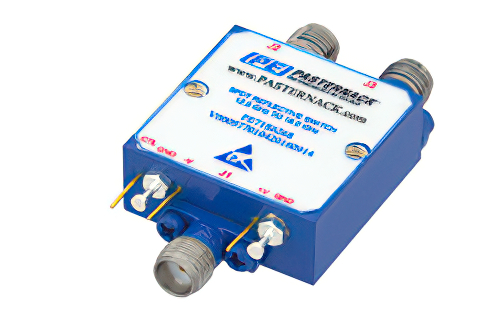

SPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA
descrSPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA
PE71S6268
descrSPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA descrSPDT PIN Diode Switch Operating From 12 GHz to 18 GHz Up to +20 dBm and SMA
Reflective 12,000-18,000 70 2.5 100 0.1 Solder Pin SMA Female Yes
