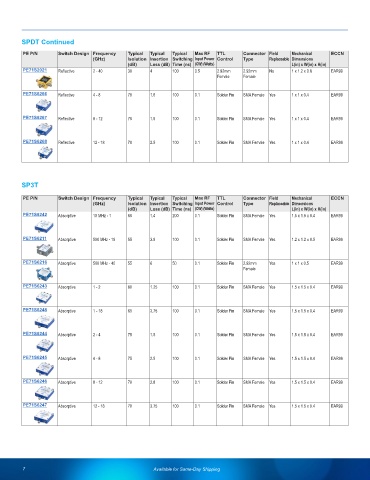

Page 8 - PIN Diode Switches Product Selection Guide

SPDT Continued
PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S2021 Reflective 2 - 40 30 4 100 0.5 2.92mm 2.92mm No 1 x 1.2 x 0.6 EAR99
Female Female

PE71S6266 Reflective 4 - 8 70 1.6 100 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.4 EAR99

PE71S6267 Reflective 8 - 12 70 1.9 100 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.4 EAR99

PE71S6268 Reflective 12 - 18 70 2.5 100 0.1 Solder Pin SMA Female Yes 1 x 1 x 0.4 EAR99

SP3T

PE P/N Switch Design Frequency Typical Typical Typical Max RF TTL Connector Field Mechanical ECCN
(GHz) Isolation Insertion Switching Input Power Control Type Replaceable Dimensions
(dB) Loss (dB) Time (ns) (CW) (Watts) L(in) x W(in) x H(in)
PE71S6242 Absorptive 10 MHz - 1 60 1.4 200 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6211 Absorptive 500 MHz - 18 55 3.8 100 0.1 Solder Pin SMA Female Yes 1.2 x 1.2 x 0.5 EAR99

PE71S6216 Absorptive 500 MHz - 40 55 6 50 0.1 Solder Pin 2.92mm Yes 1 x 1 x 0.5 EAR99
Female

PE71S6243 Absorptive 1 - 2 60 1.25 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6248 Absorptive 1 - 18 65 3.75 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6244 Absorptive 2 - 4 75 1.5 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6245 Absorptive 4 - 8 75 2.5 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6246 Absorptive 8 - 12 70 2.8 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

PE71S6247 Absorptive 12 - 18 70 3.75 100 0.1 Solder Pin SMA Female Yes 1.5 x 1.5 x 0.4 EAR99

7 Available for Same-Day Shipping
