  • Waveguide to Coax Adapter Series Available with N-type and SMA  Connectorions
  • Frequency range from 5.85 GHz to 11 GHz, C-band to X-band
  • Coax to Waveguide Adapter VSWR as low as 1.25:1
  • UG(round and square cover), CPR and CMR Style flanges



C-Band through X-Band waveguide adapter series is in stock and ready for same-day shipping!

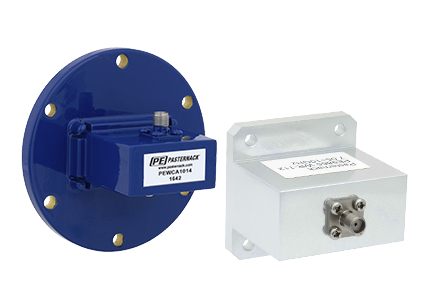

C Band Through X Band Waveguide-to-Coax Adapters

Part No.

Waveguide
Type

Frequency
Range
(GHz)

VSWR

Flange
Type

Connector
Type

Connector
Gender

ECCN

WR-137 CMR-137 Flange to SMA Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band   PE9830

WR-137

5.85 - 8.2

1.30:1

CMR-137

SMA

Female

EAR99

  • descrWR-137 CMR-137 Flange to SMA Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band
  • descrWR-137 CMR-137 Flange to SMA Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band



WR-137 CPR-137G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band   PE9838

WR-137

5.85 - 8.2

1.30:1

CPR-137G

N

Female

EAR99

  • descrWR-137 CPR-137G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band
  • descrWR-137 CPR-137G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band

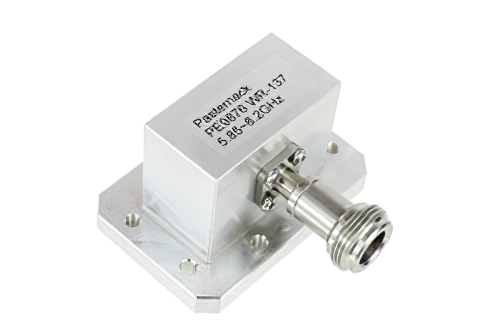

WR-137 CMR-137 Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band   PE9876

WR-137

5.85 - 8.2

1.30:1

CMR-137

N

Female

EAR99

  • descrWR-137 CMR-137 Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band
  • descrWR-137 CMR-137 Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band

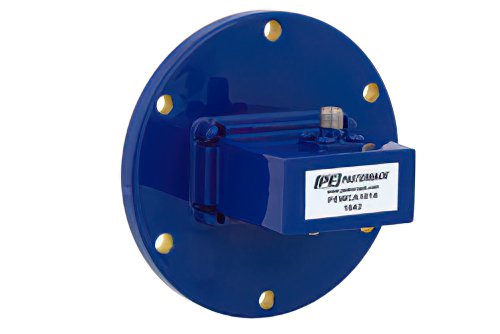

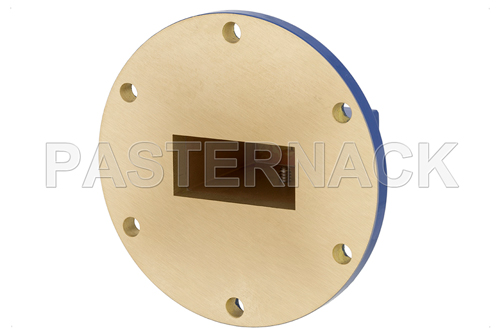

WR-137 UG-344/U Round Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band   PEWCA1014

WR-12

60 - 90

1.67:1

UG-387/U
Round Cover

1.0mm

Male

EAR99

  • descrWR-137 UG-344/U Round Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band
  • descrWR-137 UG-344/U Round Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band

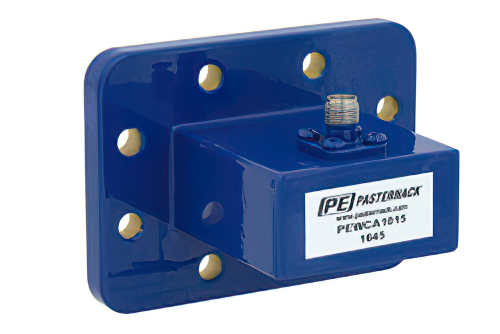

WR-137 CPR-137G Grooved Flange to SMA Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band   PEWCA1015

WR-12

60 - 90

1.67:1

UG-387/U
Round Cover

1.0mm

Male

EAR99

  • descrWR-137 CPR-137G Grooved Flange to SMA Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band
  • descrWR-137 CPR-137G Grooved Flange to SMA Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band

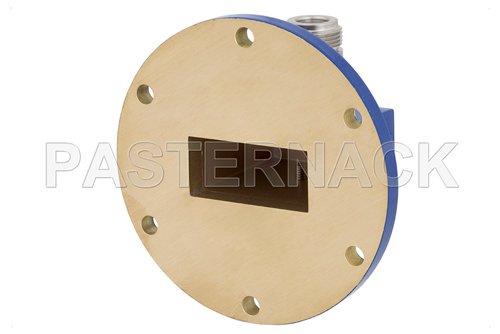

WR-137 UG-344/U Round Cover Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band   PEWCA1016

WR-12

60 - 90

1.67:1

UG-387/U
Round Cover

1.0mm

Male

EAR99

  • descrWR-137 UG-344/U Round Cover Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band
  • descrWR-137 UG-344/U Round Cover Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band

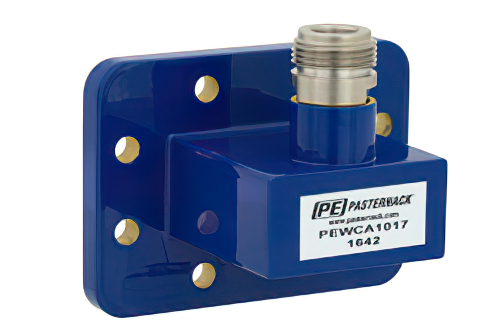

WR-137 CPR-137G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band   PEWCA1017

WR-12

60 - 90

1.67:1

UG-387/U
Round Cover

1.0mm

Male

EAR99

  • descrWR-137 CPR-137G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band
  • descrWR-137 CPR-137G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 5.85 GHz to 8.2 GHz, C Band

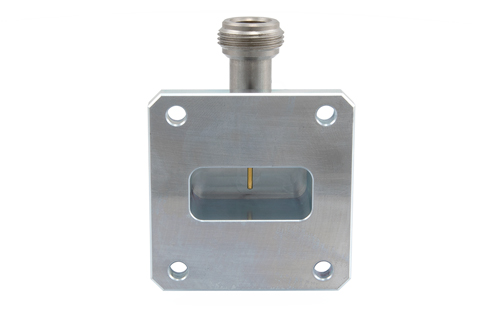

WR-112 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band   PE9820

WR-112

7.05 - 10

1.30:1

Square Type

N

Female

EAR99

  • descrWR-112 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band
  • descrWR-112 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band

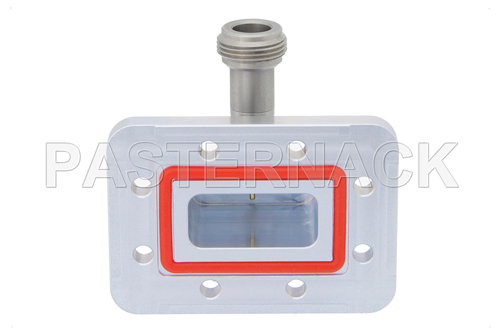

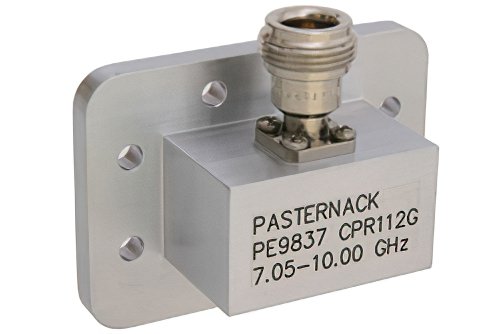

WR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band   PE9837

WR-112

7.05 - 10

1.30:1

CPR-112G

N

Female

EAR99

  • descrWR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band
  • descrWR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band

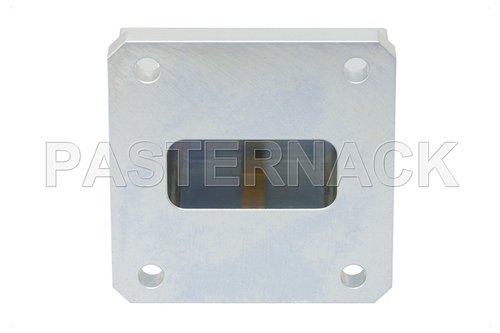

WR-112 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band   PE9865

WR-112

7.05 - 10

1.40:1

Square Type

SMA

Female

EAR99

  • descrWR-112 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band
  • descrWR-112 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band

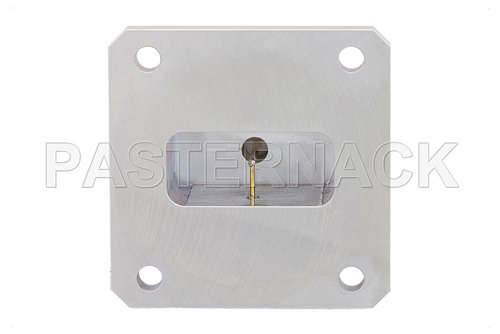

WR-112 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz   PE9870

WR-112

7.05 - 10

1.30:1

Square Type

N

Female

EAR99

  • descrWR-112 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz
  • descrWR-112 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz

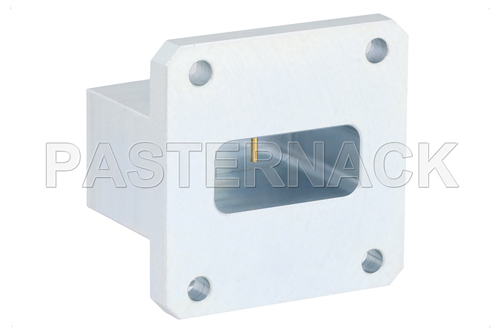

WR-112 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band   PE9884

WR-112

7.05 - 10

1.30:1

Square Type

SMA

Female

EAR99

  • descrWR-112 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band
  • descrWR-112 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, X Band

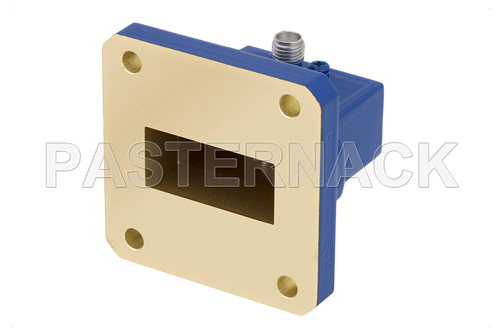

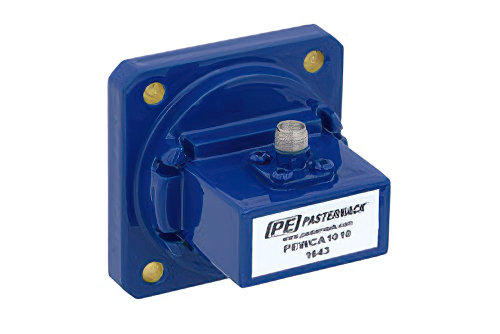

WR-112 UG-51/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band   PEWCA1010

WR-112

7.05 - 10

1.25:1

UG-51/U
Square Cover

SMA

Female

EAR99

  • descrWR-112 UG-51/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band
  • descrWR-112 UG-51/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band

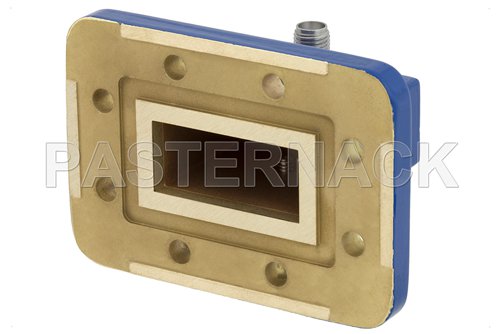

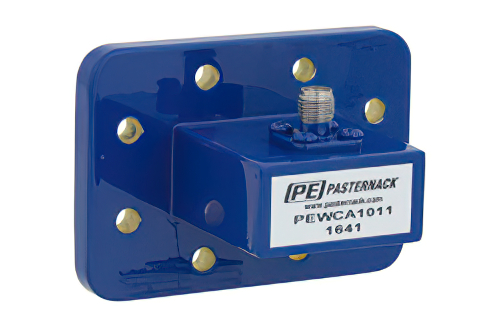

WR-112 CPR-112G Grooved Flange to SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band   PEWCA1011

WR-112

7.05 - 10

1.25:1

CPR-112G

SMA

Female

EAR99

  • descrWR-112 CPR-112G Grooved Flange to SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band
  • descrWR-112 CPR-112G Grooved Flange to SMA Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band



WR-112 UG-51/U Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band   PEWCA1012

WR-112

7.05 - 10

1.25:1

UG-51/U
Square Cover

N

Female

EAR99

  • descrWR-112 UG-51/U Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band
  • descrWR-112 UG-51/U Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band

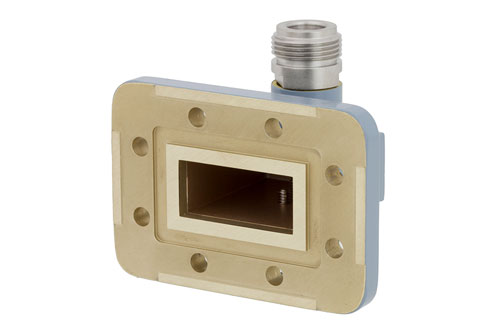

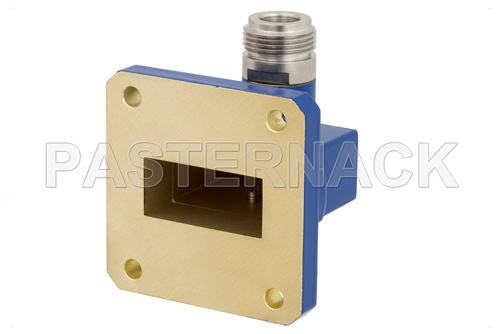

WR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band   PEWCA1013

WR-112

7.05 - 10

1.25:1

CPR-112G

N

Female

EAR99

  • descrWR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band
  • descrWR-112 CPR-112G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 7.05 GHz to 10 GHz, H Band



Waveguide to Coax Adapter Series in C-Band through X-Band

Pasternack’s C band through X band waveguide to coax adapter series is available with SMA and N-Type style connections. These waveguide to coax adapter components feature VSWR as low as 1.25:1. The coax to waveguide adapters support frequency ranges of 5.85 GHz to 11 GHz.

Typical applications for these C-band through X-band waveguide to coax adapters include instrumentation, test benches, high efficiency RF/Microwave transmission, SATCOM, MILCOM, radar and telecom. As with the other over 40,000 RF, microwave and millimeter wave components, this waveguide to coax adapter series is in stock and ships the same-day.
