  • Waveguide to coax adapter series is available with N-type, SMA and 7mm connections
  • Coaxial to waveguide adapter frequency range range from 8.2 GHz to 18 GHz, X-band to Ku-band
  • X-band through Ku-band waveguide adapter VSWR as low as 1.20:1
  • Waveguide UG and CPR Style flanges



Adapters for waveguide to coax are in stock and ready for same-day shipping!

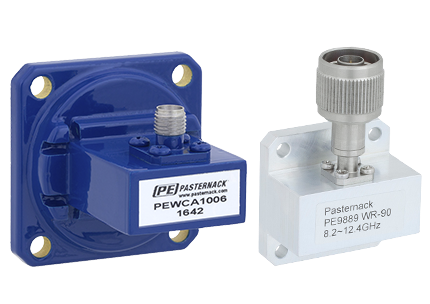

X Band Through Ku Band Waveguide-to-Coax Adapters

Part No.

Waveguide
Type

Frequency
Range
(GHz)

VSWR

Flange
Type

Connector
Type

Connector
Gender

ECCN

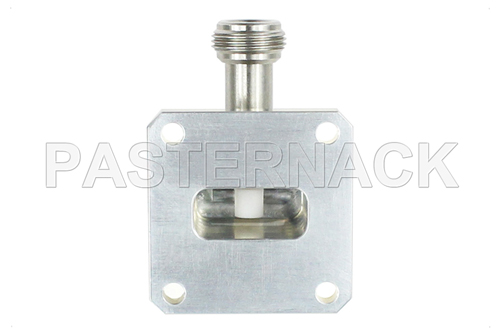

WR-90 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PE9801

WR-90

8.2 - 12.4

1.30:1

Square Type

N

Female

EAR99

  • descrWR-90 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band



WR-90 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PE9804

WR-90

8.2 - 12.4

1.30:1

Square Type

SMA

Female

EAR99

  • descrWR-90 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band



WR-90 Square Type Flange to SMA Male Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PE9810

WR-90

8.2 - 12.4

1.30:1

Square Type

SMA

Male

EAR99

  • descrWR-90 Square Type Flange to SMA Male Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 Square Type Flange to SMA Male Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

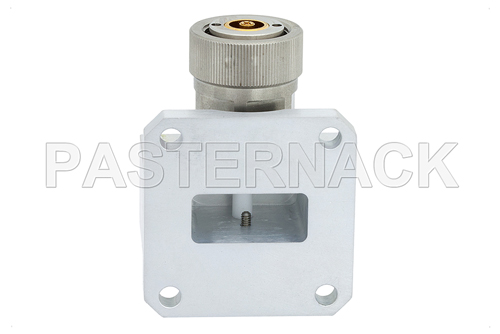

WR-90 Square Cover Flange to 7mm Sexless Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz   PE9815

WR-90

8.2 - 12.4

1.20:1

Square Cover

7mm

Sexless

EAR99

  • descrWR-90 Square Cover Flange to 7mm Sexless Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz
  • descrWR-90 Square Cover Flange to 7mm Sexless Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz

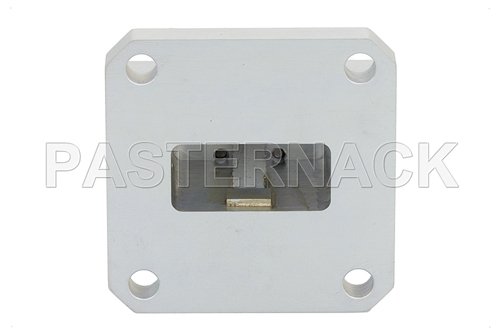

WR-90 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PE9848

WR-90

8.2 - 12.4

1.30:1

Square Type

SMA

Female

EAR99

  • descrWR-90 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

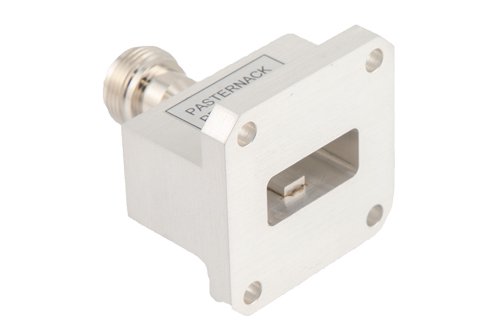

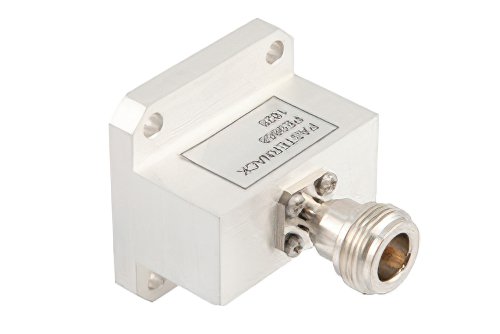

WR-90 UG-135/U Square Cover Flange to End Launch N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PE9868

WR-90

8.2 - 12.4

1.20:1

UG-135/U
Square Cover

N

Female

EAR99

  • descrWR-90 UG-135/U Square Cover Flange to End Launch N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 UG-135/U Square Cover Flange to End Launch N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

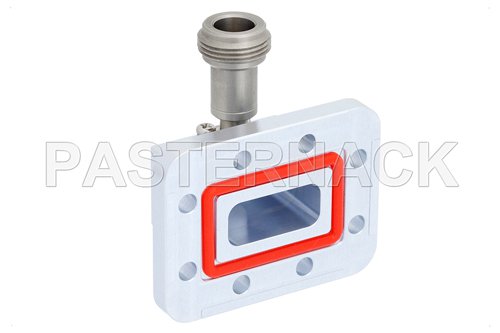

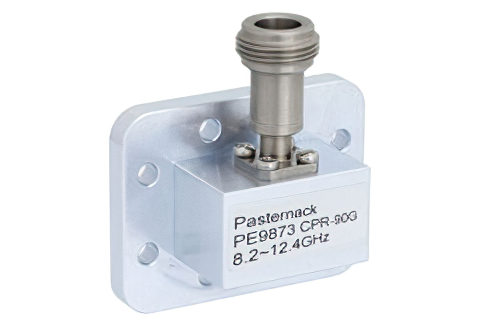

WR-90 CPR-90G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PE9873

WR-90

8.2 - 12.4

1.30:1

CPR-90G

N

Female

EAR99

  • descrWR-90 CPR-90G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 CPR-90G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

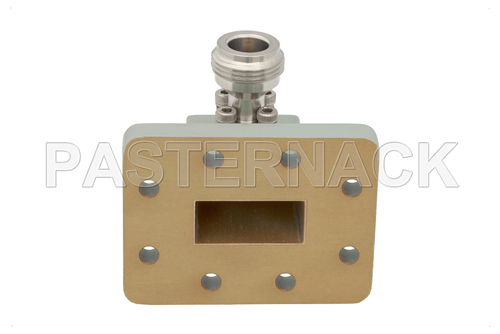

WR-90 UDR100 Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz   PE9883

WR-90

8.2 - 12.4

1.25:1

UDR100

N

Female

EAR99

  • descrWR-90 UDR100 Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz
  • descrWR-90 UDR100 Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz

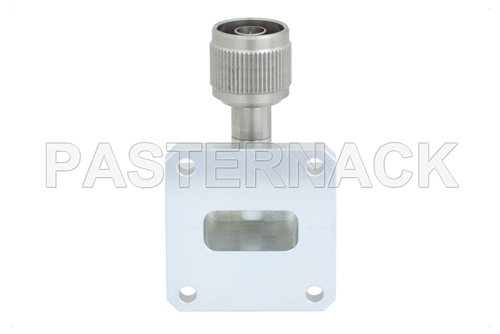

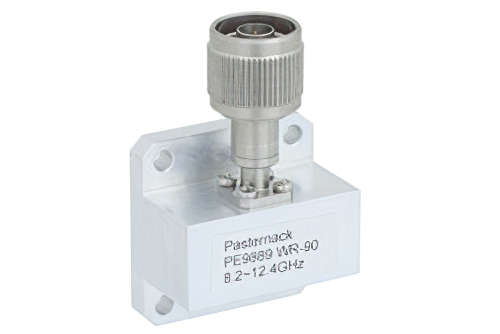

WR-90 Square Type Flange to N Male Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PE9889

WR-112

7.05 - 10

1.30:1

Square Type

SMA

Female

EAR99

  • descrWR-90 Square Type Flange to N Male Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 Square Type Flange to N Male Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

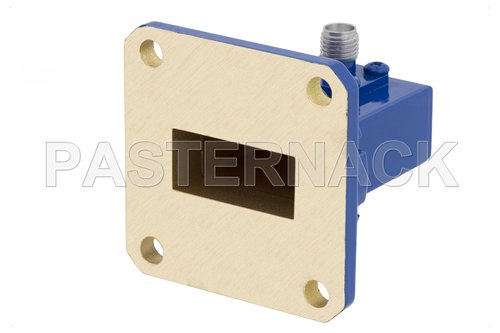

WR-90 UG-39/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PEWCA1006

WR-90

8.2 - 12.4

1.25:1

UG-39/U
Square Cover

SMA

Female

EAR99

  • descrWR-90 UG-39/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 UG-39/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

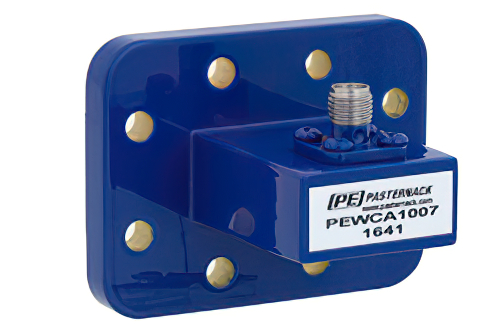

WR-90 CPR-90G Grooved Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PEWCA1007

WR-90

8.2 - 12.4

1.25:1

CPR-90G

SMA

Female

EAR99

  • descrWR-90 CPR-90G Grooved Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 CPR-90G Grooved Flange to SMA Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

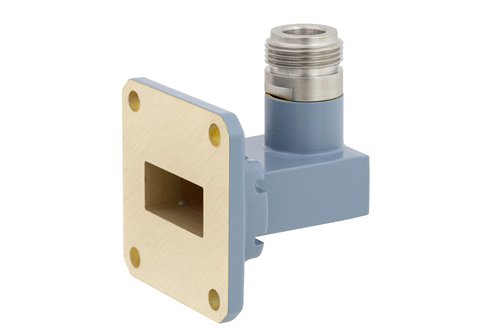

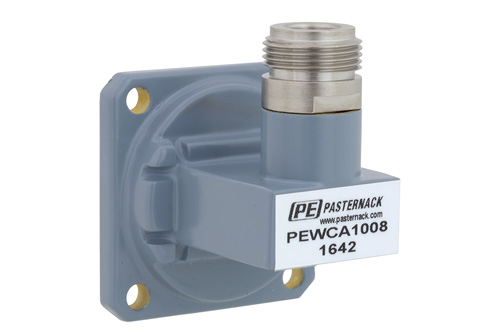

WR-90 UG-39/U Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PEWCA1008

WR-90

8.2 - 12.4

1.25:1

UG-39/U
Square Cover

N

Female

EAR99

  • descrWR-90 UG-39/U Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 UG-39/U Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

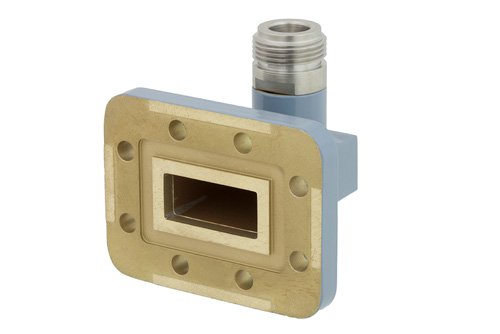

WR-90 CPR-90G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band   PEWCA1009

WR-90

8.2 - 12.4

1.25:1

CPR-90G

N

Female

EAR99

  • descrWR-90 CPR-90G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band
  • descrWR-90 CPR-90G Grooved Flange to N Female Waveguide to Coax Adapter Operating From 8.2 GHz to 12.4 GHz, X Band

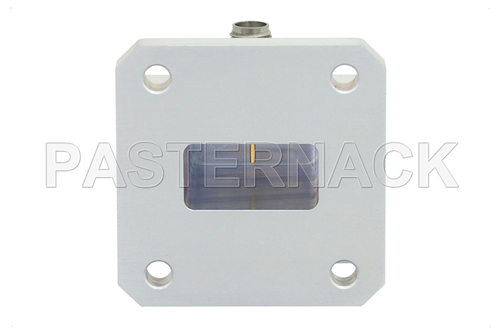

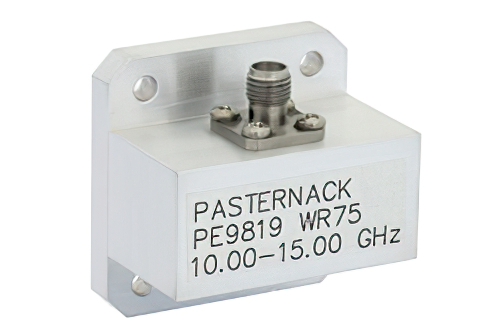

WR-75 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band   PE9819

WR-75

10 - 15

1.30:1

Square Type

SMA

Female

EAR99

  • descrWR-75 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band
  • descrWR-75 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band



WR-75 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band   PE9847

WR-75

10 - 15

1.40:1

Square Type

SMA

Female

EAR99

  • descrWR-75 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band
  • descrWR-75 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band

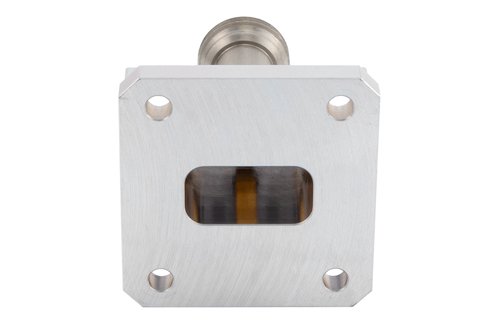

WR-75 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band   PE9867

WR-75

10 - 15

1.40:1

Square Type

N

Female

EAR99

  • descrWR-75 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band
  • descrWR-75 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band

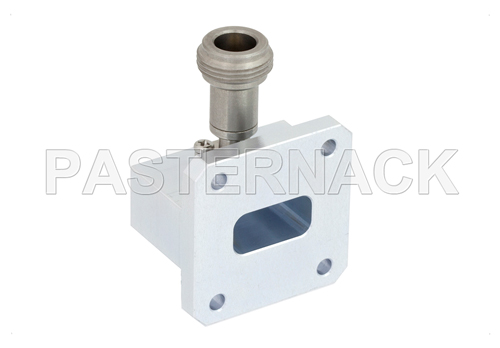

WR-75 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band   PE9874

WR-75

10 - 15

1.30:1

Square Type

N

Female

EAR99

  • descrWR-75 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band
  • descrWR-75 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, X-Ku Band

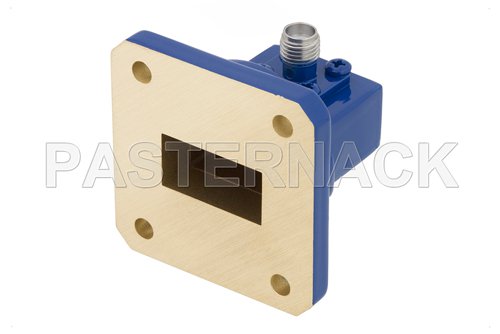

WR-75 Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, M Band   PEWCA1004

WR-75

10 - 15

1.25:1

Square Cover

SMA

Female

EAR99

  • descrWR-75 Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, M Band
  • descrWR-75 Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, M Band

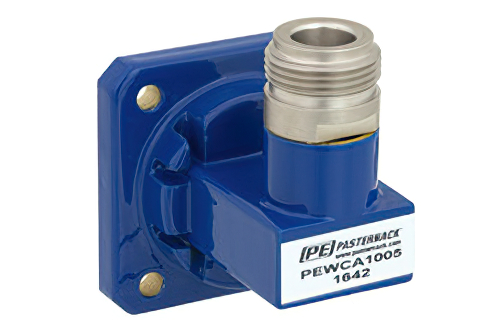

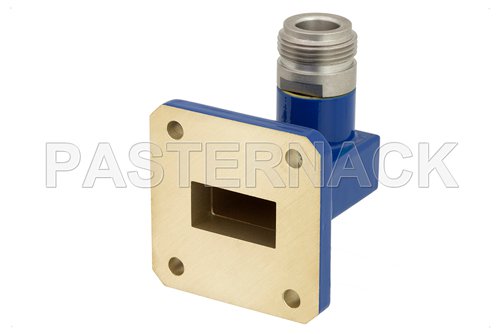

WR-75 Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, M Band   PEWCA1005

WR-75

10 - 15

1.25:1

Square Cover

N

Female

EAR99

  • descrWR-75 Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, M Band
  • descrWR-75 Square Cover Flange to N Female Waveguide to Coax Adapter Operating From 10 GHz to 15 GHz, M Band

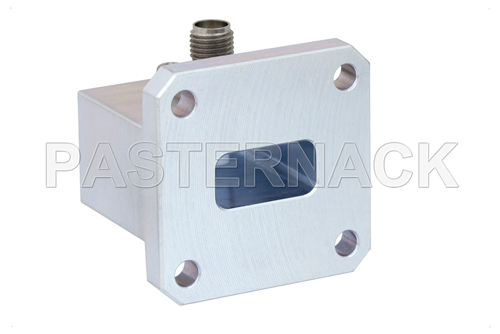

WR-62 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band   PE9803

WR-62

12.4 - 18

1.30:1

Square Type

SMA

Female

EAR99

  • descrWR-62 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band
  • descrWR-62 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band

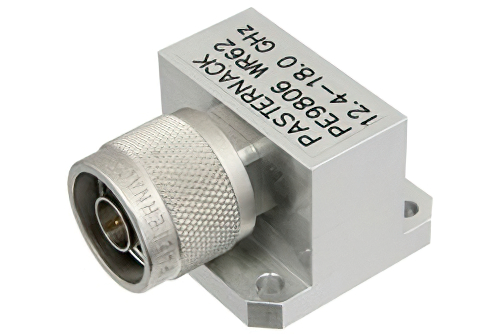

WR-62 Square Cover Flange to N Male Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz   PE9806

WR-62

12.4 - 18

1.40:1

Square Cover

N

Male

EAR99

  • descrWR-62 Square Cover Flange to N Male Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz
  • descrWR-62 Square Cover Flange to N Male Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz



WR-62 UG-1665/U Square Cover Flange to SMA Male Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band   PE9809

WR-62

12.4 - 18

1.20:1

UG-1665/U
Square Cover

SMA

Male

EAR99

  • descrWR-62 UG-1665/U Square Cover Flange to SMA Male Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band
  • descrWR-62 UG-1665/U Square Cover Flange to SMA Male Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band

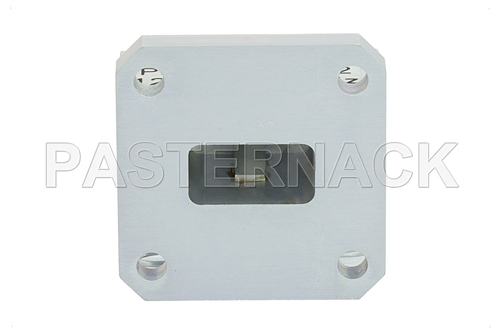

WR-62 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band   PE9846

WR-62

12.4 - 18

1.40:1

Square Type

SMA

Female

EAR99

  • descrWR-62 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band
  • descrWR-62 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band

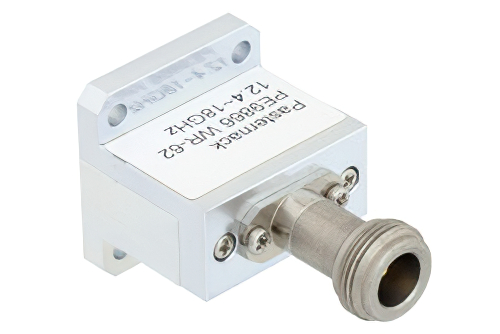

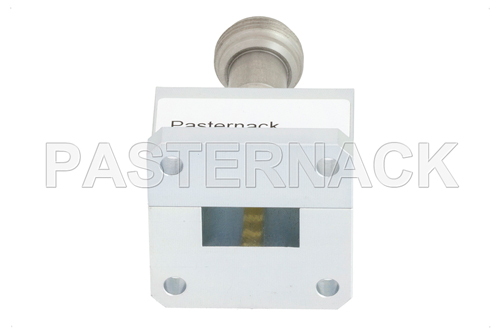

WR-62 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band   PE9866

WR-62

12.4 - 18

1.40:1

Square Type

N

Female

EAR99

  • descrWR-62 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band
  • descrWR-62 Square Type Flange to End Launch N Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band



WR-62 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band   PE9875

WR-62

12.4 - 18

1.40:1

Square Type

N

Female

EAR99

  • descrWR-62 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band
  • descrWR-62 Square Type Flange to N Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band



WR-62 UG-1665/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band   PEWCA1003

WR-62

12.4 - 18

1.25:1

UG-1665/U
Square Cover

SMA

Female

EAR99

  • descrWR-62 UG-1665/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band
  • descrWR-62 UG-1665/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 12.4 GHz to 18 GHz, Ku Band



Waveguide to Coax Adapter Series for X-band through Ku-band

Pasternack’s X band through Ku band waveguide to coax adapter series is available with SMA, N-Type and 7mm connections. These waveguide to coax adapter components feature VSWR as low as 1.20:1. Our coax to waveguide adapters support frequency ranges of 8.2 GHz to 18 GHz.

Typical applications for these X-band through Ku-band waveguide to coaxial adapters include instrumentation, test benches, high efficiency RF/Microwave transmission, SATCOM, MILCOM, radar and telecom. As with the Pasternack other over 40,000 RF, microwave and millimeter wave components, this X-band through Ku-band waveguide to coaxial adapter series is in stock and ships the same-day.
