  • Waveguide to coax adapter series is available with 2.92mm and SMA connections
  • Frequency range from 18 GHz to 40 GHz, K-band to Ka-band
  • Coaxial to waveguide adapter VSWR as low as 1.25:1
  • Waveguide UG Style flanges



Adapters for waveguide to coax are in stock and ready for same-day shipping!

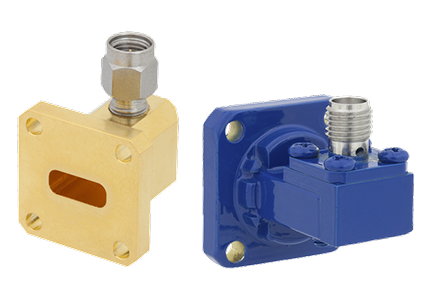

K Band Through Ka Band Waveguide-to-Coax Adapters

Part No.

Waveguide
Type

Frequency
Range
(GHz)

VSWR

Flange
Type

Connector
Type

Connector
Gender

ECCN

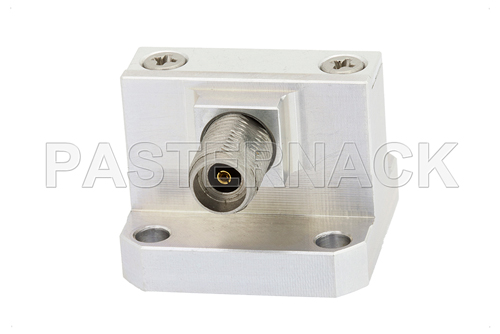

WR-42 Square Type Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band   PE9812

WR-42

18 - 26.5

1.40:1

Square Type

2.92mm

Female

EAR99

  • descrWR-42 Square Type Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band
  • descrWR-42 Square Type Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band



WR-42 UG-595/U Square Cover Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz   PE9813A

WR-42

18 - 26.5

1.40:1

Square Type

2.92mm

Male

EAR99

  • descrWR-42 UG-595/U Square Cover Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz
  • descrWR-42 UG-595/U Square Cover Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz

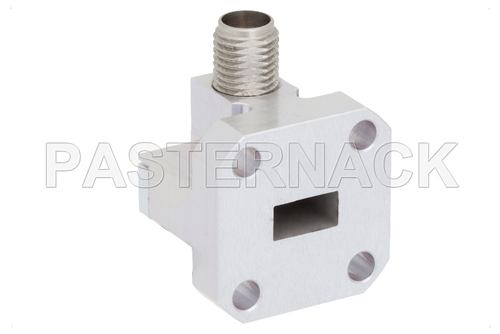

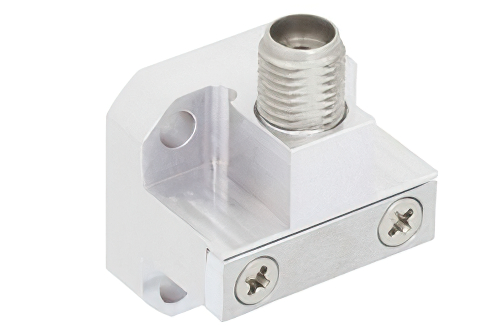

WR-28 Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band   PE9826

WR-28

26.5 - 40

1.40:1

Square Cover

2.92mm

Female

EAR99

  • descrWR-28 Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band
  • descrWR-28 Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band

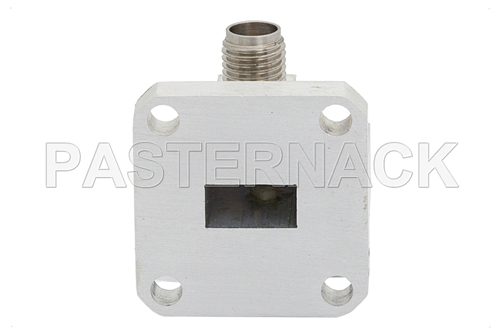

WR-34 Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 22 GHz to 33 GHz, K-Ka Band   PE9827

WR-34

22 - 33

1.40:1

Square Cover

2.92mm

Female

EAR99

  • descrWR-34 Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 22 GHz to 33 GHz, K-Ka Band
  • descrWR-34 Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 22 GHz to 33 GHz, K-Ka Band

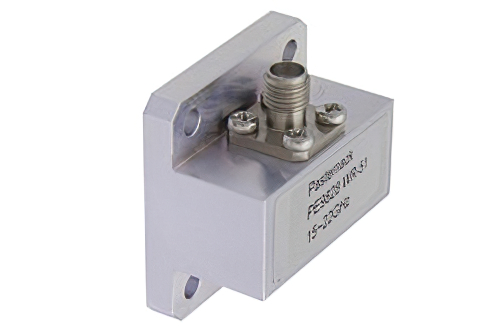

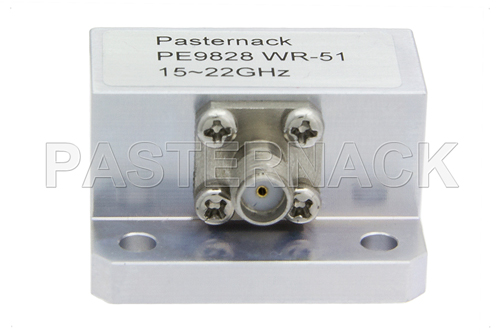

WR-51 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 15 GHz to 22 GHz, Ku-K Band   PE9828

WR-51

15 - 22

1.30:1

Square Type

SMA

Female

EAR99

  • descrWR-51 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 15 GHz to 22 GHz, Ku-K Band
  • descrWR-51 Square Type Flange to SMA Female Waveguide to Coax Adapter Operating From 15 GHz to 22 GHz, Ku-K Band

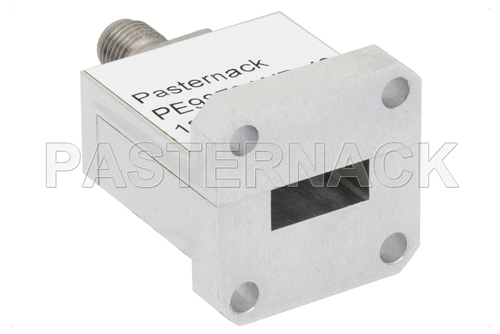

WR-42 Square Cover Flange to End Launch 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band   PE9878

WR-42

18 - 26.5

1.40:1

Square Cover

2.92mm

Female

EAR99

  • descrWR-42 Square Cover Flange to End Launch 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band
  • descrWR-42 Square Cover Flange to End Launch 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band

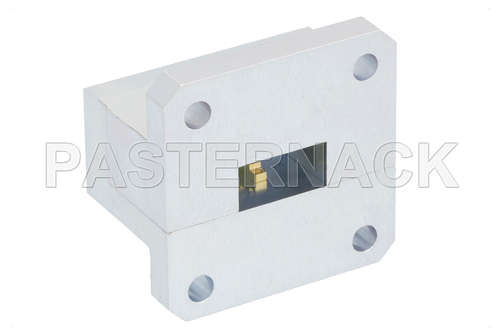

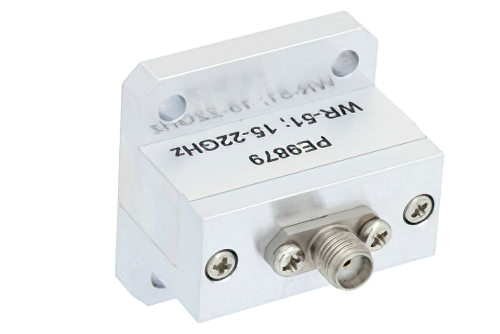

WR-51 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 15 GHz to 22 GHz   PE9879

WR-51

15 - 22

1.30:1

Square Type

SMA

Female

EAR99

  • descrWR-51 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 15 GHz to 22 GHz
  • descrWR-51 Square Type Flange to End Launch SMA Female Waveguide to Coax Adapter Operating From 15 GHz to 22 GHz



WR-28 UG-599/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band   PE-W28CA001

WR-28

26.5 - 40

1.29:1

UG-599/U
Square Cover

2.92mm

Female

EAR99

  • descrWR-28 UG-599/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band
  • descrWR-28 UG-599/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band



WR-28 UG-599/U Square Cover Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band   PE-W28CA002

WR-28

8.2 - 12.4

1.29:1

Square Type

2.92mm

Male

EAR99

  • descrWR-28 UG-599/U Square Cover Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band
  • descrWR-28 UG-599/U Square Cover Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band



WR-42 UG-595/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band   PE-W42CA001

WR-42

8.2 - 12.4

1.29:1

Square Type

2.92mm

Female

EAR99

  • descrWR-42 UG-595/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band
  • descrWR-42 UG-595/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band



WR-42 UG-595/U Square Cover Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band   PE-W42CA002

WR-42

8.2 - 12.4

1.29:1

Square Type

2.92mm

Male

EAR99

  • descrWR-42 UG-595/U Square Cover Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band
  • descrWR-42 UG-595/U Square Cover Flange to 2.92mm Male Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band

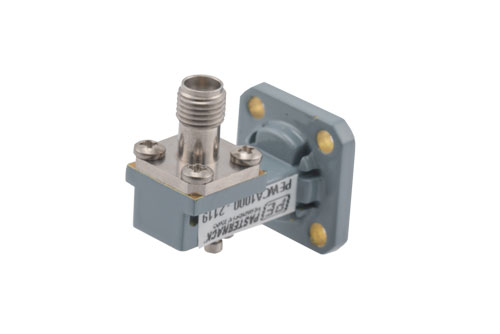

WR-28 UG-599/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band   PEWCA1000

WR-28

26.5 - 40

1.30:1

UG-599/U
Square Cover

2.92mm

Female

EAR99

  • descrWR-28 UG-599/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band
  • descrWR-28 UG-599/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 26.5 GHz to 40 GHz, Ka Band



WR-34 UG-1530/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 22 GHz to 33 GHz   PEWCA1001

WR-34

22 - 33

1.25:1

UG-1530/U Square Cover

2.92mm

Female

EAR99

  • descrWR-34 UG-1530/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 22 GHz to 33 GHz
  • descrWR-34 UG-1530/U Square Cover Flange to 2.92mm Female Waveguide to Coax Adapter Operating From 22 GHz to 33 GHz

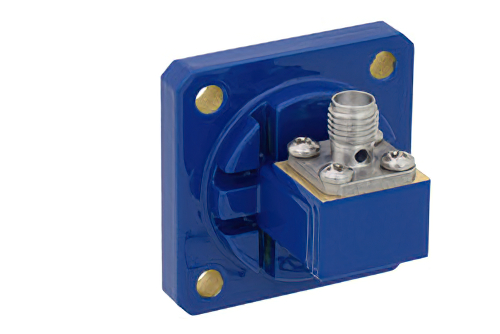

WR-51 Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 15 GHz to 22 GHz, N Band   PEWCA1002

WR-51

15 - 22

1.25:1

Square Cover

SMA

Female

EAR99

  • descrWR-51 Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 15 GHz to 22 GHz, N Band
  • descrWR-51 Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 15 GHz to 22 GHz, N Band

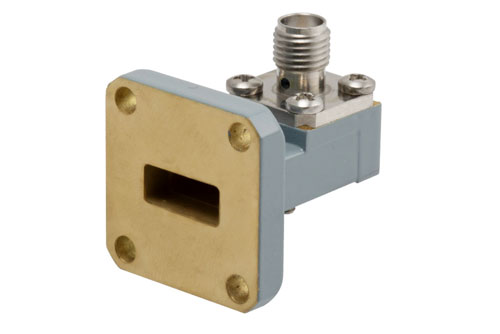

WR-42 UG-595/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band   PEWCA1018

WR-42

18 - 26.5

1.25:1

UG-595/U
Square Cover

SMA

Female

EAR99

  • descrWR-42 UG-595/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band
  • descrWR-42 UG-595/U Square Cover Flange to SMA Female Waveguide to Coax Adapter Operating From 18 GHz to 26.5 GHz, K Band



Waveguide to Coax Adapter Series for K-band through Ka-band

Pasternack’s X band through Ka band waveguide to coax adapter series is available with SMA and 2.92mm style connections. These waveguide to coaxial adapter components feature VSWR as low as 1.25:1. Coax to waveguide adapters support frequency ranges of 18 GHz to 40 GHz.

Typical applications for these X-band through Ka-band waveguide to coax adapters include instrumentation, test benches, high efficiency RF/Microwave transmission, SATCOM, MILCOM, radar and telecom. As with the other over 40,000 Pasternack RF, microwave and millimeter wave components, this K-band through Ka-band waveguide to coax adapter series is in stock and will ship the same-day.
