- Frequencies covering UHF / VHF / L / S / C bands.
- High gain models exhibit high dynamic range
- Saturated output power levels as high as +50 dBm
- High IP3 linearity, as high as +60 dBm
- 50 Ohm hybrid MIC designs use GaN, GaAs, or LDMOS transistor technology for high efficiency
- All models have Single Voltage supplies which are internally regulated
- Guaranteed operating performance over temperature
- Amplifier circuits are enclosed in environmentally sealed metal packages with SMA connectors, designed for rugged environments which include exposure to Humidity, Altitude, Shock, and Vibration
All in-stock and available to
ship today!
Pasternack's broad Line of
High Power Amplifiers
RF Amplifiers Selection
Click a category for more details
Additional Amplifier Families
Part No.
Frequency Band
(GHz)
Gain
(dB)
Gain
Variation
+/-(dB)
P1dB
(dBm)
P1dB
(Watts)
Psat
(dBm)
IP3
(dBm)
DC Power
(Volts/mA)
"Mechanical Dimensions
L(in) x W(in) x H(in)"
Connector
Type
ECCN
 |
 |

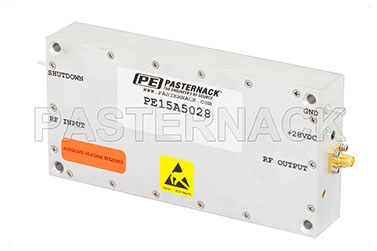

PE15A5028 | 0.0015 - 0.230 |
43 |
1.5 |
41.8 |
15 |
44 |
48 |
28/5000 |
5.95 x 2.95 x 1.06 |
SMA |
EAR99 |
 |
|||||||||||||

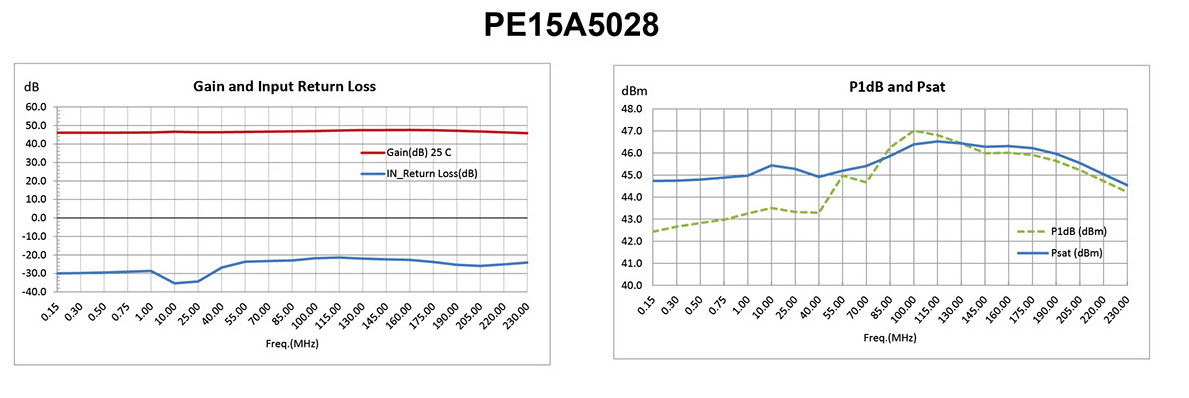

PE15A5028 Typical Performance Data
x
 |
|

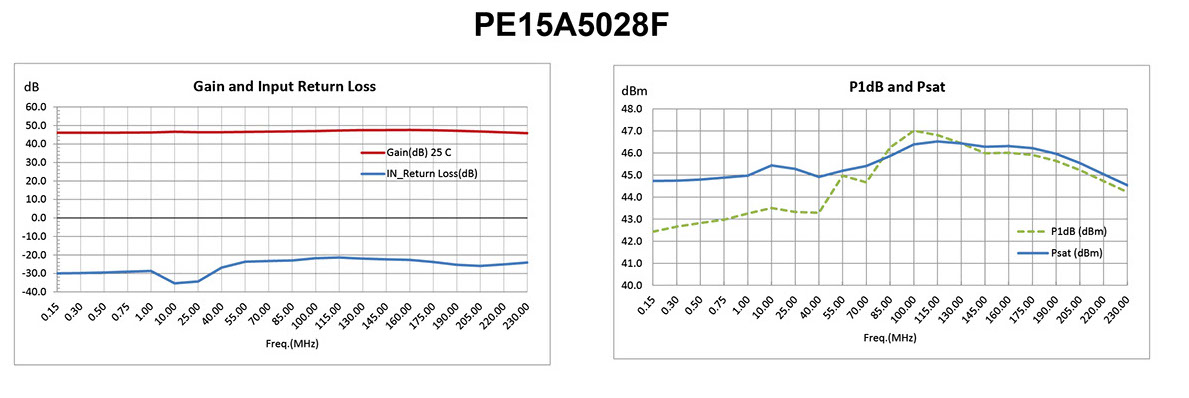

PE15A5028F | 0.0015 - 0.230 |
43 |
1.5 |
41.8 |
15 |
44 |
48 |
28/6000 |
8.5 x 5.25 x 3.5 |
SMA |
EAR99 |
|
|||||||||||||
PE15A5028F Typical Performance Data
x
 |
|

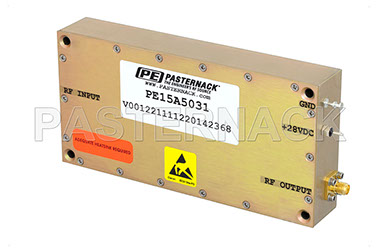

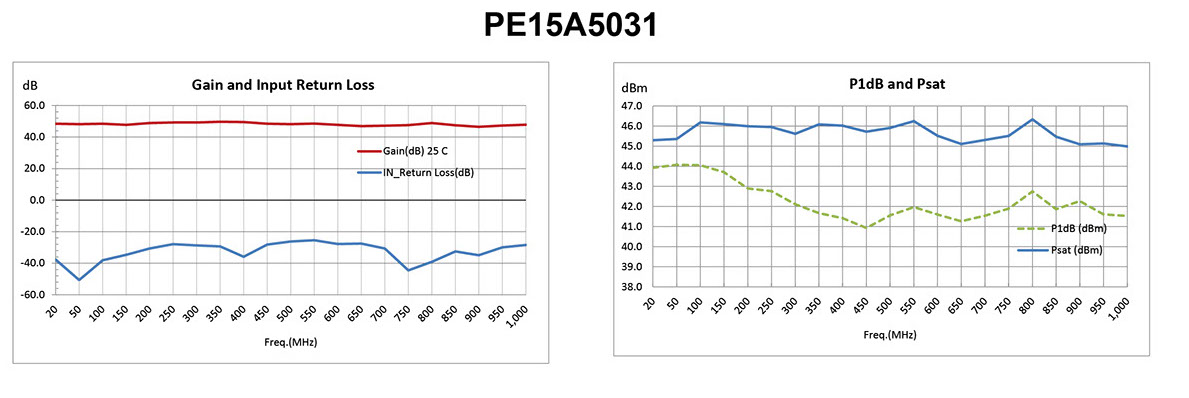

PE15A5031 | 0.020 - 1.0 |
46 |
1.5 |
40 |
10 |
44 |
48 |
28/5200 |
5.95 x 2.95 x 1.06 |
SMA |
EAR99 |
|
|||||||||||||
PE15A5031 Typical Performance Data
x
 |
|

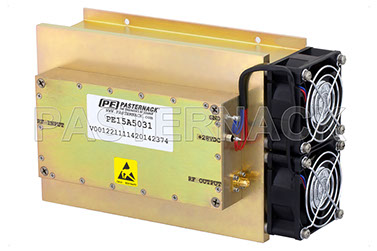

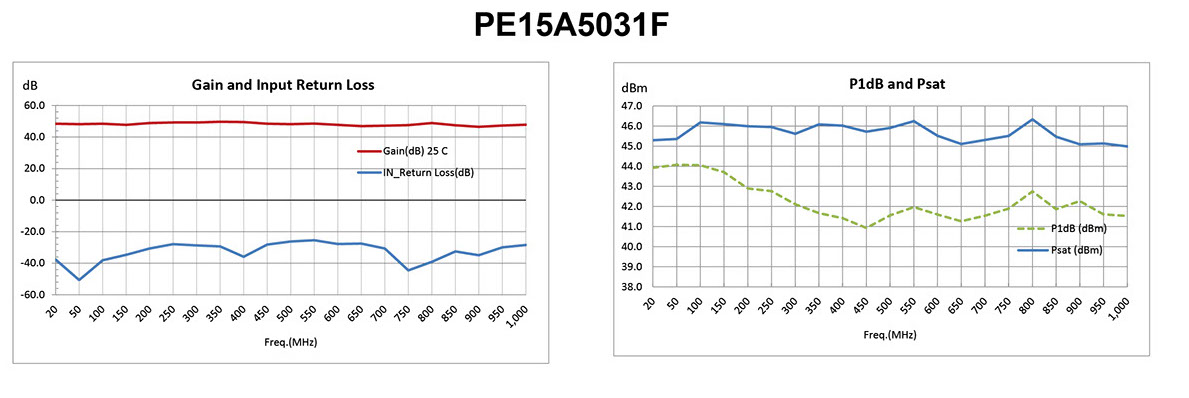

PE15A5031F | 0.020 - 1.0 |
46 |
1.5 |
40 |
10 |
44 |
48 |
28/5800 |
8.7 x 5.2 x 3.5 |
SMA |
EAR99 |
|
|||||||||||||
PE15A5031F Typical Performance Data
x
 |
|

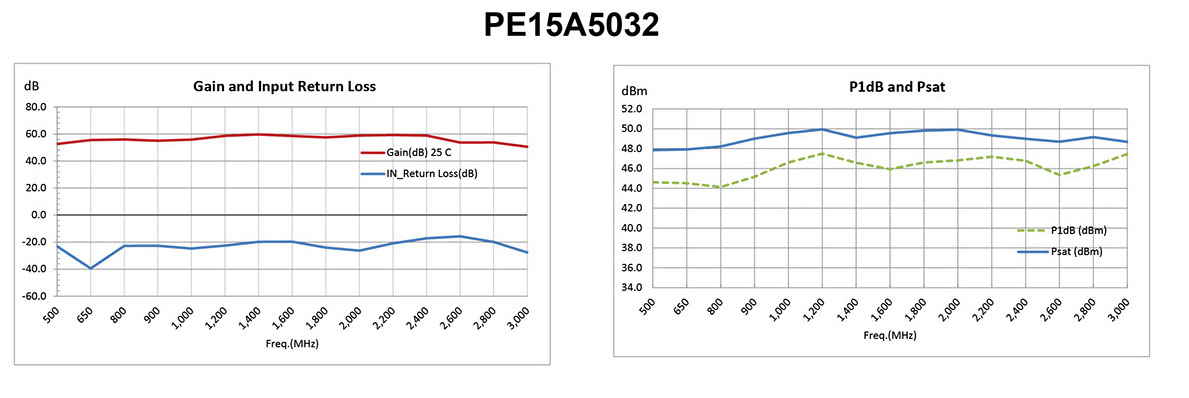

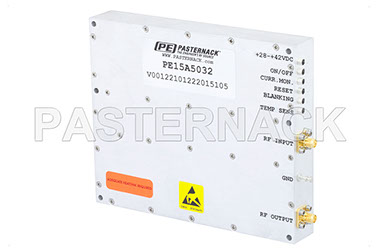

PE15A5032 | 0.50-3.0 |
48 |
2 |
44 |
25 |
47 |
52 |
42/7200 |
6.0 x 5.0 x 1.1 |
SMA |
EAR99 |
|
|||||||||||||
PE15A5032 Typical Performance Data
x
 |
|

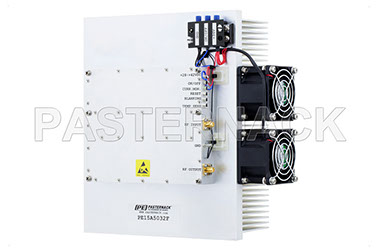

PE15A5032F | 0.50-3.0 |
48 |
2 |
44 |
25 |
47 |
52 |
42/7200 |
10.5 X 6.1 X 4.5 |
SMA |
EAR99 |
|
|||||||||||||

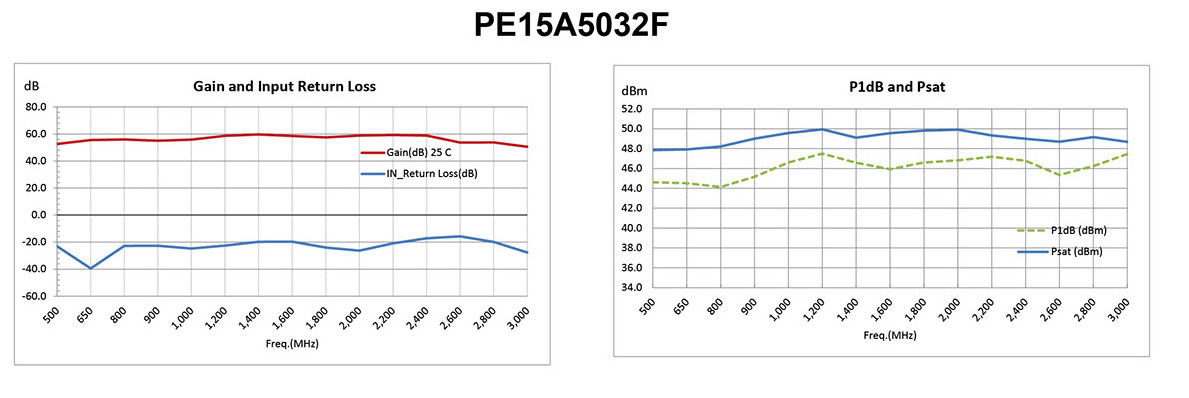

PE15A5032F Typical Performance Data
x
 |
|

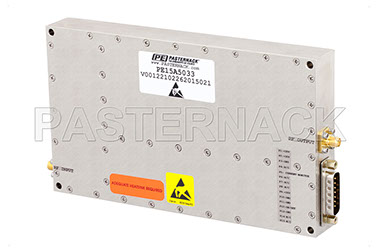

PE15A5033 | 0.70-2.7 |
45 |
1.5 |
50 |
30 |
7.25 x 4.25 x 1.25 |
SMA |
EAR99 |
|||
|
|||||||||||||

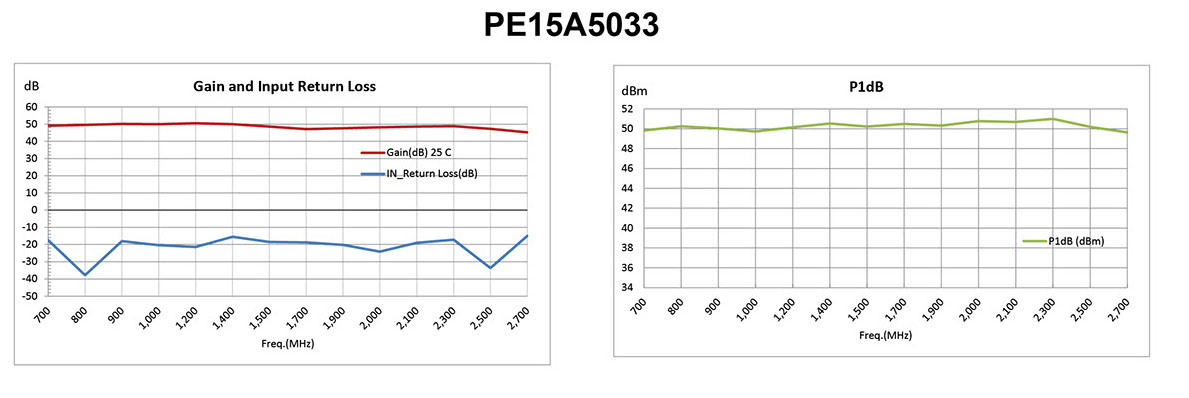

PE15A5033 Typical Performance Data
x
 |
|

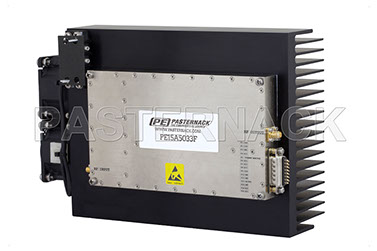

PE15A5033F | 0.70-2.7 |
45 |
1.5 |
50 |
30 |
10.75 x 7.0 x 3.75 |
SMA |
EAR99 |
|||
|
|||||||||||||
PE15A5033F Typical Performance Data
x
 |
|

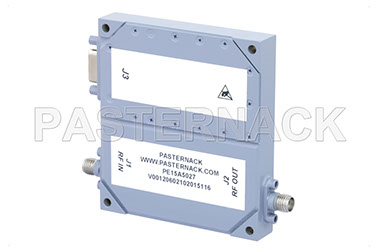

PE15A5027 | 0.1 - 6.0 |
60 |
1.25 |
40 |
28/2200 |
2.5 x 2.75 x 0.45 |
SMA |
EAR99 |
|||
|
|||||||||||||

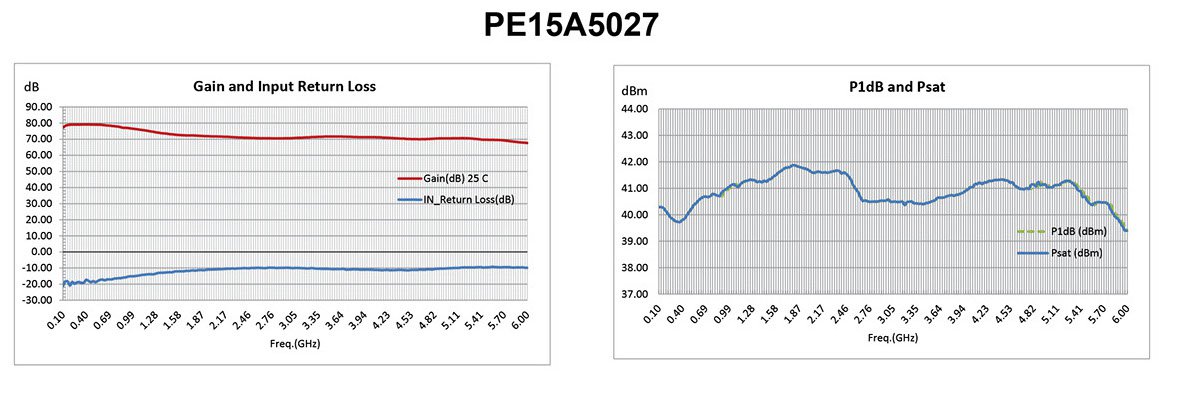

PE15A5027 Typical Performance Data
x
 |
|

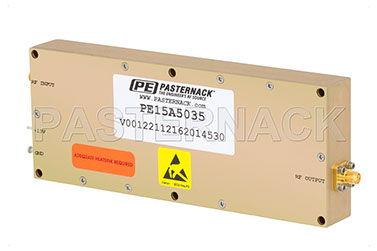

PE15A5035 | 0.8 - 2.0 |
41 |
1.5 |
40 |
10 |
40.8 |
50 |
13/5000 |
6.8 x 2.7 x 1.0 |
SMA |
EAR99 |
|
|||||||||||||

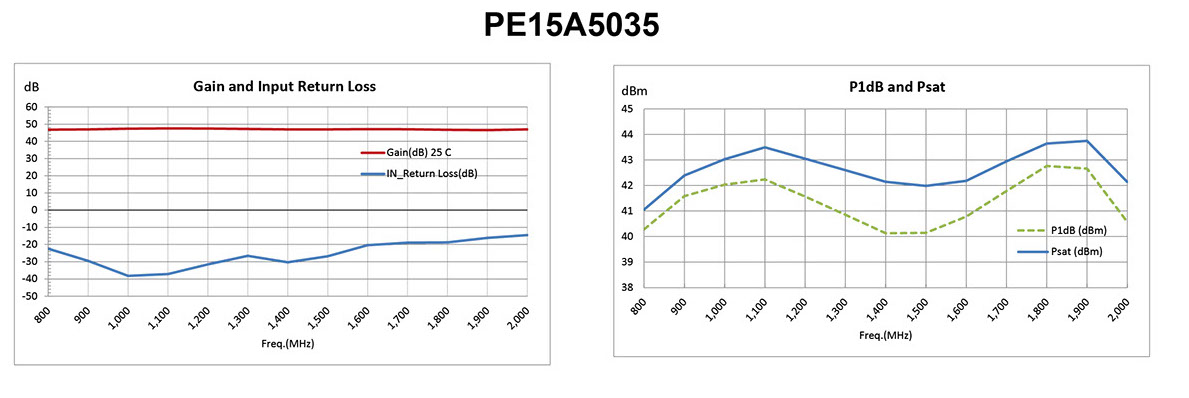

PE15A5035 Typical Performance Data
x
 |
|

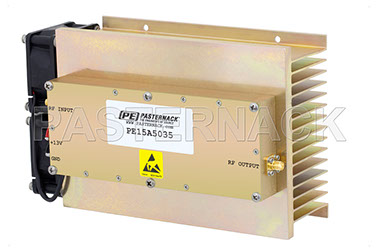

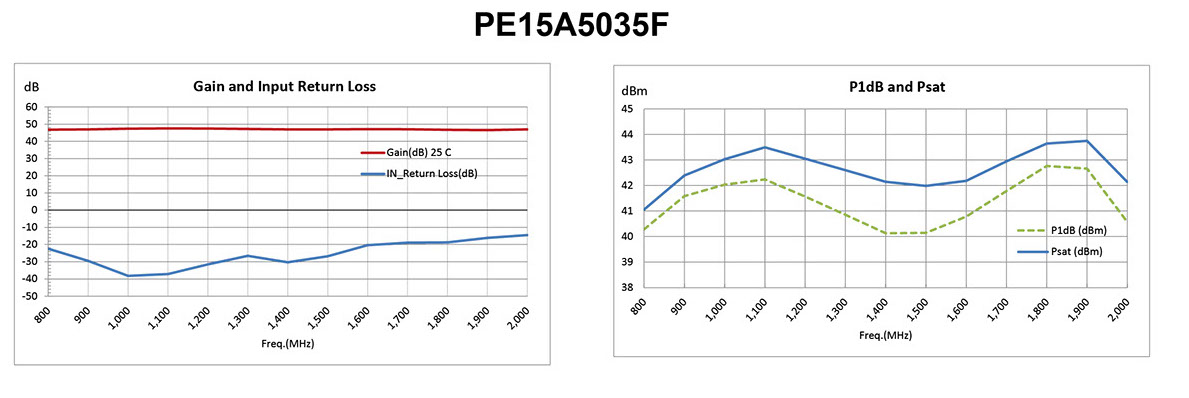

PE15A5035F | 0.8 - 2.0 |
41 |
1.5 |
40 |
10 |
40.8 |
50 |
13/5500 |
8.7 x 5.2 x 3.5 |
SMA |
EAR99 |
|
|||||||||||||
PE15A5035F Typical Performance Data
x
 |
|

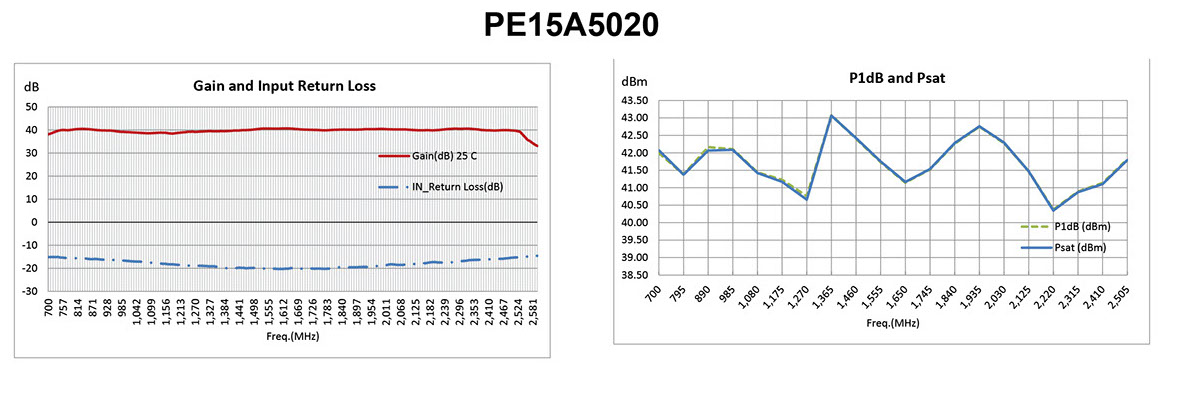

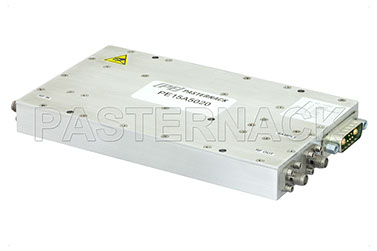

PE15A5020 | 0.8 - 2.5 |
40 |
1.5 |
42 |
16 |
50 |
12/6000 |
3.75 x 1.75 x 1.06 |
SMA |
EAR99 |
|
|
|||||||||||||
PE15A5020 Typical Performance Data
x
 |
|

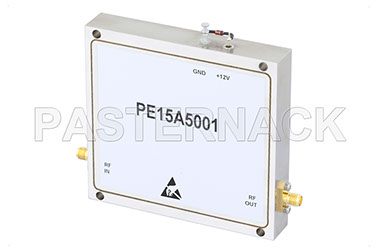

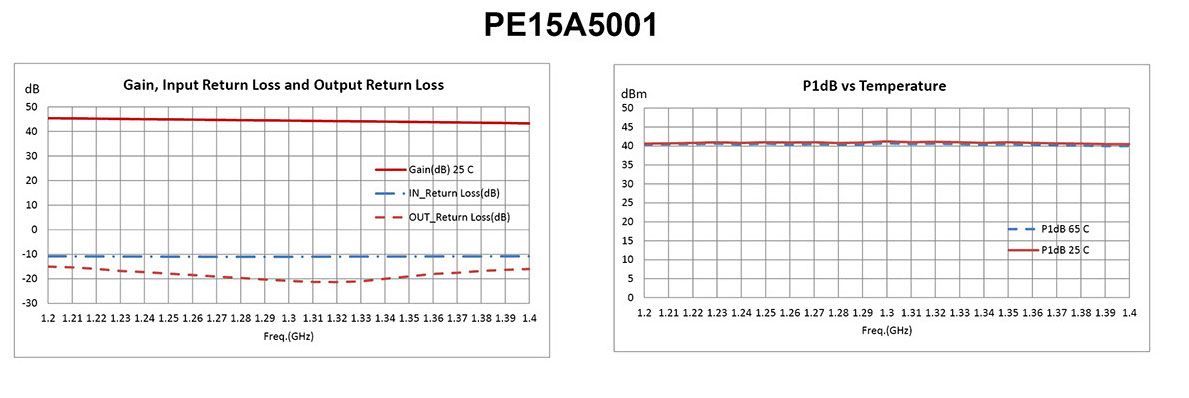

PE15A5001 | 1.2 - 1.4 |
40 |
40 |
10 |
12/4000 |
3.97 x 3.64 x 0.67 |
SMA |
EAR99 |
|||
|
|||||||||||||
PE15A5001 Typical Performance Data
x
 |
|

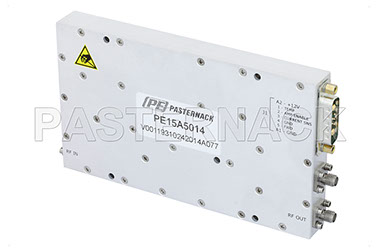

PE15A5014 | 1.7 - 2.2 |
50 |
0.5 |
43 |
20 |
60 |
12/6000 |
6.0 x 3.5 x 0.693 |
SMA |
EAR99 |
|
|
|||||||||||||
PE15A5014 Typical Performance Data
x
 |
|

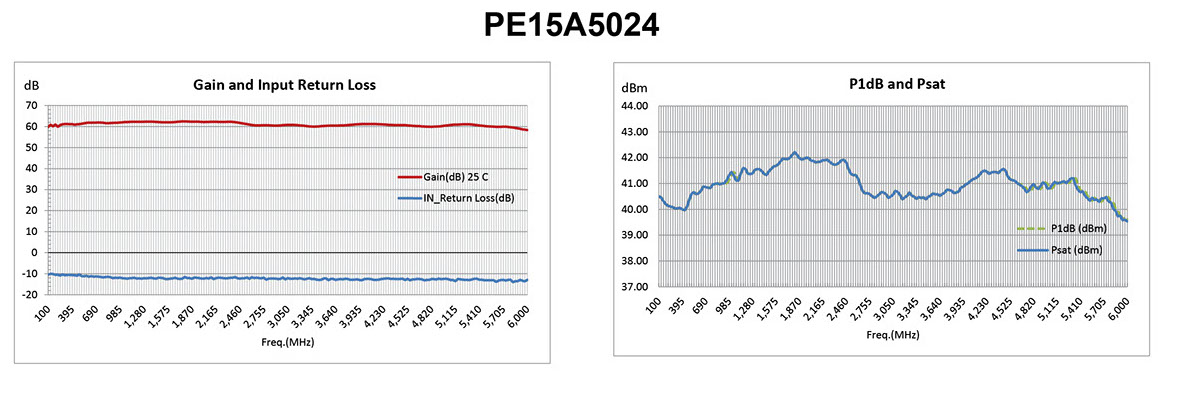

PE15A5024 | 2.0 - 6.0 |
50 |
1.25 |
43 |
28/3000 |
2.5 x 2.75 x 0.45 |
SMA |
EAR99 |
|||
|
|||||||||||||
PE15A5024 Typical Performance Data
x
 |
|

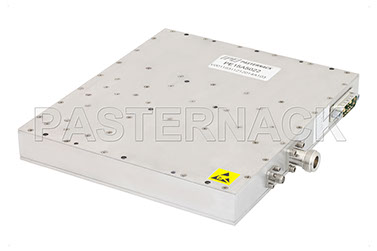

PE15A5022 | 2.2 - 2.7 |
50 |
1.5 |
47 |
50 |
49 |
28/11000 |
7.7 x 6.7 x 0.985 |
SMA |
EAR99 |
|
|
|||||||||||||

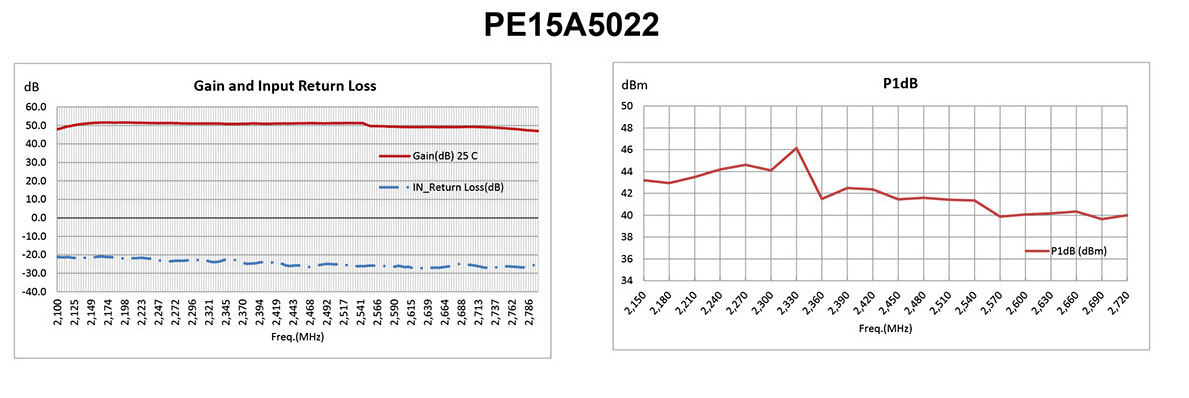

PE15A5022 Typical Performance Data
x
 |
|

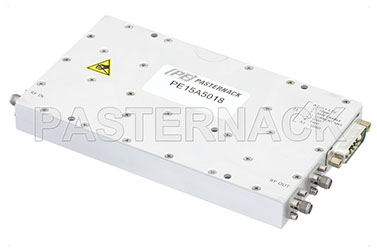

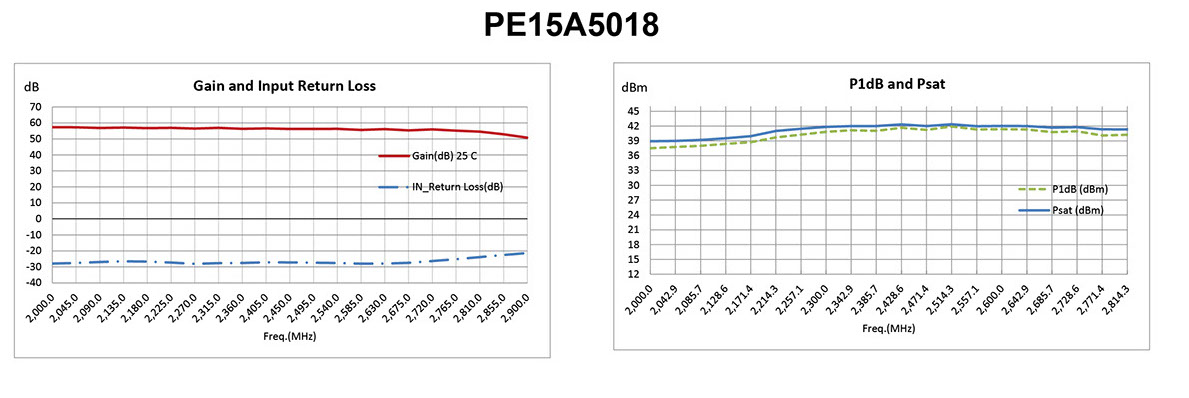

PE15A5018 | 2.3 - 2.7 |
50 |
0.5 |
43 |
20 |
12/6000 |
6.0 x 3.5 x 0.69 |
SMA |
EAR99 |
||
|
|||||||||||||
PE15A5018 Typical Performance Data
x
 |
|

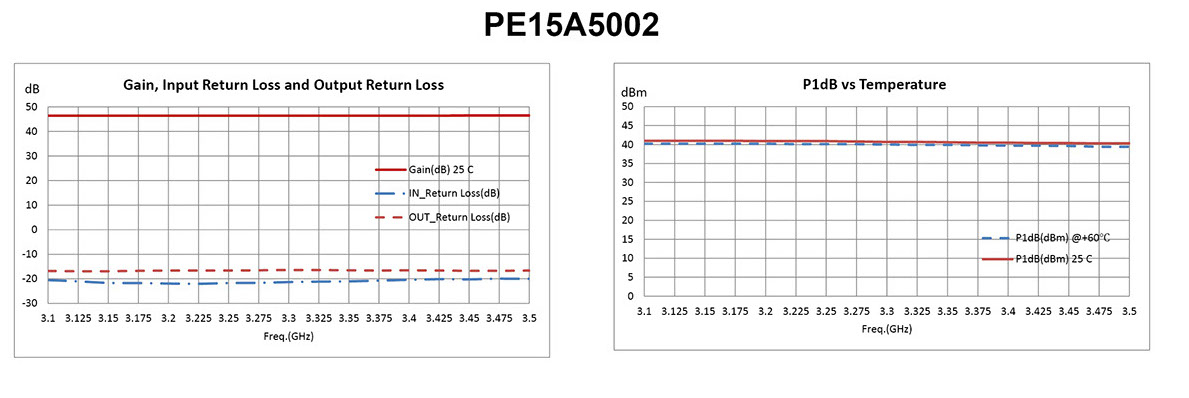

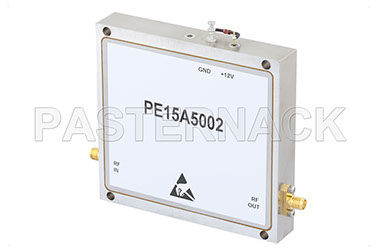

PE15A5002 | 3.1 - 3.5 |
45 |
1.5 |
40 |
15/5000 |
3.97 x 3.64 x 0.67 |
SMA |
EAR99 |
|||
|
|||||||||||||
PE15A5002 Typical Performance Data
x
 |
|
PE15A5003 | 3.1 - 3.5 |
47 |
1.5 |
43 |
20 |
12/9000 |
8.0 x 2.84 x 0.63 |
SMA |
EAR99 |
||
|
|||||||||||||

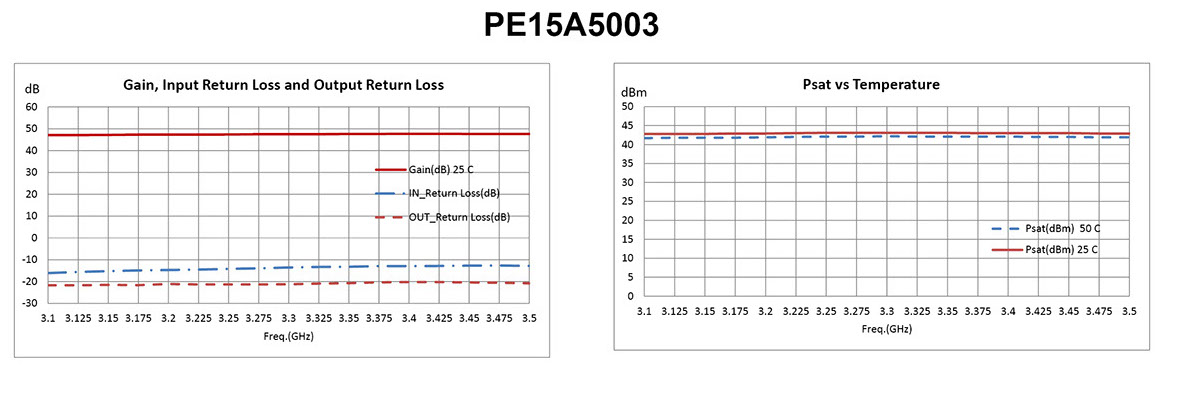

PE15A5003 Typical Performance Data
x
 |
|

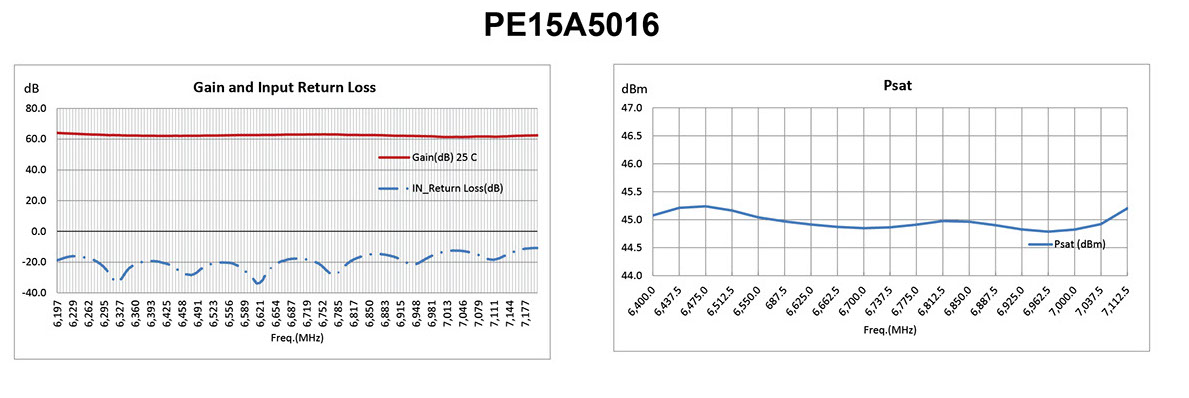

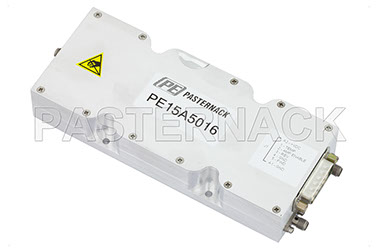

PE15A5016 | 6.4 - 7.1 |
58 |
2 |
43 |
20 |
28/750 |
6.0 x 2.5 x 1.06 |
SMA |
3A001.b.4 |
||
|
|||||||||||||
PE15A5016 Typical Performance Data
x
 |
|

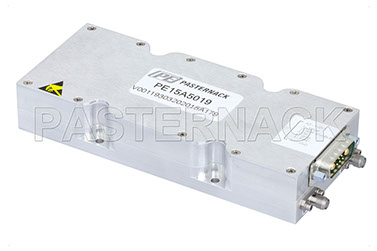

PE15A5019 | 7.2 - 7.5 |
58 |
2 |
41.8 |
28/2300 |
6.0 x 2.5 x 1.06 |
SMA |
3A001.b.4 |
|||
|
|||||||||||||

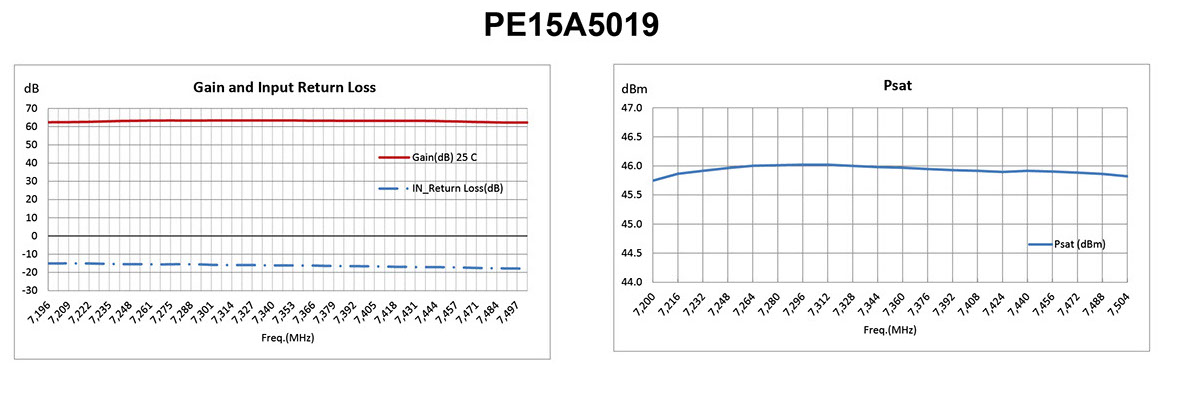

PE15A5019 Typical Performance Data
x
High Power Amplifiers from Pasternack
Our line solid state power amplifiers cover UHF, VHF, L, S and C frequency bands and are widely employed in applications such as electronic warfare, instrumentation, military communications, radar, SATCOM, telecom, data links, medical devices and many others.
These high performance RF amplifiers boast output power levels greater than 10 watts that cover broadband frequencies from 150 kHz to 7500 MHz. Solid state 50 ohm hybrid MIC designs use GaN, GaAs or LDMOS transistor technology that offers high dynamic range and allows gain levels ranging from 40 to 60 dB. The typical gain variation of these amplifiers is ±1.5 dB. Some amplifier models have output P1dB levels ranging from +10 to +50 watts, while some devices have output saturated power levels (Psat) ranging from +40 to +50 dBm. Each SSPA from Pasternack is classified as EAR99.
RF Amplifiers Selection
Click a category for more details
For a complete list of Pasternack's products please click here
