Ultra-Broadband Portable Bench Top Amplifiers

Ultra-broadband amp frequency response ranging from 1 GHz to 40 GHz
Up to 60 dB Small Signal Gain with high dynamic range
Output P1dB Compression Power ranges from +10 dBm to +22 dBm
Convenient broadband amplifier front panel access for the on/off switch and RF input/output connectors
AC Voltage Requirement: 115-120VAC @ 60 Hz
Operating temperature range for these bench top amps is -40°C to +85°C
Rugged bench-top package designed to meet MIL-STD-202F environmental test conditions for Humidity, Shock, Vibration, Altitude, and Temperature Cycle

All in-stock and available to ship today!

Click on the part numbers for more details

Part No. & Additional Views		Frequency Band (GHz)	Gain (dB)	Gain Variation +/-(dB)	P1dB (dBm)	NF (dB)	DC Power (Optional DC Imput)	AC Power (Voltage/ Cycle)	"Mechanical Dimensions L(in) x W(in) x H(in)"	Connector Type	ECCN

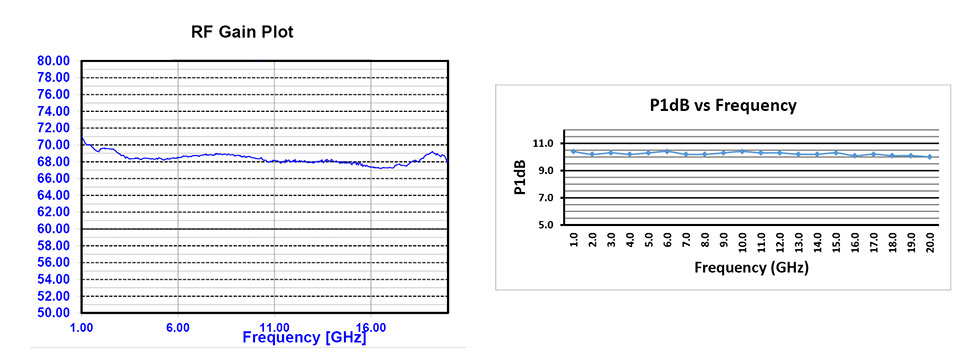

PE15A3500 Typical Performance Data	PE15A3500	1 - 20	60	3	10	5		115/60	4.92 x 4.92 x 2.1	SMA	EAR99

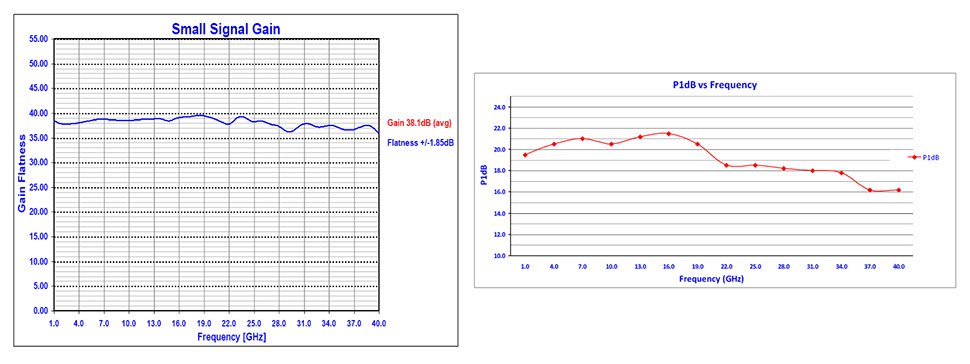

PE15A3595 Typical Performance Data	PE15A3595	1 - 40	40	2.5	22	5	12	115/60	4.92 x 4.92 x 2.1	2.92mm	EAR99

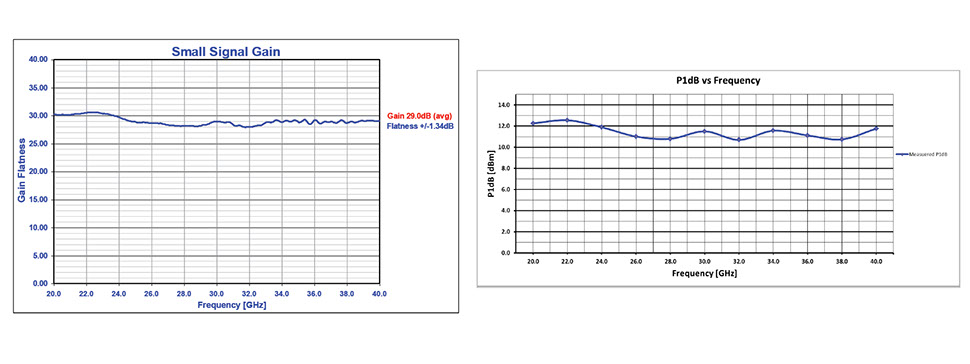

PE15A3501 Typical Performance Data	PE15A3501	20 - 40	30	2	10	5		115/60	4.92 x 4.92 x 2.1	2.92mm	EAR99

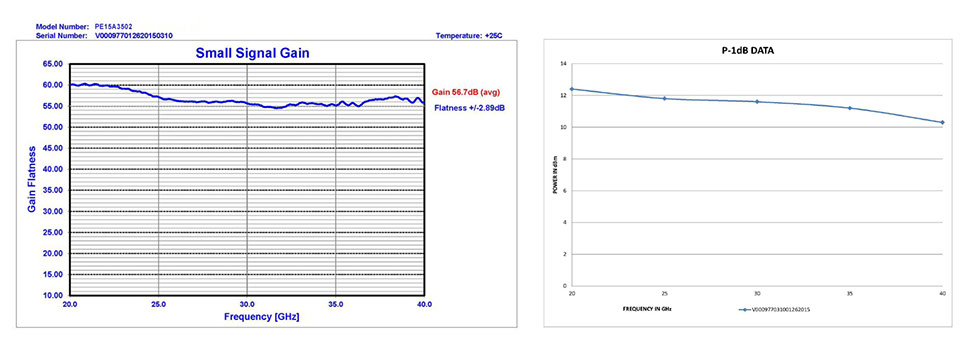

PE15A3502 Typical Performance Data	PE15A3502	20 - 40	60	3	10	5		115/60	4.92 x 4.92 x 2.1	2.92mm	EAR99

Ultra-Broadband Portable Bench Top Amplifiers

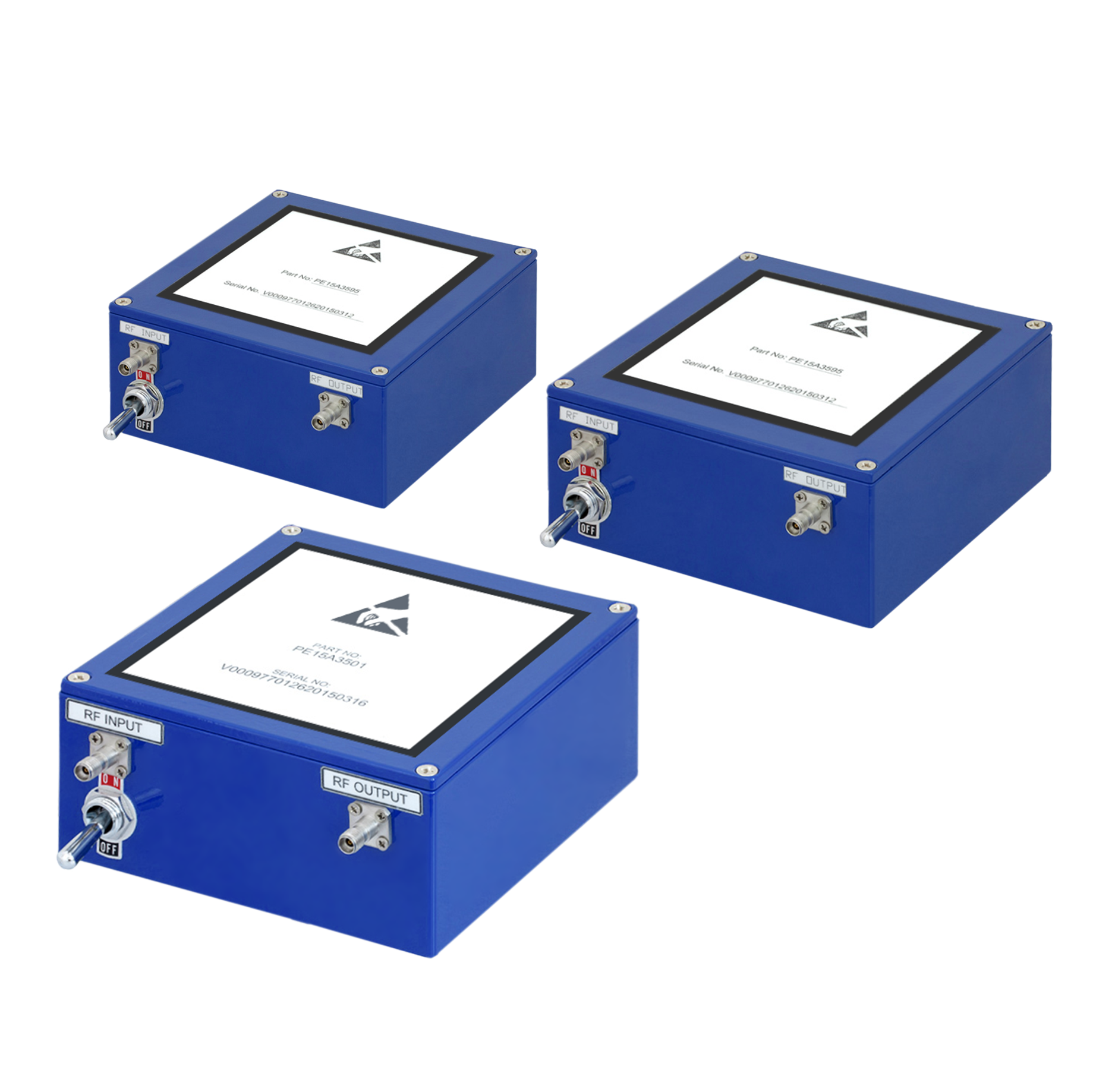

Our new lines of portable bench top amplifiers cover extremely wide frequency bands up to 40 GHz. These rugged RF amplifier modules are designed to meet MIL-STD-202F environmental test conditions for humidity, shock, vibration, altitude and temperature cycle which makes them ideal for use inside high traffic test labs in industries such as aerospace, defense, optical, industrial, telecom and R&D.

Pasternack’s latest release of amplifiers cover multi-octave bandwidths between 1 GHz to 40 GHz and exhibit flat gain response. The new bench top amplifiers offer up to 60 dB small signal gain with high dynamic range, low noise figure of 5 dB and output P1dB compression power ranges from +10 dBm to +22 dBm. Additionally, these portable and compact amplifiers have an internal AC voltage power supply of 115-120VAC @ 60 Hz, an operating temperature range -40°C to +85°C and allow a storage temperature of -40°C to +100°C. The 20 GHz modules use SMA female connectors, while the 40 GHz versions utilize 2.92mm connectors.

The new ultra-broadband portable bench top RF amplifiers from Pasternack use a single AC voltage supply with internal voltage regulation, are fuse protected, and are designed with convenient front panel access with an on/off switch and RF input/output connectors. Each unit also comes with a 6 foot power cord. No export license is required for these products.
